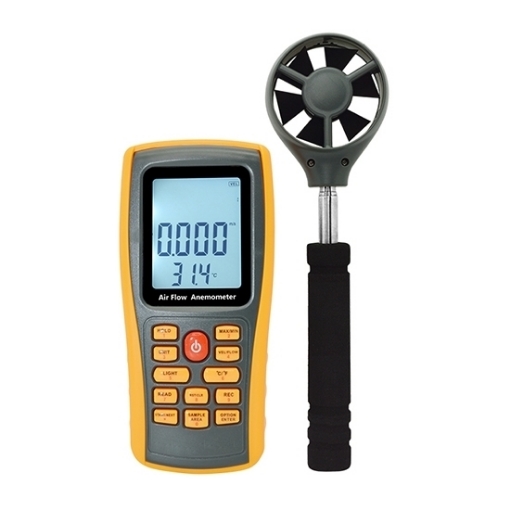

Vane anemometer for slae online. Wind speed meter provides measurement of maximum and minimum wind velocity, 2/3 Vmax and average wind flow. Digital wind gauge has data holding, storing and deleting functions, handheld anemometer can be connected to PC with USB cable.
Clever design makes it more responsive

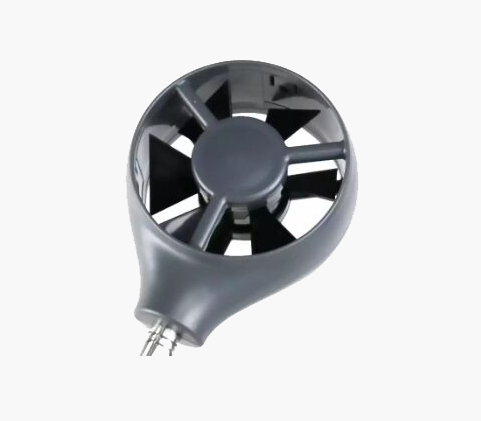

- 8 fan blades and a bearing sensor make the anemometer more responsive.
- Maximum wind speed/ minimum wind speed/ average wind speed/ current wind speed can be selected.
High-quality materials

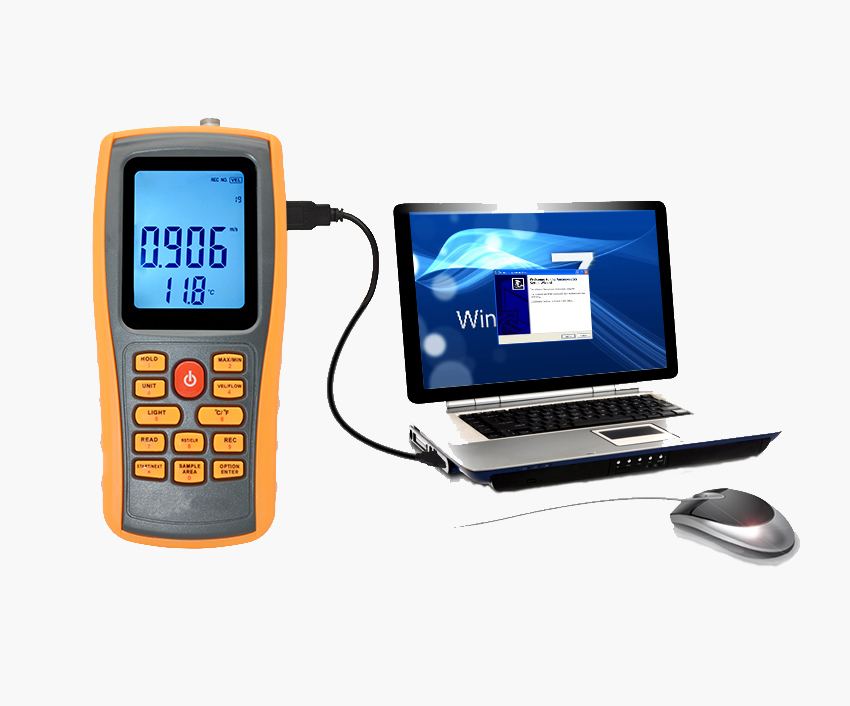

- USB design can connect to PC to manage the real time data.
- The shell is made of high-quality material which is hard texture, shockproof and shake-proof.
- 9999 counters with bar graph Color VA display screen.
Features
- The digital vane anemometer can be used in measurement of wind velocity, temperature and flow.
- The wind speed sensor provides measurement of maximum and minimum wind velocity, 2/3 Vmax and average wind flow.
- Digital wind gauge has data holding, storing and deleting functions.
- Low battery indicating function. Auto power off function (power off automatically if no further operation for 10 minutes).
- The air velocity meter supports memory of 500 records.
- Handheld anemometer can be connected to PC with USB cable.
- Audio key pressing alert. Large LCD display. Retractable drag rod.

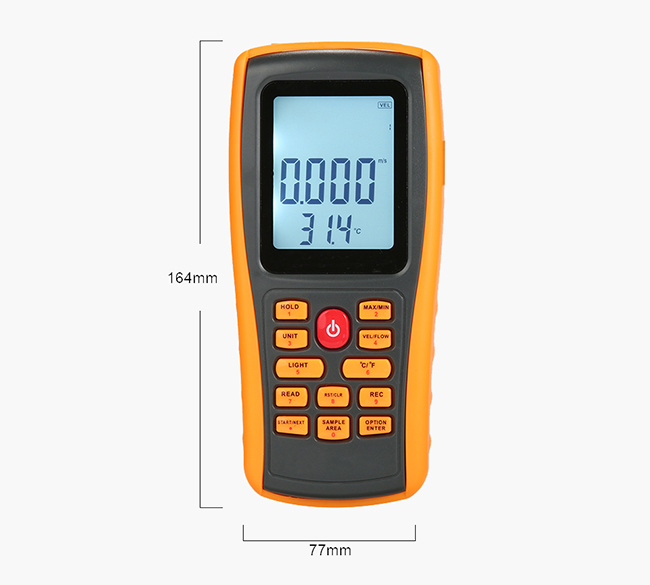

Dimension
Application
The digital anemometer can be widely used outdoors (such as riding), and for measuring wind speed and air volume. So the vane anemometer is widely applied to windsurfing, outdoor measurement, navigation survey, offshore fishing survey and electric power measurements, shooting, model plane flying, etc outdoor activities. It is also appropriate for industrial and family use, normally in conjunction with dust and fume extraction devices, heating and air conditioning systems, etc, measuring wind speed and air volume.
Specification
| Model | SISCO-GM8902+ | ||
| Measuring Specification | |||
| Item | Range | Resolution | Accuracy |
| Wind Speed* | 0.0-45.0 m/s | 0.001 | ±3% ± 0.1 m/s |
| 0.0-8800 ft/min | 0.01/0.1/1 | ±3% ± 20 ft/min | |
| 0.0-88.0 knots | 0.01/0.01 | ±3% ± 0.2 knots | |
| 0.0-140.0 km/h | 0.001 | ±3% ± 0.4 km/h | |
| 0.0-100 Mph | 0.001/0.01 | ±3% ± 0.2 Mph | |
| Item | Range | Resolution | Area |
| Wind Flow | 0-9999 CFM (FT/MIN) | 0.001-100 | 0.001-9999 |
| 0-9999 CMM (M/MIN) | 0.001-100 | 0.001-9999 | |
| Item | Range | Resolution | Accuracy |
| Air Temperature | 0~45℃ | 0.1 | ±1.0℃ |
| 32~113℉ | 0.1 | ±1.8℉ | |
| Operation Conditions | |||
| Host Temperature | 0-50℃ (32-122℉) | ||
| Fan Temperature | 0-60℃ (32-140℉) | ||
| Humidity | ≤80% RH | ||
| Storage Conditions | |||
| Temperature | -40~60℃ (-40~140℉) | ||
| Humidity | ≤ 80%RH | ||
| Power Supply | AAA 1.5V Alkaline battery * 4 | ||
| Low Battery Indicating | 4.4V ± 0.2V | ||
| Stand by Current | ≤2uA | ||
| Operating Current | ≤18mA | ||
| Dimensions | Meter: 77 x 36 x 164mm Vane: 65 x 29 x 172mm |
||
| Net Weight | 500g (Not Includes Battery ) | ||
*Note: The measuring units of wind speed can be switched.
Q1: What is digital anemometer?
A1: Digital Anemometer allows for measuring atmospheric effects, namely wind velocity, temperature, and humidity for better data analysis. It also possesses various features such as the Beaufort scale, switches between Celsius and Fahrenheit, switches between metric and imperial systems, or the battery status indicator.
Q2: How does a digital anemometer measure wind speed?
A2: On the instrument, press the unit button to view the range of measurement options and select the relevant one. Once it's showing the correct unit of measurement, it's ready to calculate the speed.
Q3: How does a digital anemometer work?
A3: The arms are attached to a vertical rod. As the wind blows, the cups rotate, making the rod spin. The stronger the wind blows, the faster the rod spins. The anemometer counts the number of rotations, or turns, which is used to calculate wind speed.
Tips: What factors can affect the accuracy of the digital vane anemometer's measurements?
- Obstructions in the Airflow: Any objects or structures near the anemometer, such as walls, ducts, or large machinery, can obstruct the airflow, causing turbulence and leading to inaccurate readings. Ensure the anemometer is placed in an open, unobstructed area for the best results.
- Angle of the Anemometer: The vane of the anemometer should be aligned directly with the wind or airflow direction. If the device is tilted or positioned at an incorrect angle, it can misinterpret the velocity, leading to incorrect measurements.
- Temperature Variations: Although some digital vane anemometers have built-in temperature compensation, extreme changes in temperature can affect the accuracy of the readings. For more reliable results, use a device that offers temperature correction features.
- Calibration: Anemometers require periodic calibration to maintain accuracy. Over time, sensor drift can occur, causing measurements to deviate. Regular calibration against a known reference source helps ensure consistent accuracy.
- Sensor Wear and Tear: The rotating vane and internal sensors can degrade with use, especially in harsh environments (e.g., dusty or corrosive atmospheres). Damaged or worn-out vanes may not rotate properly, affecting the speed readings.
