Digital crane scale with backlight LCD display which has capacity from 30kg to 500kg, Electronic crane scale 3 AAA batteries with 80 hours continuous operation time, has multi-functions of tare, zero, data hold, overload warning, low battery alarm, backlight, and automatic power off. The thickened aluminum alloy shell of the crane scale is resistant to falling and durable, and can be used for a longer time.
Engineering plastic shell
- Engineering plastics are plastics with excellent strength, impact resistance, heat resistance, hardness and aging resistance. They can usually be used as engineering structural materials instead of metals and are reliable.

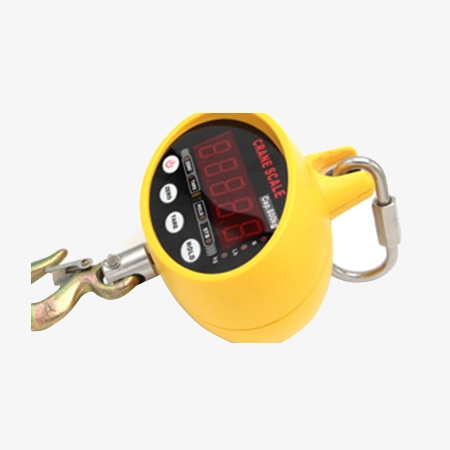

- The digital mini crane scale adopts a large digital display screen for clear reading.

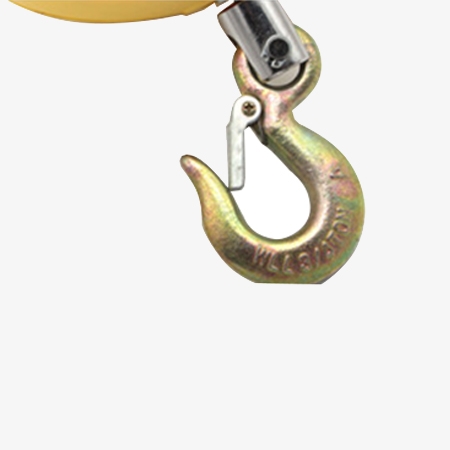

High strength hook
- The hook is strong and can easily lift weighing items.
- The 360° rotating design is convenient and practical, and the roommate bayonet prevents weighing items from slipping, making operation safer.

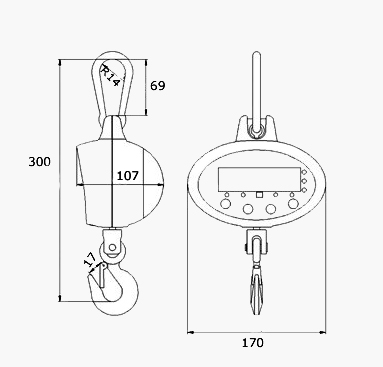

Dimension (unit=mm)
| Capacity | Dimension (mm) | ||
| A | B | C | |
| 30kg ~ 500kg | 88 | 46 | 268 |
Application
SISCO digital crane scale with simple operation and calibration is widely used in supplies warehouses, daily weighing, express shipping, parcel weighing, construction site, and port terminal.
Â
| Model | SISCO-CRS-GSP908-1 | SISCO-CRS-GSP908-2 | SISCO-CRS-GSP908-3 | SISCO-CRS-GSP908-4 | SISCO-CRS-GSP908-5 | SISCO-CRS-GSP908-6 | SISCO-CRS-GSP908-7 |
| Capacity * | 30kg | 50kg | 100kg | 150kg | 200kg | 300kg | 500kg |
| Shipping weight | 2kg | 2kg | 2kg | 2kg | 2kg | 2kg | 2kg |
| Division value | 0.01kg | 0.02kg | 0.05kg | 0.05kg | 0.1kg | 0.1kg | 0.2kg |
| Accuracy standard | According to OIML class III | ||||||
| Display | 5 digital LED display with white backlight, 20mm (0.8") font height | ||||||
| Units | Optional kg/lbs | ||||||
| Zero range | 4%F.S. | ||||||
| Tare range | 100%F.S. | ||||||
| Overload display | 100%F.S.+9e | ||||||
| Maximum safety load | 125%F.S. | ||||||
| Ultimate load | 300%F.S. | ||||||
| Material | Housing material: Aluminium alloy (powder coated), ring material: Alloy steel, s-hook material: Alloy steel | ||||||
| Battery scale | 3 AAA batteries, 1.5V * 3 | ||||||
| Battery continuous operation time | ≥80 hours (50 hours for continuous using backlight) | ||||||
| Operating temperature | -10~+40℃ (+14~+104℉) | ||||||
| Operating humidity | ≤85%RH under 20℃ (68℉) | ||||||
| Functions | Tare, zero, data hold, overload warning, low battery alarm, automatic power off | ||||||
Package included
- 1 * crane scale with detachable s-hook
- 3 * AAA batteries
- 1 * user manual
Q1: How accurate are crane scales?
A1: The crane scale has a measuring range of 0 … 1000 kg and a resolution of 0.1 kg. With an accuracy of 1% of the measuring range, the crane scale is also a precise measuring device.
Q2: What is a crane scale?
A2: A crane scale is a dynamometer/ load cell/ load links outfitted with equipment appropriate for suspended weighing, such as large openings in upper shackles, with hooks on the bottom and large dials for easy distant viewing. The inherent efficiency of the crane scale guarantees its continuing popularity.
Q3: How do I reset a small digital scale?
A3:Â First, reset the unit by pressing ON/OFF button and wait until "0.0" is shown. And then press and hold the UNITS button for 3 seconds until "CAL" is displayed.
Tips: Why should I choose a crane scale?
Crane scales are perfect for weighing heavy goods. The scale of SISCO can weigh items up to 20 tonnes in weight - which is greater than almost any off-the-shelf industrial scale. Crane scales may also be better suited to weighing goods that are in an awkward shape- sometimes platform scales are not suitable for this use, and it is easier to suspend the weight. Unlike platform scales, crane scales do not take up floor space. As it can be left in situ when not in use it does not disrupt day-to-day warehouse operations.
Potentially crane scales can also save labour costs and time. Small crane scales are built for portability, so the scale can be taken to the item, rather than taking the item to the scale. Further, the remote control feature means the scale can be operated from a distance.
