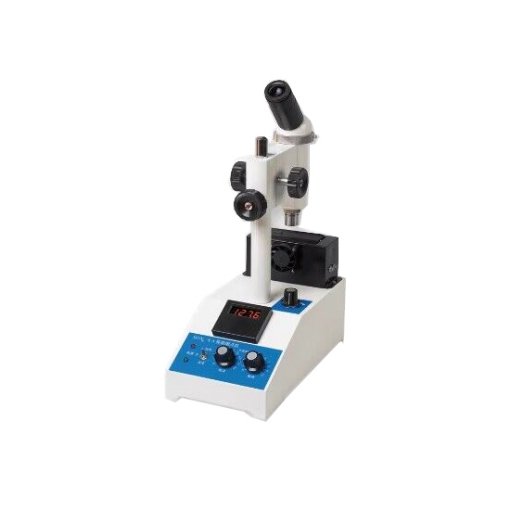

Laboratory Micro Melting Point Apparatus

Details

Q1: What materials can be tested with a laboratory micro melting point apparatus?
A1: A laboratory micro melting point apparatus is commonly used to test the melting points of small quantities of various materials, including organic compounds, pharmaceutical substances, polymers, and chemical reagents. This device is particularly valuable in testing the purity and identification of solid compounds, as the melting point can indicate whether a sample contains impurities or matches a known substance. It is frequently employed in research labs, pharmaceutical development, and quality control processes to analyze powdered samples, crystals, and other small solid specimens with high precision.

Q2: How does impurity affect the melting point?
A2: Impurities in a substance typically lower its melting point and broaden the melting point range. This happens because impurities disrupt the orderly crystal lattice of a pure substance, weakening the bonds between molecules and causing the substance to melt at a lower temperature. As a result, the transition from solid to liquid occurs over a wider temperature range, rather than at a sharp, specific point. In laboratory analysis, this effect is used to assess the purity of a substance: the purer the substance, the sharper and higher its melting point will be.

Q3: What are the typical sources of error in melting point determination?
A3: Typical sources of error in melting point determination include improper calibration of the melting point apparatus, inaccurate sample preparation, and heating the sample too quickly. A poorly calibrated thermometer can result in incorrect temperature readings, while impurities or uneven packing in the sample can cause inaccurate melting point results. Additionally, if the heating rate is too rapid, the sample may not uniformly reach the melting point, leading to a falsely elevated or broad melting point range. Environmental factors, such as air drafts or inconsistent heating, can also contribute to errors in the measurement.

Tips: How does a micro melting point instrument work?

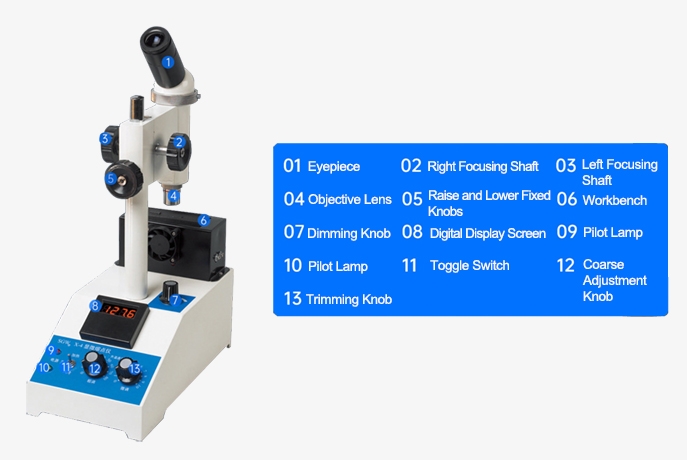

A micro melting point instrument with eyepieces and objectives functions by combining precision heating with microscopic observation to determine the melting point of small samples. The sample is placed in a thin capillary tube and heated gradually on a specialized heating block. The eyepiece and objective lenses allow the user to closely observe the sample as it undergoes the phase change from solid to liquid. As the sample is heated, the user can clearly see the exact point at which melting begins and completes, while the built-in thermometer or digital display provides real-time temperature readings. This enhanced visual capability improves accuracy, especially for small or fine samples, enabling precise identification of the melting point.
