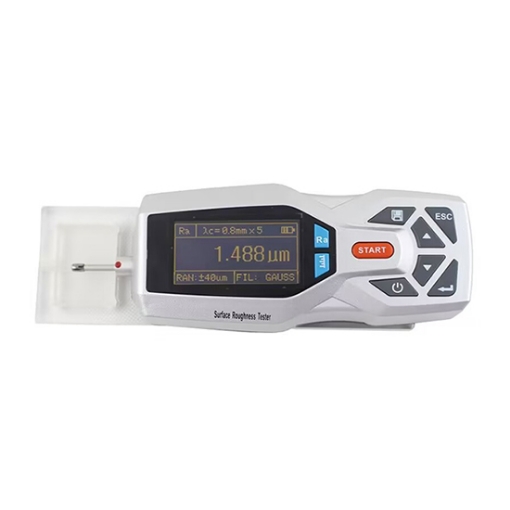

    LCD Handheld Surface Roughness Meter

    This LCD handheld contact-type surface roughness tester features a measurement range of Ra, Rq: 0.005~16μm; Rz, Rv, R3z, Rt, Rp ,R3z: 0.02~160μm; Rsm, Rs: 1mm; Rmr: 0~100%; Rsk: 0~100%, with an accuracy of 0.001µm and a indication variability of ≤6%, making it ideal for precise measurement of various surface roughnesses.
    SKU: SISCO-SRT-200
    $1,326.99
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    SISCO portable LCD digital contact surface roughness gauge is compatible with ISO, DIN, ANSI, and JIS standards and is widely used in production settings to measure the surface roughness of various machined parts.

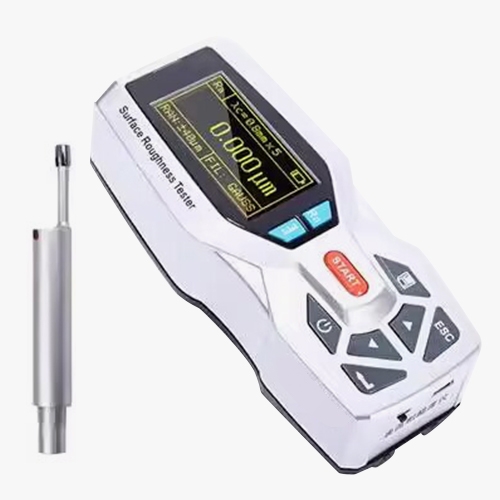

    LCD handheld surface roughness meter

    High-Precision Profilometer Roughness Tester with Advanced Technology

    • Electromechanical integration design, small size, light weight.
    • Can be connected to computer software for data output, simple and efficient.
    • Sensor is crafted from diamond material, featuring a 10µm measuring radius and a 90-degree direction.

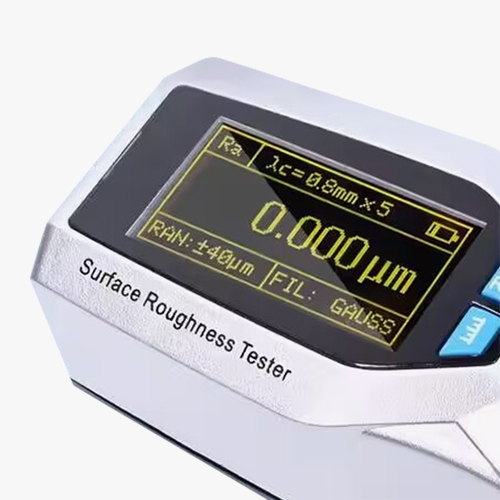

    LCD handheld surface roughness meter screen

    Multifunctional Compact Surface Roughness Tester

    • 14 parameters: Ra, Rq, Rz, Rt, Rp, Rv, R3z, R3y, RzJIS, Rs, Rsk, Rku, Rsm, Rmr.
    • Large-capacity data storage, capable of holding 100 items of raw data and waveforms.
    • Displays comprehensive information with an intuitive, graphical representation of all parameters.
    • 128 × 64 OLED dot matrix display featuring digital or graphic highlights; clear visibility from any angle.

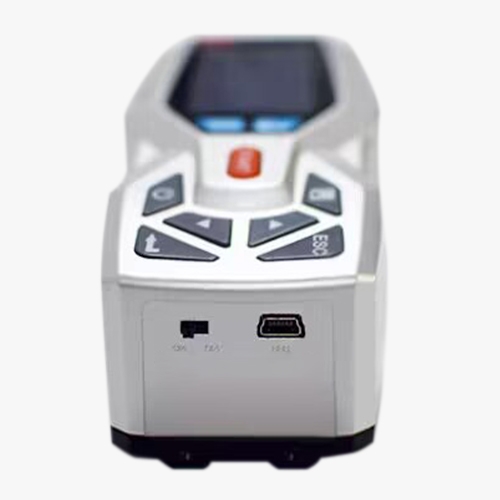

    LCD handheld surface roughness meter power details

    Ultra-Long Battery Life Surface Roughness Measurement Instrument

    • Controlled and processed by a DSP chip, offering high speed and low power consumption.
    • Lithium-ion rechargeable battery, can be charged using a DC 5V, 800mA charger or USB, able to work more than 20 hours.
    • Equipped with automatic sleep mode, automatic shutdown, power-saving features, and a calibration function.


    Applications

    The digital handheld profilometer roughness gauge can be widely used in production sites, and can measure the surface roughness of various machined parts. It calculates the corresponding parameters according to the selected measuring conditions and clearly displays all the measuring parameters on the LCD.

    Digital surface roughness tester with lcd display for transportation terminal

    Transportation Terminal

    Digital surface roughness tester with lcd display for oil extraction

    Oil Extraction

    Digital surface roughness tester with lcd display for production workshop

    Production Workshop

    Digital surface roughness tester with lcd display for construction site

    Construction Site

    Specs



    Model SISCO-SRT-200
    Measurement Parameters Ra, Rz = Ry (JIS),
    Rq, Rt = Rmax, Rp, RV, R3z, R3y, RzJIS, Rs, Rsk, Rku, Rsm, Rmr
    Display Range Ra, Rq: 0.005~16μm;
    Rz, Rv, R3z, Rt, Rp, R3z: 0.02~160μm;
    Rsm, Rs: 1mm;
    Rmr: 0~100%;
    Rsk: 0~100%
    Indication Accuracy 0.001µm
    Measuring Range Ra: 0.005µm~16.00µm
    Range ±20µm, ±40µm, ±80µm
    Sampling Length 0.25, 0.80, 2.50, Auto
    Indication Error ≤±7%
    Sensor Angle 90º
    Measuring Stroke Length 3L~7L (optional)
    Evaluation Length 1L~5L (optional)
    Max Drive Dtroke Length 17.5mm/0.71inch
    Min Drive Stroke Length 1.3mm/0.052inch
    Storage 100 Sets
    Filter RC, PC-RC, GAUSS, DP
    Power Supply Lithium-ion rechargeable battery
    Size 141mmx55mmx40mm
    Weight 400g

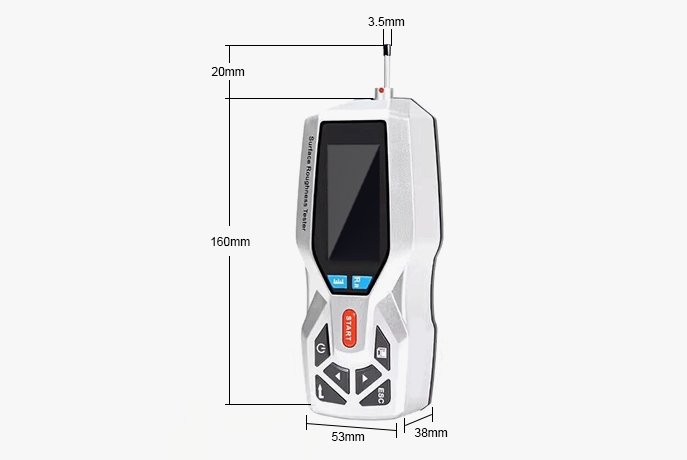

    Dimensions (mm)

    LCD handheld surface roughness meter dimension

    Details

    LCD handheld surface roughness meter dimension specification

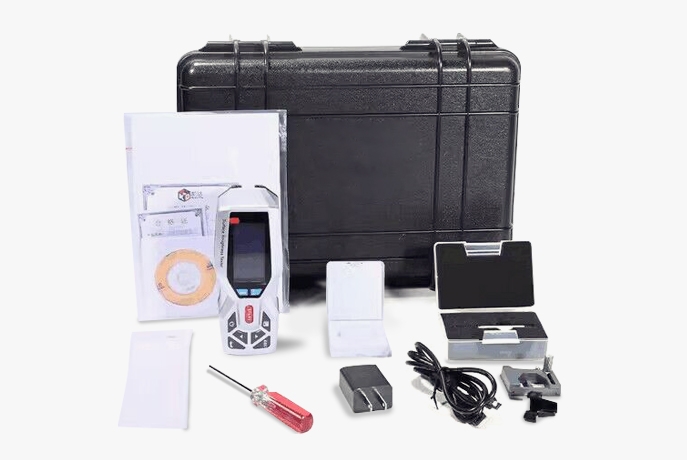

    Packing List

    • 1 x Surface roughness tester
    • 1 x Box
    • 1 x Multi-line standard block
    • 1 x Screwdriver
    • 1 x User manual
    • 1 x Standard Sensor
    • 1 x Certificate
    • 1 x Adjustable bracket
    • 1 x Power adapter

    LCD handheld surface roughness meter packing list

    FAQ

    Q1: What is a 3.2 RA finish?
    A1: 3.2 RA finish refers to a surface roughness measurement where the roughness average (RA) is 3.2 micrometers (µm) or 125 microinches. RA is a common parameter used to quantify the smoothness or texture of a surface, indicating the average deviation of the surface profile from the mean line over a specified length.

    3.2 RA finish is often considered a moderately smooth finish and is typically used in various industries where a certain level of surface smoothness is required for functional or aesthetic reasons. This level of roughness can be achieved through different machining processes such as grinding, polishing, or other finishing techniques.

    Q2: What is the difference between surface finish and surface roughness?
    A2: Surface finish and surface roughness are related but distinct concepts. Surface roughness specifically refers to the fine irregularities on the material's surface, which are a result of the manufacturing process. These irregularities are usually quantified in micrometers (µm) or microinches (µin) using parameters such as Ra (roughness average) and Rz (average maximum height). Surface finish, on the other hand, is a broader term that includes surface roughness, waviness, texture, and flaws. Waviness refers to larger-scale surface deviations, texture indicates the directionality of surface patterns, and flaws include defects such as cracks and scratches. In summary, surface roughness is a part of surface finish, and surface finish provides a comprehensive assessment of surface quality.

    Q3: What is SA and SQ in surface roughness?
    A3: In surface roughness measurement, Sa and Sq are parameters used to quantify three-dimensional surface texture. Sa (Arithmetic Mean Height) represents the arithmetic mean of the absolute values of surface height deviations measured from the mean plane, analogous to the 2D parameter Ra .Sq (Root Mean Square Height), on the other hand, is the root mean square (RMS) value of surface height deviations from the mean plane, akin to the 2D parameters Rq or Rms.

    Sa provides a measure of the average height variation on the surface, while Sq emphasizes larger deviations due to squaring and averaging the deviations. These parameters are crucial for comprehensively assessing surface texture and roughness in three dimensions, widely applied in fields such as materials science, manufacturing, and quality control.

    Tips: How does an digital surface roughness meter work?

    When measuring the surface roughness of a workpiece, the sensor is placed on the surface to be measured. The internal drive mechanism of the instrument drives the sensor to move uniformly along the surface being measured. The sensor detects the surface roughness using its built-in sharp stylus. As the surface roughness of the measured workpiece causes displacement of the stylus, this displacement changes the inductance of the sensor's coil.

    The change in inductance generates an analog signal at the output of the phase-sensitive rectifier, which is proportional to the surface roughness of the measured surface. After amplification and level conversion, this signal enters the data acquisition system. A DSP chip processes the collected data through digital filtering and parameter calculation. The measurement results are displayed on an LCD screen and can be communicated with a PC for data analysis and printing.
