The industrial water leak detector breaks through the shackles of traditional leak detection instruments. It can not only identify the location of the leak by listening to the sound but also visually identify the leak by looking at the spectrum. The dual modes of survey and positioning can find the leak more accurately.
Fully Functional
- Survey mode/positioning mode dual locks the leak point.
- Visual spectrum leak detection, and real-time digital display, can distinguish even the slightest difference.
- Effectively display fixed leak sound, flexible frequency adjustment settings, can match the ambient noise, and truly restore the leak sound.
Easy to Operate
- Adopts intelligent bone conduction detection technology, a high-sensitivity sensor, and accurate anti-interference.
- The dual-probe design for leak detection can adapt to different application scenarios.
- 7-inch touch screen, more convenient operation.
Applications
The water leak detector is a device that can quickly and accurately locate the location of pipeline leaks. Because of its high precision, non-destructive testing, and fast and efficient features, it is not only suitable for urban water supply systems and industrial pipeline systems but can also be used for household internal pipelines to reduce water waste and property losses.
Industrial Production
Household Pipes
Municipal Engineering
Urban Water Supply
Â
| Model | SISCO-TYM-3A |
| Function Sensor | Al Smart Analyze, Triangle Sensor, Square Sensor |
| Operate Mode | General, Locating |
| Frequency Range | 100Hz~8000Hz |
| Signal-to-Noise Ratio | 60dB |
| Sensitivity | -29dB, 70mv/g |
| Display | 7-inch Display |
| Resolution | 800*480 |
| Gain | 10 Levels Adjustable |
| Volume | 10 Levels Adjustable |
| Working Temperature | -20℃~+50℃ |
| Charging Time | 8h |
| Standby time | 15h |
| Power | ≈8W |
| Charger | 5V 2A USB Charger |
| Host Weight | 0.7kg |
| Sensor Weight | 0.35kg |
| Square Sensor | 0.5kg |
| Host Size | 214mm×146mm×48mm |
| Triangle Sensor Size | 72.95mm×68mm×60.2mm |
| Square Sensor Size | 59mm×55mm×29.6mm |
Â

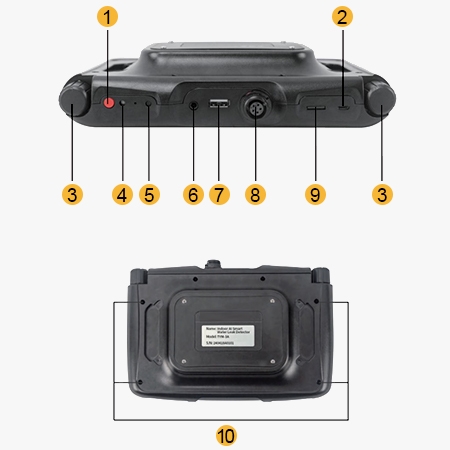

Structure Diagram
- Power Button (press and hold for about 3 seconds on or off)
- Reset Button (host reset)
- Micro-USB Interface (charging and data transmission)
- Headphone jack (for connecting noise-proof headphones)
- Strap Buckle (connected to the host strap)
- Five-core Plastic Aviation Plug (used to connect the Sensor)
- Indicator Light (power on indicator light and charging indicator light)
- SD Card Slot (system upgrade, file storage)
- Rotary Encoder (left to adjust gain, right to adjust volume)
- USB Interface (extension interface)
Â

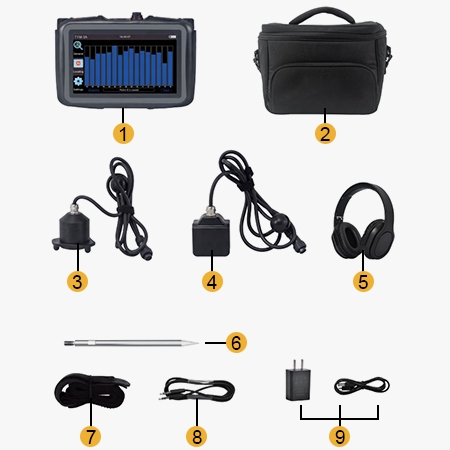

Packaging List
Host- Bag
- Triangle Sensor
- Square Sensor

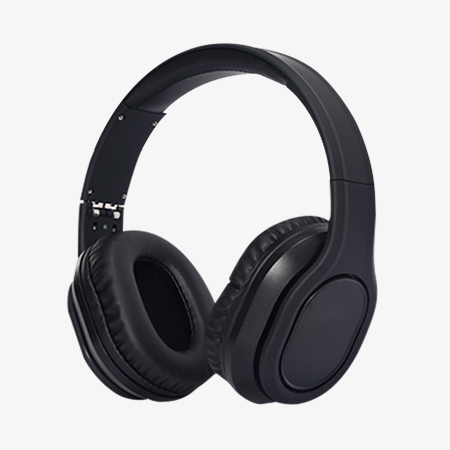

- Headphones
- Probe
- Host Strap
- Headphone Cable
- 5V, Type-C Charger
Q1: Do water leak detectors work?
A1: Yes! One or more water alarms in your home can alert you to take action as soon as a leak starts. They can help you avert long-term damage, including mold build-up, caused by leaks. But they're not a substitute for the routine preventative maintenance your home needs.
Q2: Are water leak detectors worth it?
A2: Yes, the water detectors are worth more than your expectation! The longer a leak goes undetected, the more damage it does, destroying furniture and decoration, spawning mold and fungi, and even threatening structural integrity. A water leak detector can reduce the risk by alerting you to problems quickly, so you can act to prevent severe damage.
Q3: Where is the best place for a water leak detector?
A3: Tuck your water detectors behind the toilet, under the sink, in a corner by the bathtub, or all of the above. If the pipes under your sink develop a slow leak, you may not notice water damage until the items under your sink are destroyed. Put an electronic water leak detector under the sink for peace of mind and to protect your belongings.
Tips: How to Store a Water Leak Detector?
Maintenance of the pipe detector is an important measure to ensure its accuracy and extend its service life. After each use, the surface of the device should be wiped with a clean cloth or paper towel to remove dust and dirt. In particular, the probe and other key components should be kept clean to prevent contaminants from adhering and affecting the detection accuracy. Regularly check whether the instrument's cables, probes, display screens, etc. are intact, and ensure that all connections are tight and not damaged. Store the detector in a dry and ventilated place, and avoid direct sunlight and high-humidity environments to prevent the device from getting damp or rusting. Calibrate the detector regularly to ensure its measurement accuracy. It is recommended to calibrate at least once a year, or according to the frequency of use and the manufacturer's recommendations.
