The water pipeline leak detector is used to find and determine the location of leakage points of the water supply pipeline, and it can also be used to detect the leakage of other pressure piping systems.
Powerful Functions
- Ergonomic grip design. The grip is designed according to the structure of the human hand, and the length and thickness have been precisely calculated.
- Conforms to everyone's grip, is more comfortable, and is easy to use.
- There is a professional spectrum analysis mode that can display the corresponding instantaneous noise signal within the corresponding frequency range to find the leak point more quickly.
Easy to Operate
- Advanced Bluetooth HeadphonesEasy， which can comfortably paddle earcups to block out external noise.
- High-frequency noise-canceling headphones can reduce ambient noise to the greatest extent possible and make it easier to find leaks. Comfortable to wear, clearer sound, and more accurate positioning.
- The all-ceramic sensor further improves the listening experience and reduces external environmental interference.

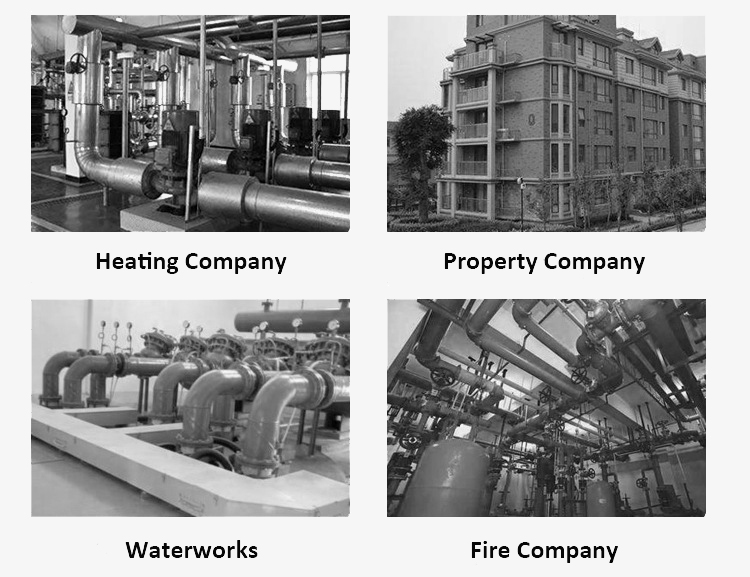

Applications
The water leak detector is a device that can quickly and accurately locate the location of pipeline leaks. Because of its high precision, non-destructive testing, and fast and efficient features, it is not only suitable for urban water supply systems and industrial pipeline systems but can also be used for household internal pipelines to reduce water waste and property losses.
Industrial Production
Household Pipes
Municipal Engineering
Urban Water Supply
Â
| Model | SISCO-KT-200L | SISCO-KT-300L | SISCO-KT-400L | SISCO-KT-500L |
| Measuring Depth | 2m | 3m | 4m | 5m |
| Frequency Range | 1-5000Hz | 1-6000Hz | 1-7000Hz | 1-8000Hz |
| Frequency Binning | 24 center frequencies and commonly used frequency bands | |||
| Audio Amplification Gain | Adjustable within 100 levels | |||
| Operating Mode | Spectrum analysis mode, Filter analysis mode, Precise test mode, Spot test mode | |||
| Working temperature | -10~50℃ | |||
| Display | 7-inch high-definition digital touchscreen | |||
| Battery | 4000mAh rechargeable battery | |||
| Storage Temperature | -10~75℃ | |||
| Standby Time | At least 480 minutes | |||
Q1: Do water leak detectors work?
A1: Yes! One or more water alarms in your home can alert you to take action as soon as a leak starts. They can help you avert long-term damage, including mold build-up, caused by leaks. But they're not a substitute for the routine preventative maintenance your home needs.
Q2: Are water leak detectors worth it?
A2: Yes, the water detectors are worth more than your expectation! The longer a leak goes undetected, the more damage it does, destroying furniture and decoration, spawning mold and fungi, and even threatening structural integrity. A water leak detector can reduce the risk by alerting you to problems quickly, so you can act to prevent severe damage.
Q3: Where is the best place for a water leak detector?
A3: Tuck your water detectors behind the toilet, under the sink, in a corner by the bathtub, or all of the above. If the pipes under your sink develop a slow leak, you may not notice water damage until the items under your sink are destroyed. Put an electronic water leak detector under the sink for peace of mind and to protect your belongings.
Tips: How to use the water leak detector?
- First, we will see a window, which is the indicator value. The water leakage detector needs to be equipped with a battery. After turning on the reporter, the indicator needle will start to move, telling us what the voltage of the battery is, and then indicating the signal strength.
- Then we will see a cursor display, which will show whether there is a signal nearby or whether there is a water leak. All information is very detailed.
- Now let’s take a look at the bandwidth display window. This display window generally uses a double-digit digital tube, which will display levels 1-16, and the bandwidth can be adjusted.
- He has an adjustment knob, which can be used for gain, which can enhance the signal strength to view the broadband value.
- Now let me tell you how to use its switch key. The water leakage detector can be used after plugging in the probe and turning on the switch. If you want to adjust the direction and length, you can press the band pass adjustment button, down to decrease and up to increase. It is charged by the jack of the vibration pickup, which is a dual-purpose type, and this jack is located on the right.
