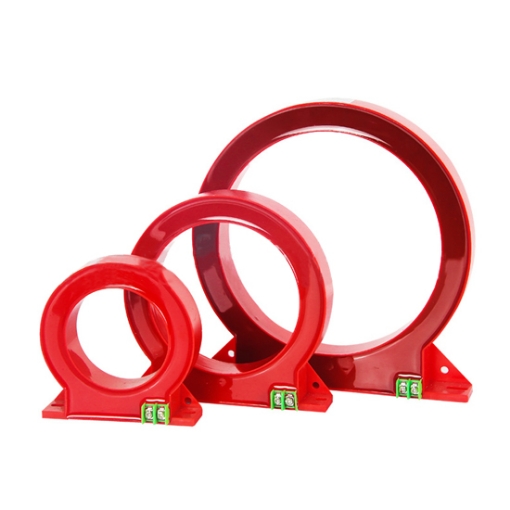

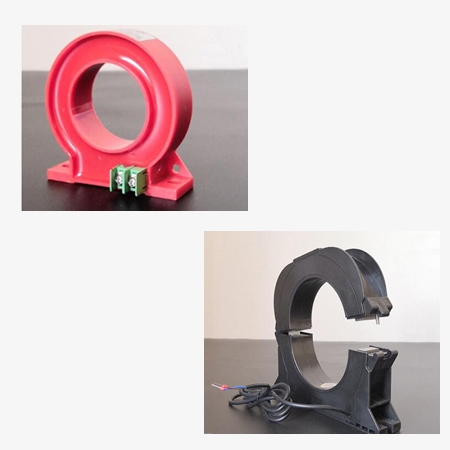

Fire Monitoring Residual Current Transformer

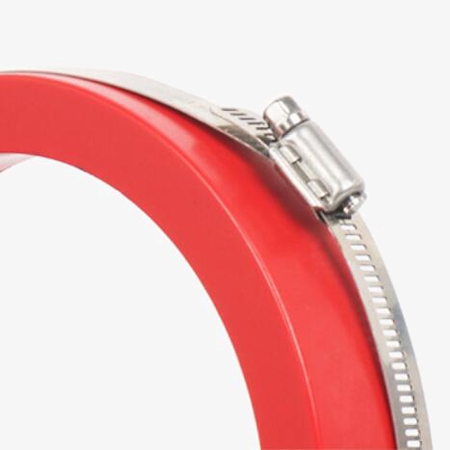

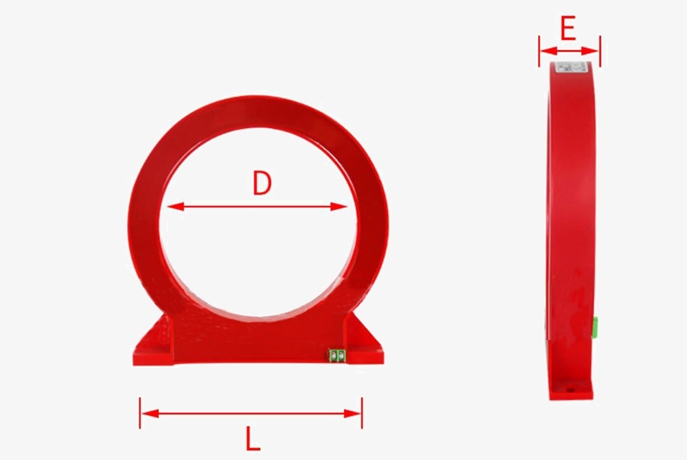

Details

Q1: What causes leakage current?
A1: Leakage current is typically caused by faults in the insulation of electrical wiring or equipment, allowing current to flow through unintended paths, such as the ground or through moisture. Common causes include damaged cables, aging or degraded insulation, faulty electrical appliances, or environmental factors like humidity, water, or corrosive materials that can compromise the integrity of the electrical system. Additionally, improper installation or grounding issues can also lead to leakage currents, posing a safety risk of electric shock or fire.

Q2: What is the difference between an RCT and a CT (Current Transformer)?
A2: The key difference between an RCT (Residual Current Transformer) and a CT (Current Transformer) lies in their function and purpose. An RCT is designed to detect the imbalance or difference between the live (phase) and neutral currents in a circuit, indicating the presence of leakage current, which is crucial for safety and protection against electric shocks or fires. In contrast, a CT is used to measure the total current flowing through a conductor, typically for monitoring, metering, or protection purposes in normal operating conditions. While a CT provides information on the magnitude of current in a circuit, an RCT focuses on detecting any current leakage or residual current, which can signal a fault or safety issue.

Q3: What is the typical current rating of an residual current transformer?
A3: The typical current rating of a Residual Current Transformer (RCT) varies depending on the application and the level of sensitivity required. For residential and commercial use, RCTs are commonly rated for leakage currents of 30 mA, which is considered sufficient for protecting against electric shock hazards. In industrial settings, where higher currents and more robust protection are needed, RCTs may be rated for leakage currents of 100 mA, 300 mA, or even higher. The current rating is designed to detect imbalances between the phase and neutral currents, and the sensitivity of the RCT is chosen based on the level of protection required in the specific installation.

Tips: How does a residual current transformer work?

An RCT (Residual Current Transformer) works by monitoring the difference in current between the live (phase) and neutral conductors in an electrical circuit. Under normal conditions, the current flowing through the live and neutral wires is equal and balanced. However, if there is a leakage current, such as when electricity escapes to the ground through a fault or damaged insulation, the balance is disturbed. The RCT detects this imbalance and generates a signal, which triggers a protective device, such as a Residual Current Device (RCD), to disconnect the circuit and prevent potential electric shocks or fires. The RCT is typically installed around the live and neutral wires of the circuit, enabling it to measure the residual current flowing through the system.
