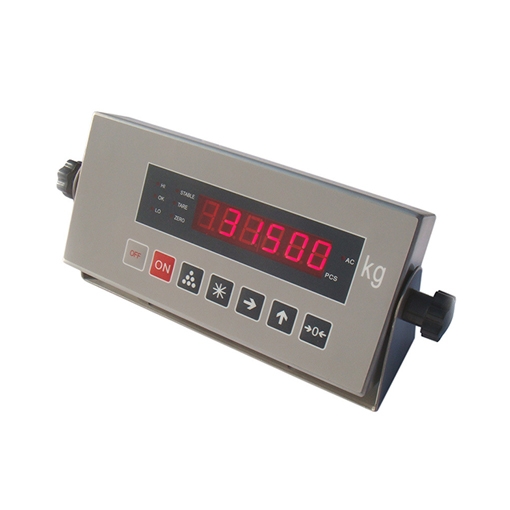

The SISCO digital weighing scale indicator with RS232 serial output, and RS-485 long-distance communication interface can be added, zero tracking range can be selected. The digital weighing indicator is suitable for electronic platform scales, floor scales, etc.

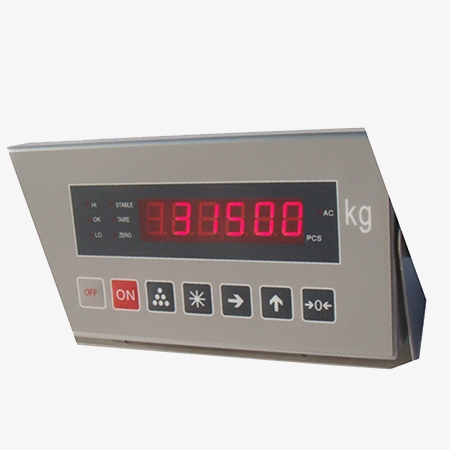

Digital weighing indicator with a 6-digit 0.56-inch LED display
- The bright LED display ensures easy reading of weight data, even in low-light or industrial environments.
- The 6-digit format provides accurate weight measurements for both small and large loads.
- The 0.56-inch display offers a compact solution, ideal for systems where space is limited.
- The simple, bright display allows for quick and efficient operation, enhancing workflow efficiency.

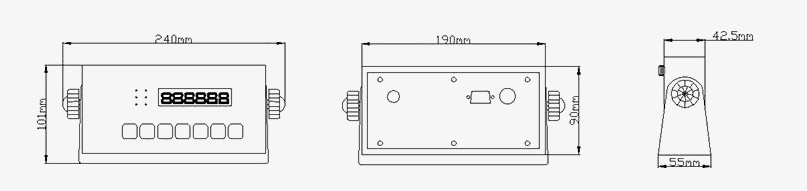

Dimension
Applications
SISCO weighing indicators are widely used for accurate weight measurement in various industries. They are essential in warehouses for inventory management, in supermarkets for weighing products and pricing, in logistics and transportation to prevent overloading, and at ports for weighing containers and ensuring safe cargo handling. These devices enhance efficiency and precision across these applications.
Logistics and Transportation
Warehouse
Wharf
Supermarket
| Model | SISCO-SISCO-WI-XK315A1GB |
| A/D Conversion Principle | Three-integral A/D |
| Display Accuracy | 1/3000~1/30000 |
| A/D Resolution | 100000 |
| A/D Conversion Speed | 40 times/second |
| Sensor Bridge Voltage | DC:5V can connect 4 350Ω sensors or 8 700Ω sensors |
| Display | 6-digit 20mm LED, expandable (×10) display |
| Weighing Method | Gross weight / net weight, manual accumulation / automatic accumulation |
| Division Value | 1/2/5/0.1/0.2/0.5/0.01/0.02/0.05/0.001/0.002/0.005/10/20/50/100/200/500/0.10/0.20/0.50/0.010/0.020/0.050 |
| Serial Communication Interface | Baud rate 1200 2400 4800 9600 optional, RS485 continuous and response mode can be added |
| Printing | RS232 continuous transmission serial print output |
| AC Power Supply | AC220V 50/60Hz AC/DC dual-use |
| Using Temperature | –10℃~+40℃ |
| Rechargeable Battery | Built-in 6V/Ah, 6V/2.8AH |
| Storage and Transportation Temperature | ≤-25℃~55℃ |
| Relative Humidity | 10% - 85% non-condensing |
| Dimensions | 190mm*90mm*42mm |
| Weight | 1.8kg |
Q1: What is a weighing indicator?
A1: A weighing indicator is a device used in conjunction with weighing scales or load cells to display and process weight measurements. It receives electrical signals from the load cells, converts them into readable weight values, and displays the information on a screen. Depending on the model, weighing indicators can offer additional features like data storage, connectivity for data transfer, and advanced weighing functions such as tare, counting, and totalizing. They are commonly used in various industries, including logistics, warehousing, retail, manufacturing, and more, to ensure accurate weight readings and efficient process management.
Q2: Can weighing indicators be used with different types of scales?
A2: Weighing indicators can be used with a variety of scales, making them versatile tools in numerous industries. They are compatible with different types of scales, such as platform scales for heavy-duty industrial use, bench scales for smaller applications like retail or laboratories, floor scales for bulk weighing in warehouses, and weighbridges for weighing large vehicles in logistics and transportation. Additionally, they can be used with hopper and tank scales in manufacturing and crane scales for suspended loads in construction or shipping. This flexibility allows Weighing Indicators to meet diverse weighing needs across multiple sectors.
Q3: How do weighing indicators communicate with other devices?
A3: Many weighing indicators support communication protocols like RS232, RS485, Ethernet, USB, or wireless options. This allows them to connect to computers, printers, or control systems for data logging or remote monitoring.
Tips: Do weighing indicators support multi-point calibration?
Yes, many Weighing Indicators support multi-point calibration, which allows for more accurate weight measurements across a range of values. Multi-point calibration involves using multiple known weight values to fine-tune the accuracy of the indicator at different points along the scale's capacity. This process improves the indicator's precision, especially in applications where weights can vary widely. It's particularly useful in industrial and scientific settings where maintaining high accuracy at different load levels is critical.
