Buy a high precision volt amp meter online. It is designed for measuring AC voltage (0~500V), AC current (0mA~10A) and phase (0~360°) without opening the circuit under test. Digital volt ampere meter provides a super-large LCD display with characters as high as 40mm, Φ8mm CT size, used for electric power, petrochemical, metallurgy, railway, meteorology, industrial and mining enterprises, scientific research institutions, measurement departments, etc.

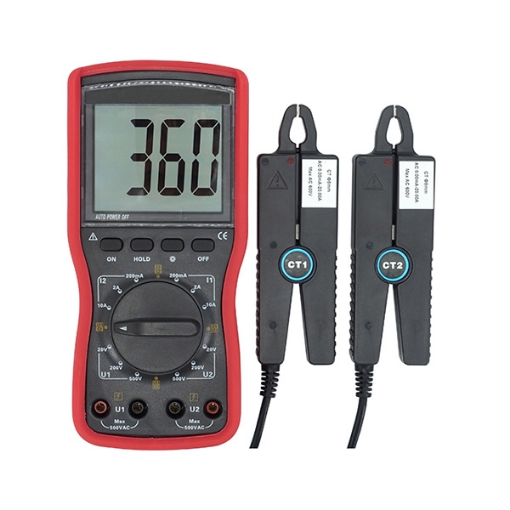

Digital Volt Amp Meter, Double Clamp, Current 10A, Voltage 500V, Φ8mm CT size.
- sisco volt amp meter adopts a voltage transformer and current clamp to input, no high voltage inside the meter, complete isolation between 2 input channels, safe and reliable.
- The small sharp clamp is suitable for flat cable-dense sites.

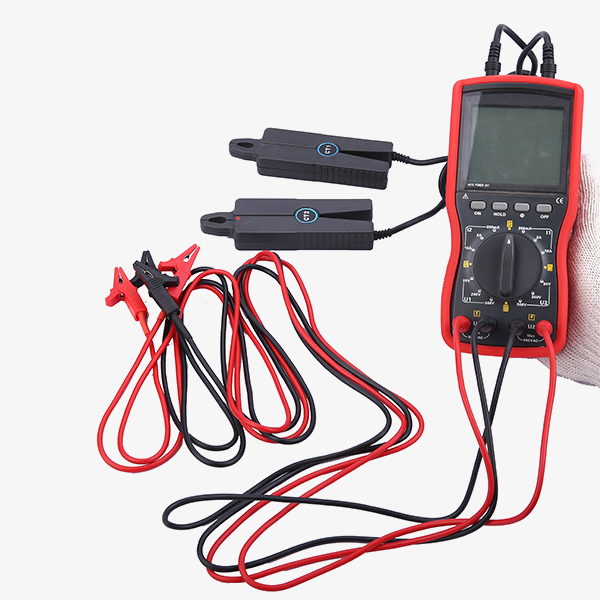

- The test wires of volt ammeters use special electric cables, and the spring plug and alligator clip have insulation protection. The instrument uses an insulated and non-slip sheath.
- Digital volt amp meter is equipped with a large LCD display screen, white backlight, and clear display. High precision, high stability, low power consumption, and convenient to use.

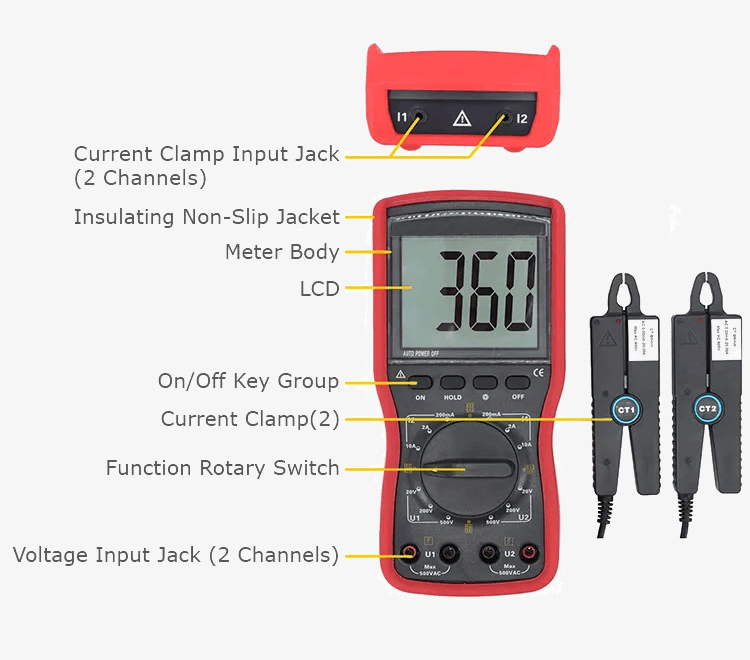

Details
Applications
Digital volt amp meters can directly measure AC voltage, AC current, between two voltages, between two currents, and the phase between voltage and current and power frequency. sisco volt-ampere meters are suitable for electric power, petrochemical, metallurgy, railway, meteorology, industrial and mining enterprises, scientific research institutions, measurement departments, etc., especially for electric energy billing systems and relay protection systems.
| Model | SISCO-VAM-4000 |
| Voltage Range(Reference Conditions) | 0~20V; Resolution: 0.01V; Error: ±(0.5% range) |
| 0~200V; Resolution: 0.1V; Error: ±(0.5% range) | |
| 0~500V; Resolution: 1V; Error: ±(0.5% range) | |
| Current Range(Reference Conditions) | 0~200mA; Resolution: 0.1mA; Error: ±(0.5% range) |
| 0~2A; Resolution: 1mA; Error: ±(0.5% range) | |
| 0~10A; Resolution: 10mA; Error: ±(0.5% range) | |
| Phase Range(Reference Conditions) | Phase: 0~360°; Resolution: 1°; Error: ±1° |
| Power Supply | DC9V LR61.5V AAX6PCS |
| LCD Size | LCD Size: 70mm×62mm; Display Area: 64mm×54mm |
| CT Size | Φ8mm |
| Meter Dimensions | 196mm×92mm×54mm |
| Weight | 1140g |
| Sampling Rate | About 3 times/second |
| Measuring Phase Amplitude Range | Measure phase U1-U2: 30V~500V; Measure phase I1-I2: 10mA~10.00A Measure phase U1-I2 or I1-U2: 10V~500V、10mA~10.00A |
| Data Hold | In measurement, press the HOLD key to hold data, “DH” symbol display |
| Auto Shut Down | 15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption |
| Voltage Detection | When the battery voltage is lower than 7.8-8V, a low battery symbol will display, to reduce the battery consumption |
| Cable | Test wire length 1.5m; current clamp wire length 2m |
| Working Current | Open the backlight max 35mA, the battery continues working for about 15 hours; Close the backlight, meter power consumption of about 5mA, the battery continues working 100 hours |
| Input Impedance | Test voltage input impedance: 1MΩ; Measure phase U1U2 voltage input impedance: 40KΩ |
| Accessories | Host meter: 1PCS; Current Clamp: 2PCS; Test Wire: 4PCS; Meter case: 1PCS |
Q1: What is a volt amp meter?
A1: A digital volt amp meter is a high-precision, low-consumption, low-cost, portable, handheld, dual-channel input measuring instrument, specially designed for measuring voltage, current and phases on-site.
Q2: How a volt amp meter works?
A2: The volt-ampere meter adopts the clamp conversion method to input the measured current, so there is no need to disconnect the measured line during measurement. When measuring the phase between U1-U2, the two input circuits are completely insulated and isolated, thus completely avoiding the short circuit of the measured line caused by miswiring and burning the measuring instrument. This is the working principle of volt ammeters.
Q3: What can a volt amp meter do?
A3: When the circuit under test is not open, the volt ammeter can simultaneously measure two AC voltages, currents, phases between voltages, phases between currents, phases between voltages and currents, frequency, phase sequence, active power, reactive power, apparent power, power factor, etc., the volt amp meter can also identify the transformer wiring group, inductive and capacitive circuits, test the secondary circuit and bus differential protection system, read the phase relationship between the CTs of the differential protection groups, and check the watt-hour meter wiring and line equipment.
Tips: Volt amp meter applications in testing switch
If you think the switch is bad, you can test it using the ohmmeter function on a digital phase voltmeter (double clamp). With the breaker off and the switch off, set the volt amp meter to measure resistance and touch the probes to the switch terminals. When the switch is off, the resistance should be close to zero. If the resistance is high, it's time for a new switch.
