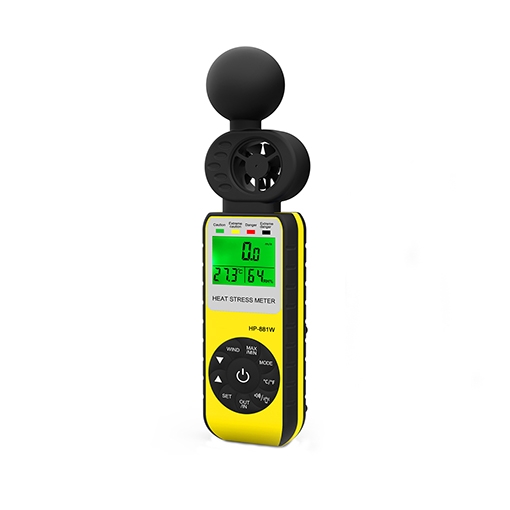

    Digital Vane Type Anemometer, 0~30 m/s

    High-resolution digital vane type anemometer with wind speed range of 0~30m/s, accuracy of ±5% digit, resolution of 0.1m/s, five measure wind speed units of m/s, km/h, Ft/min, Knots, Mph are optional. The vane anemometer comes with a backlight LCD screen to display data even in a dark environment.
    SKU: SISCO-CA-HP881W
    $78.62
    i h
    🚚 Free shipping
    πŸ”™ 30-day returns
    πŸ“… Delivery: 7-12 days
    Overview


    SISCO vane anemometer comes with a wet bulb globe temperature measurement. WBGT temperature and air temperature range from 0-50℃ with a high resolution of 0.1℃/ ℉. WBGT alarm of the digital vane anemometer can be used to remind whether the current working environment temperature is too high to reduce the harm caused by high temperature environment to people.

    Digital vane type anemometer detail

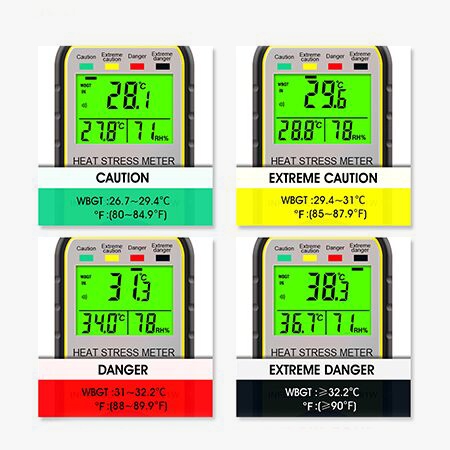

    Heat Index Checker Wet Bulb Globe Temperature

    • The digital vane-type anemometer can measure the heat index, providing users with real-time data on how hot it feels based on temperature and humidity levels. This feature helps in understanding the perceived heat during outdoor activities.
    • Equipped with the ability to calculate WBGT, the anemometer is ideal for monitoring heat stress in various environments, especially in workplaces or outdoor settings. The WBGT value accounts for temperature, humidity, wind speed, and solar radiation, ensuring accurate heat stress assessments.
    • In addition to its core wind speed and temperature measurement capabilities, this anemometer includes functions for both Heat Index and WBGT, making it a versatile tool for safety monitoring in sports, industrial, and environmental applications.
    • A high-definition LCD screen provides easy-to-read information on wind speed, heat index, and WBGT, all in one place. This makes the device practical for real-time heat stress management and weather monitoring.
    Digital vane type anemometer detail

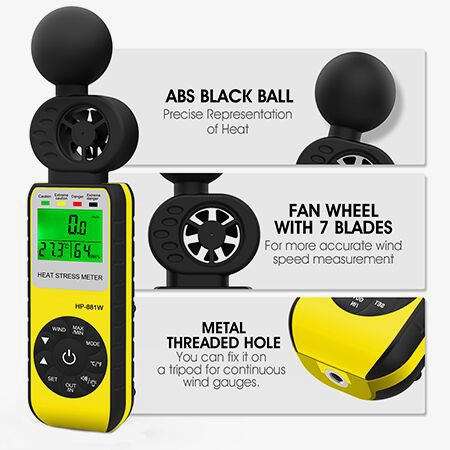

    Vane Anemometer Features

    • ABS Black Ball: The anemometer features a durable ABS black ball that forms part of the wind sensor, ensuring long-lasting performance even under tough conditions. The high-quality ABS material provides resistance to environmental wear and tear, maintaining accuracy over time.
    • Fan Wheel with 7 Blades: Equipped with a precision-engineered fan wheel with 7 blades, the device enhances airflow measurement accuracy. The aerodynamic design of the blades optimizes sensitivity to even slight wind changes, delivering reliable and consistent readings across a range of wind speeds.
    • Metal Threaded Hole: The anemometer comes with a built-in metal threaded hole, making it easy to mount on tripods or stand for stationary measurements. This robust metal design adds stability and durability, ensuring secure attachment during extended use in the field.

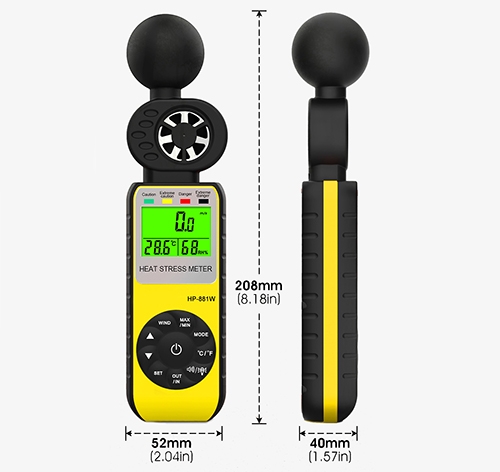

    Dimension

    Digital vane type anemometer size

    Applications

    SISCO cup anemometer is widely used for data acquisition in boilers, refrigeration, HVAC, ventilation ducts, agriculture meteorological stations, meteorological monitoring for seaport, navigation, wind power, improved air circulation and daily speed measurement.

    Weighing indicator for wind power

    Wind Power

    Weighing indicator for improve air circulation

    Improve Air Circulation

    Weighing indicator for daily speed measurement

    Daily Speed Measurement

    Weighing indicator for navigation

    Navigation

    Specs

    Β

    Model SISCO-CA-HP881W
    Wind Range 0~30 m/s
    Resolution 0.1 m/s
    Accuracy Β±5%
    Temp. Range 0~50℃
    Temp. Resolution 0.1℃/℉
    Temp. Accuracy Β±0.6β„ƒοΌˆΒ±3℉)
    Humidity Range 0.1%~99.9%RH
    Humidity Resolution 0.1% RH
    Humidity Accuracy 10.0%~90.0% @25℃: Typical 5%, others 7%
    WBGT Temp. Range 0~50℃
    WBGT Alarm Range 20~50℃
    Stabilization time 15~25minutes typical
    Operation Temp. 0~50℃
    Operation RH% Humidity <80%
    Storage Temp. -20~50℃
    Storage RH% Humidity <90%
    Dimension(mm) 208.33*52*40mm
    Weight 138g
    FAQs

    Q1: What is digital anemometer?
    A1:
    Digital Anemometer allows for measuring atmospheric effects, namely wind velocity, temperature, and humidity for better data analysis. It also possesses various features such as the Beaufort scale, switches between Celsius and Fahrenheit, switches between metric and imperial systems, or the battery status indicator.

    Q2: How does a digital anemometer measure wind speed?
    A2: On the instrument, press the unit button to view the range of measurement options and select the relevant one. Once it's showing the correct unit of measurement, it's ready to calculate the speed.

    Q3: How does a digital anemometer work?
    A3: The arms are attached to a vertical rod. As the wind blows, the cups rotate, making the rod spin. The stronger the wind blows, the faster the rod spins. The anemometer counts the number of rotations, or turns, which is used to calculate wind speed.

    Tips: Can a digital vane-type anemometer calculate Heat Index and WBGT?

    Yes, the vane-type anemometer is equipped with the ability to calculate Heat Index and Wet Bulb Globe Temperature (WBGT). These functions are useful for assessing thermal comfort and monitoring heat stress in environments such as sports fields, workplaces, or outdoor areas.

    • Heat Index: This measurement indicates how hot it feels when humidity is taken into account along with the actual temperature.
    • Wet Bulb Globe Temperature (WBGT): This parameter measures the combined effect of temperature, humidity, wind speed, and solar radiation, providing a more comprehensive assessment of heat stress conditions.
