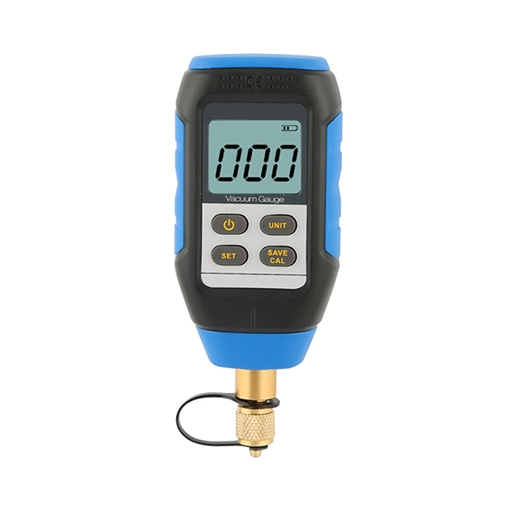

Cheap price digital vacuum pressure gauge supports four vacuum units including Pa, mBar, mmHg, and microns. The electronic vacuum gauge adopts a professional vacuum sensor, which can accurately measure the vacuum degree, monitor the vacuum system in real-time and measure if the vacuum system is leaking, distinguishing the advantages and disadvantages of vacuum pumps.

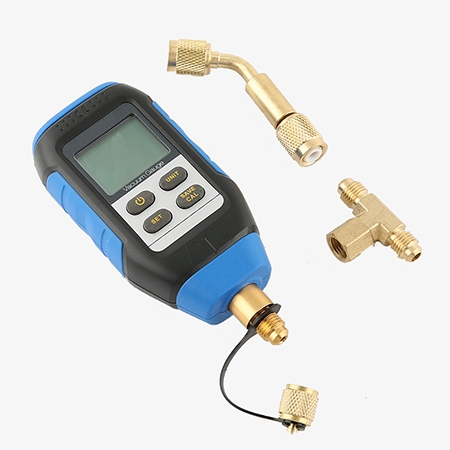

Comes with a tee and an extension connector
- The digital vacuum pressure gauge with a convenient design, easy to carry.
- The digital vacuum gauge comes with an integrated three-way valve, allowing you to switch between different pipes or systems for measuring vacuum pressure. This feature facilitates measurements in multiple systems or configurations.
- An extension adapter is included to extend the reach of the digital vacuum gauge, making it easier to connect to measurement systems that are farther away or in hard-to-reach areas. This is particularly useful for measurements in tight or challenging spaces.

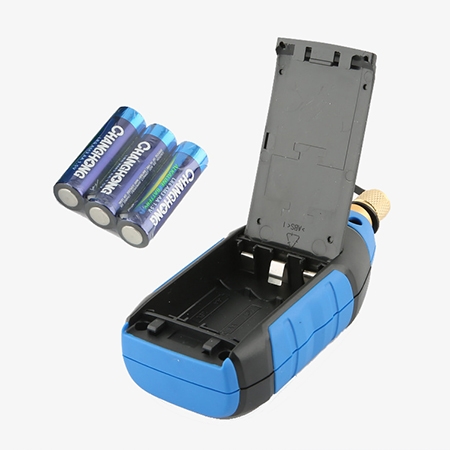

The battery can be replaced at any time, convenient and practical
- The digital vacuum gauge features a user-replaceable battery design, allowing for easy and convenient battery changes without the need for specialized tools or professional assistance.
- The battery compartment is designed for quick and straightforward access, making it easy to replace the battery on the go without disrupting your work.
Note: This vacuum gauge does not contain batteries!
Applications
SISCO vacuum gauges are used to measure and monitor pressure in vacuum systems and are essential for maintaining accurate vacuum conditions. It is used in the automotive industry, HVAC, industrial, medical device manufacturing and sterilization, food packaging for extended shelf life, pharmaceutical production, aerospace for high altitude simulation, and the chemical and petroleum industries for processes such as distillation and purification.
HVAC
Industry
Food Packaging
Automotive
Â
| Model | SISCO-VG-VMV-1 |
| Maximum Overload Pressure | 72 psi/0.5Mpa |
| Measuring Range | 0-10000Pa/ 0-100 mBar/ 0-75 mmHg/ 0-75000 Micron |
| Resolution | 0.01 (＜10Pa) 0.001 (10mBar) 0.0001 (＜10 mmHg) 1 (＜30000 Micron) |
| Measurement Accuracy | 0-100 Pa: Reading ±5% (at 20℃) |
| Unit | Pa/ mBar/ mmHg/ microns |
| Refresh Rate | 0.5s |
| Interface | 1*7/16"-20UNF |
| Operating Temperature | 0-50℃/ 32-122℉ |
| Battery Life | 45 hours (3*AA batteries) |
| Sensor | 1*Pirani sensor |
| Auto Shut-off Time | 10 mins |
| Backlight Time | 20s |
| Buzzer | 90dB volume, shuts off after 10s |
| Weight | 125g (without battery) |
| Applicable | Scope: atmospheric environment (cannot be used for measurement in other environments such as refrigerant) |
Â
Details
Q1: What is a vacuum gauge?
A1: A vacuum gauge is an instrument used to measure the pressure in a vacuum system, indicating how much air or gas is present within a closed environment. These gauges are essential in applications where precise control of pressure is required.
Q2: How does a vacuum gauge work?
A2: A vacuum gauge works by measuring the pressure exerted by the gas or air molecules within a vacuum system. Different types of vacuum gauges (such as mechanical, thermal conductivity, and ionization gauges) use various principles to detect and measure this pressure.
Q3: Can I use a vacuum gauge with any type of gas?
A3: Not all vacuum gauges are compatible with all types of gases. Some gauges are sensitive to specific gases, which can affect their accuracy and performance. Always check the manufacturer’s specifications for gas compatibility.
Tips: What does a digital vacuum gauge do?
A digital vacuum gauge measures the pressure in a vacuum system, providing a digital readout of how much vacuum (or how little pressure) is present. It’s used in various applications, such as in HVAC systems, laboratories, and industrial processes, to ensure that vacuum conditions meet required specifications. The gauge converts the physical pressure readings into digital values, making it easier to read and interpret the vacuum level accurately.
