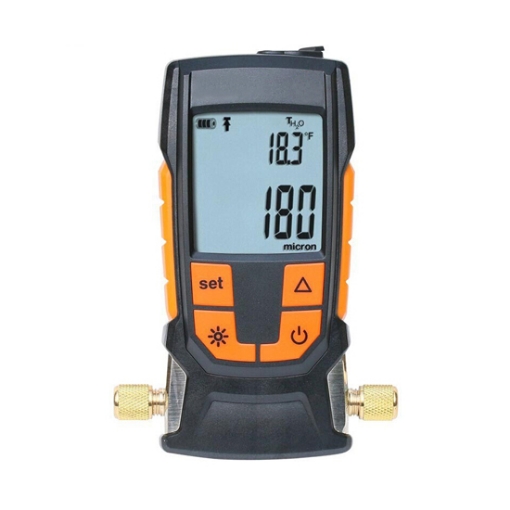

SISCO vacuum gauge has measurements in several units including mmHg, Torr, mBar, hPa, micron, inH20, inHg, Pa. The portable vacuum gauge with wireless Bluetooth can communicate with smartphones or tablets via Bluetooth connection, thus providing reliable, precise analyses and reports that can be forwarded via e-mail.

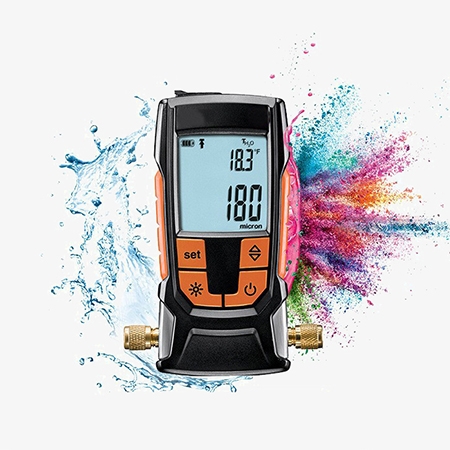

IP42 Protection Rating
- The refrigeration vacuum gauge boasts an IP42 protection rating, indicating it is safeguarded against solid objects larger than 1mm and protected from water spray at an angle up to 15 degrees from vertical.
- The IP42 rating ensures that the gauge is resistant to dust and small particles, providing reliable performance in environments where such contaminants are present.
- The bluetooth vacuum gauge is designed to withstand light water splashes, making it suitable for use in conditions where occasional exposure to moisture might occur, such as in laboratory or industrial settings.

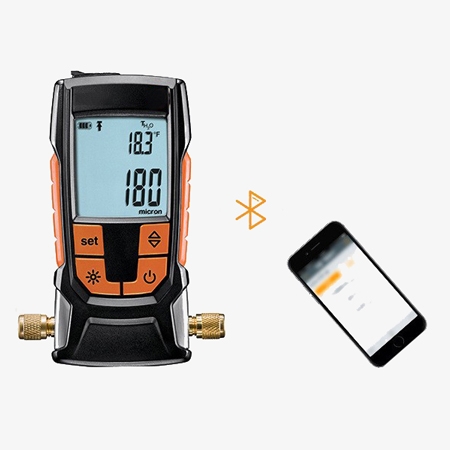

Comes with wireless Bluetooth connectivity
- The digital vacuum gauge features built-in Bluetooth connectivity, allowing for wireless data transmission to compatible devices.
- With Bluetooth connectivity, users can monitor vacuum levels in real-time on their mobile devices, providing greater flexibility and convenience, especially in situations where direct access to the gauge is limited.
- The Bluetooth feature enables easy data logging and analysis through dedicated apps or software, helping users track performance over time and identify trends or issues.
Applications
SISCO vacuum gauges are used to measure and monitor pressure in vacuum systems and are essential for maintaining accurate vacuum conditions. It is used in the automotive industry, HVAC, industrial, medical device manufacturing and sterilization, food packaging for extended shelf life, pharmaceutical production, aerospace for high altitude simulation, and the chemical and petroleum industries for processes such as distillation and purification.
HVAC
Industry
Food Packaging
Automotive
Â
| Model | SISCO-VG-252 |
| Measuring Range | 0-26.66 mbar/ 0-20000 microns |
| Vacuum Accuracy | ±10 microns+10% of the mean (100-1000 microns) |
| Vacuum Resolution | 1 micron (0-1000 microns) 10 microns (1000-2000microns) 100 microns (2000-5000 microns) 500 microns (5000-10000 microns) 5000 microns (10000-20000 microns) |
| Vacuum Overload | Absolute value: 6 bar/ 87 psi Relative value: 5 bar/ 72 psi |
| Operating Temperature | -10-50℃ |
| Battery Life | 50 hours |
| Protection level | IP42 |
| Parameters | mmHg, Torr, mBar, hPa, micron, inH20, inHg, Pa |
| Measurement rate | 0.5s |
| Connection | 2*1/4" SAE(7/16' UNF), 1*MinDIN |
| Weight | 1kg |
Q1: What is a vacuum gauge?
A1: A vacuum gauge is an instrument used to measure the pressure in a vacuum system, indicating how much air or gas is present within a closed environment. These gauges are essential in applications where precise control of pressure is required.
Q2: How does a vacuum gauge work?
A2: A vacuum gauge works by measuring the pressure exerted by the gas or air molecules within a vacuum system. Different types of vacuum gauges (such as mechanical, thermal conductivity, and ionization gauges) use various principles to detect and measure this pressure.
Q3: Can I use a vacuum gauge with any type of gas?
A3: Not all vacuum gauges are compatible with all types of gases. Some gauges are sensitive to specific gases, which can affect their accuracy and performance. Always check the manufacturer’s specifications for gas compatibility.
Tips: How do I select the right vacuum gauge for my application?
Selecting the right vacuum gauge depends on several factors:
- Pressure Range: Different gauges are suitable for different pressure ranges.
- Accuracy Requirements: Consider the precision needed for your application.
- Environment: Some gauges are more suitable for harsh environments.
- Compatibility: Ensure the gauge is compatible with the gases and materials in your system.
