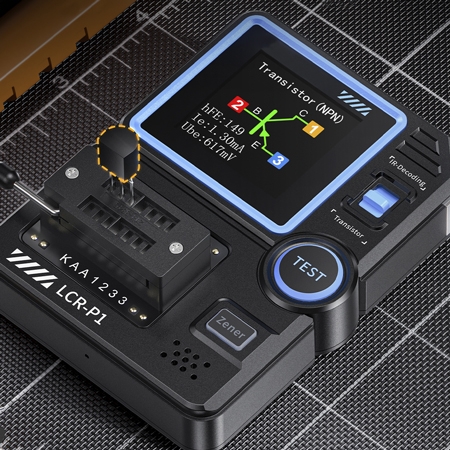

Beyond transistors, the digital transistor detector also measures key parameters like capacitance, inductance, and resistance, making it an all-in-one solution for testing components. With its easy-to-read display and intuitive design, this tester is a must-have for anyone working with electronic circuits.
- Automatic Component Recognition: The digital transistor detector intelligently identifies various components, enabling efficient and accurate detection.
- Overload Protection: SISCO LCRP1 transistor tester is equipped with a safety feature that prevents damage, it discharges capacitors automatically if inserted without prior discharge, protecting the device.

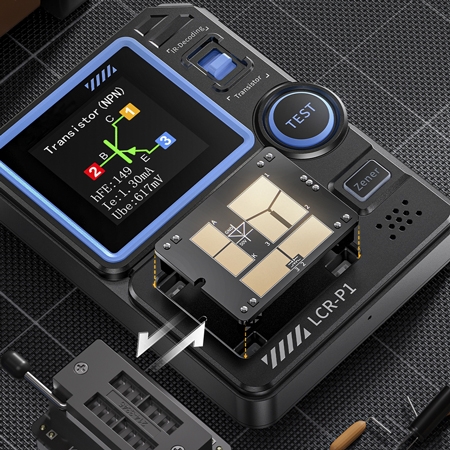

- Replaceable SMD Socket: The interchangeable surface mount socket allows for flexible testing of different components, adapting to diverse testing needs.
- NRC Infrared Signal Decoding: This transistor checker supports NRC infrared signal decoding, making it convenient for remote control testing and troubleshooting.
- Dedicated Voltage Regulator Testing: Featuring independent measurement channels, this hFE transistor tester is specifically designed for testing Zener diodes with a wide measurement range of 0.01-32V, ensuring precision before powering on the components.

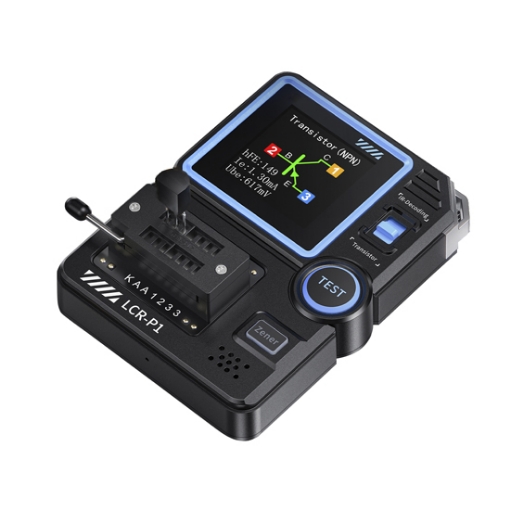

- Portable Design: Compact and easy to carry, this MOFEST transistor tester provides convenience and efficiency for on-the-go testing.
- Comprehensive Component Testing: The transistor detector supports real-time testing of capacitors, inductors, resistors, MOSFETs, transistors, and Zener diodes, providing a versatile solution for various electronic components.
- Precise and Reliable Measurements: With specialized features for different components, the digital transistor tester ensures high accuracy and reliability in all measurements.
Applications
SISCO transistor tester is ideal for product development, household appliance repair, and scientific research, providing precise and efficient testing for a wide range of electronic components. Its versatility makes it suitable for engineers, technicians, and researchers alike.
Appliance Repair
Product Development
Scientific Research
Educational Institutions
Â
| Model | SISCO-TT-LCRP1 | |
| Component Type | Range | Explanation |
| Transistor | 10＜β＜600 | DC current gain hFE, base-emitter voltage drop Ube, lc/le, collector-emitter reverse cutoff current Iceo, lces, forward voltage drop Uf. |
| Diode | Forward voltage drop＜4.5V | Forward voltage drop, junction capacitance, reverse leakage current. |
| Voltage Regulator Diode | 0.01-4.5V, 0.01-32V | (1-2-3 Testing Area) Forward voltage drop, reverse breakdown voltage. (K-A-A Testing Area) Reverse breakdown voltage. |
| Field Effect Transistor | JFET | MIOSTET Gate capacitance Cg, drain current Id at Vgs, forward voltage drop of protective diode Uf. |
| IGBT | Id at Vgs, forward voltage drop of protective diode Uf. | |
| MIOSTET | Threshold voltage Vt, gate capacitance Cg,drain-source resistance Rds, forward voltage drop of protective diode Uf. | |
| Unidirectional SCR Bidirectional SCR | Turn-on voltage <5V,gate trigger current <6mA | Gate voltage |
| Capacitor | 25pF~100mF | Capacitance value, loss coefficient Vloss, equivalent series resistance ESR. |
| Resistor | 0.01Ω-50MΩ | Resistance value |
| Inductor | 10uH~1000uH | Inductance value, DC resistance. |
| Battery | 0.1-4.5V | Voltage value, polarity. |
| Infrared Remote Control Decoding | NEC protocol infrared code | Display user code and data code, and display corresponding infrared waveform. |
| Display Screen | 1.44 inches | |
| Battery Capacity | 300mAh lithium battery | |
| Charging Specification | USB Type-C, 5V/1A | |
| Dimension | 71X87X28mm | |
Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.
What is covered?
SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.
What is not covered?
- Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
- Expendable parts.
- Routine cleaning or normal cosmetic and mechanical wear.
- Damage from misuse, abuse or neglect.
- Damage from use of parts other than SISCO approved.
- Damage from use outside the product’s usage or storage parameters.
- Damage from use of parts not sold by SISCO.
- Damage from modification or incorporation into other products.
- Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
- Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
Q1: What is transistor tester?
A1: A transistor tester is a device used to test and measure various electronic components, such as transistors, diodes, capacitors, resistors, and more. It helps identify component type, functionality, and key parameters like voltage and resistance.
Q2: How does a transistor tester work?
A2: A transistor tester works by applying a small current to the transistor's terminals to measure its electrical properties. It identifies the type of transistor (NPN or PNP) and checks for key parameters like gain (hFE), leakage current, and junction voltage, helping to determine if the transistor is functioning properly.
Q3: How does the tester identify transistors and diodes?
A3: The tester identifies transistors and diodes by automatically analyzing the connections and properties of the component's terminals. It measures key parameters such as voltage, current, and polarity to determine the type of component and its characteristics.
Tips: How to use a transistor tester?
To use a transistor tester, follow these steps:
- Insert the Component: Place the transistor (or other component) into the designated test socket or clips.
- Power On the Tester: Turn on the device to start the automatic detection process.
- Read the Results: The tester will display the type of component, key parameters (such as voltage or current), and pin configuration on the screen.
