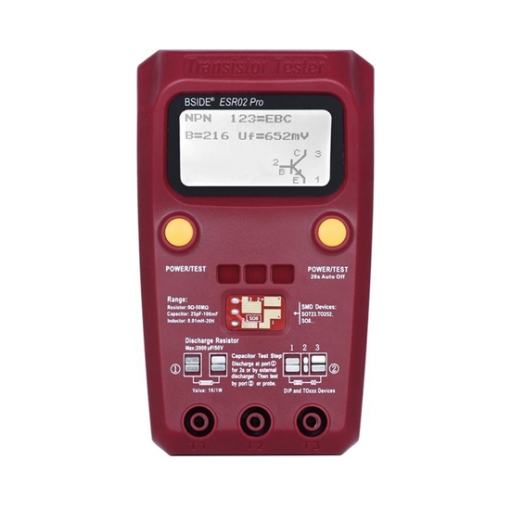

SISCO digital transistor tester with an advanced digital display, delivers precise readings for inductance (L), capacitance (C), and resistance (R), making it a go-to tool for testing circuits and components in various electronic devices. It automatically identifies the type of component and pin polarity, giving you valuable information like HFE (gain), threshold voltage, and the junction capacitance of MOSFETs.
- 128*64 Dot Matrix Display with Angled Design: The large, easy-to-read screen is designed with a slanted angle, enhancing visibility during testing.
- Wide Component Compatibility: Supports PNP and NPN bipolar transistors, N/P channel MOSFETs, JFETs, diodes, dual diodes, SCRs, resistors, capacitors, and inductors.

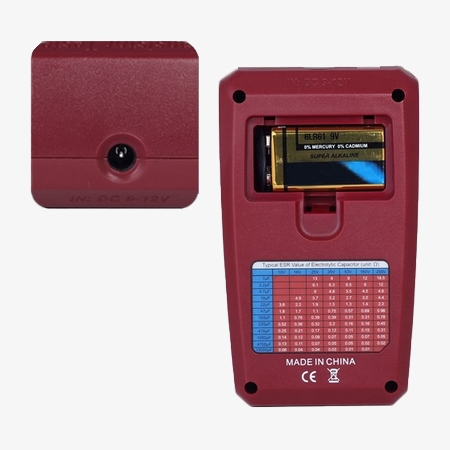

- Multiple Power Supply Options: The SISCO ESR02 transistor tester can be powered by a 9V battery (6F22 multimeter battery) or via DC input of 9-12V, offering versatile power solutions.
- Supports Various SMD Components: Compatible with a wide range of surface-mounted devices (SMD), including inductors, capacitors, SMA, SMB, SMC, TO-252, SOT23, STOP8, and sizes like 0603, 0805,
and 1206.
- Spring-Loaded Socket: ESR transistor meter features a spring-type socket that accommodates various 2- or 3-pin plug-in components for easier and faster testing.
- External Probe Interface: Portable transistor meter equipped with external probe ports that support multimeter probes, alligator clips, and capacitor test clips for flexible testing needs.

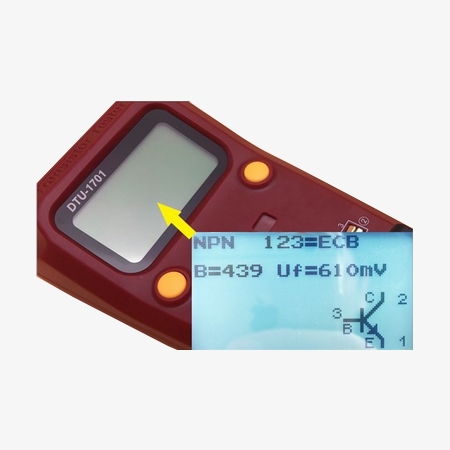

- Transistor and MOSFET Diode Detection: Detects and displays the internal protection diodes of bipolar transistors and MOSFETs, including their orientation on the screen.
- Inductance Measurement Range: Measures inductances from 0.01mH to 20H; values beyond this range, or with DC resistance above 2.1K, are displayed as resistance.
Applications
SISCO transistor tester is ideal for product development, household appliance repair, and scientific research, providing precise and efficient testing for a wide range of electronic components. Its versatility makes it suitable for engineers, technicians, and researchers alike.
Appliance Repair
Product Development
Scientific Research
Educational Institutions

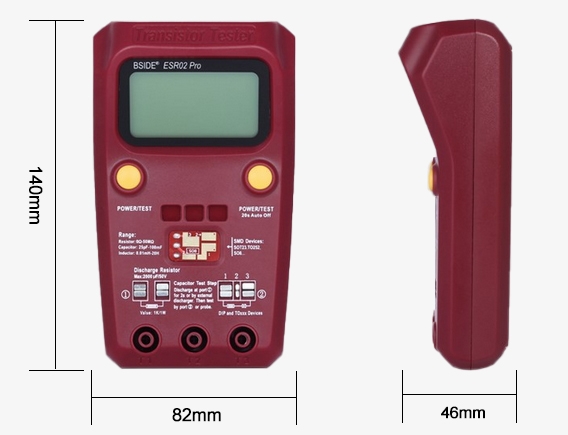

Dimension
Â
| Model | SISCO-ESR02PRO | |
| Technical Indicators | Range | Accuracy |
| Resistor | 0Ω-50MΩ | 0.01Ω |
| Capacitor | 25pF-100mF | 1pF |
| Inductor | 0.01mH-20H | 0.01mH |
| Capacitor ESR | 2μF-50mF | 0.01Ω |
Note:
- Please ensure the capacitor is fully discharged before testing, as failure to do so may damage the transistor tester.
- When using an adapter, make sure to use one with a voltage range of DC 9V-12V (including 9V and 12V).
- This transistor meter does not charge batteries. When the battery voltage drops below 6V, please replace the battery.
Details
Q1: What is a transistor tester?
A1: A transistor tester is a device used to test and measure various electronic components, such as transistors, diodes, capacitors, resistors, and more. It helps identify component type, functionality, and key parameters like voltage and resistance.
Q2: How does a transistor tester work?
A2: A transistor tester works by applying a small current to the transistor's terminals to measure its electrical properties. It identifies the type of transistor (NPN or PNP) and checks for key parameters like gain (hFE), leakage current, and junction voltage, helping to determine if the transistor is functioning properly.
Q3: How does the tester identify transistors and diodes?
A3: The tester identifies transistors and diodes by automatically analyzing the connections and properties of the component's terminals. It measures key parameters such as voltage, current, and polarity to determine the type of component and its characteristics.
Tips: Is the SISCO Transistor meter compatible with both NPN and PNP transistors?
Yes, the SISCO digital transistor meter is compatible with both NPN and PNP transistors. It is designed to detect and analyze a wide range of components, including bipolar transistors like NPN and PNP types. The tester not only identifies the type of transistor but also provides detailed information about its internal characteristics, such as the presence and orientation of protection diodes. This makes it a versatile tool for testing and troubleshooting various transistor types, offering precise and reliable measurements for both NPN and PNP configurations. Its broad compatibility makes it an essential device for electronics enthusiasts and professionals alike.
