The no touch ir red thermometer series features adjustable high and low-temperature visual and audio alarms, with a response time of less than 250ms. The emissivity is adjustable, and it can store up to 5 preset emissivity settings. Additionally, it is equipped with a trigger lock function, maximum/minimum/average value hold function, and comes with a tripod stand, making it ideal for monitoring temperature in various process applications.
High-Efficiency Temperature Measurement
- 12:1 D:S ratio.
- Adjustable emissivity 0.1~1.0.
- ±1.5℃ temperature measurement accuracy.
- High contrast EBTN color display.
- MAX/MIN/AVG/DIFF/Hold modes.

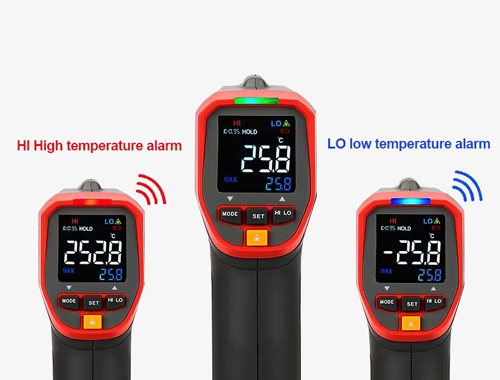

High and Low Temperature Alarm Function
- With red/green/blue three-color LED and buzzer sound alarm prompt functions, abnormalities can be quickly detected.
- HI alarm: When the temperature exceeds the set maximum temperature, the LED indicator turns red and an alarm sounds.
- LO alarm: When the temperature is lower than the set minimum temperature, the LED indicator turns blue and an alarm sounds.
Applications
The advanced and professional ir non-contact thermometer from SISCO features fast response speed, high accuracy, and strong sensitivity. It is an essential tool for engineers and technicians in various fields, including power distribution inspection, HVAC maintenance, transportation equipment inspection, and equipment repair. These attributes make it indispensable for professionals dedicated to maintaining and optimizing technical systems, ensuring safety, efficiency, and reliability in their operations.
HVAC Maintenance
Traffic Facility Inspection
Equipment Repair
Power Distribution Inspection
| Model | SISCO-ITHM-301A | SISCO-ITHM-302A | SISCO-ITHM-303A |
| Optical Resolution | 12:1 (calculated at 95% energy) | 20:1 (calculated at 90% energy) | 30:1 (calculated at 90% energy) |
| Temperature Range | -32°C~420°C / -25.6°F~788°F | -32°C~700°C / -25.6°F~1292°F | -32°C~800°C / 25.6°F~1472°F |
| LCD Size | 30*30mm | 35*35mm | |
| LCD Display | EBTN color screen | ||
| Accuracy | <0°C: ± (1.5°C+0.1°℃/°C); ≥0℃: ± 1.5°C or ± 1.5% of reading <32°F: ± (3.0°C+0.1°F/°F); ≥32°F: ± 3.0°F or ± 1.5% of reading |
||
| Temperature Coefficient | ± 0.1°℃/°C (±0.1F/°F) or, ± 0.1% of reading per degree |
||
| Repeatability | 0.7°C or 0.7%, (1.5F or 0.7%) | ||
| Emissivity | 0.1~1.0 (adjustable, 5 groups of reserve values can be set) | ||
| Response Time | < 250ms (95% of reading) | ||
| Spectral Response | 8um~14um | ||
| Automatic Shut-Down | 15s | ||
| Low Voltage Indication | √ | ||
| High and Low Temperature LED Alarm | √ | ||
| High and low Temperature Sound Alarm | √ | ||
| Digital Hold | √ | ||
| Unit Conversion (°C/°F) | √ | ||
| Maximum/Minimum/Average/Difference | √ | ||
| Lock Measurement | √ | ||
| Laser | Single laser aiming, wavelength 630nm~670nm, output power <1mW, Class 2 laser product | ||
| Battery Type | 9V battery (6F22) | ||
| Weight | 204 g | 310 g | 310 g |
| Dimensions | 161.5x90x48mm | 179x126.5x53mm | |

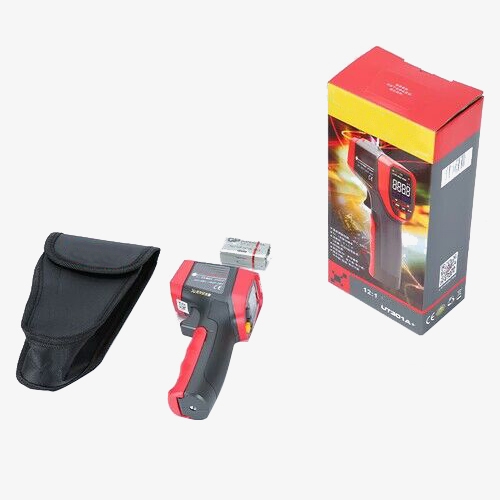

Packing List
- 1 x Infrared Thermometer
- 1 x Bag
- 1 x Box
- 1 x Battery
Q1: What are some applications of infrared thermometer in industry?
A1: Infrared thermometers find numerous applications across various industries due to their non-contact nature, speed, and accuracy. Some common industrial applications include: manufacturing, HVAC(Heating, Ventilation, and Air Conditioning), electrical maintenance, food processing, metallurgy, automotive, building inspection, firefighting etc.
Q2: How do you store an infrared thermometer?
A2: When storing your infrared thermometer, choose a clean, dry spot away from extreme temperatures. Keep it protected in its case to prevent dust buildup and damage. Regularly check for signs of wear or damage to maintain its accuracy.
Q3: How far away should you hold an infrared thermometer?
A3: The distance at which you should hold an infrared thermometer depends on its spot ratio, which is the ratio of the distance from the thermometer to the object being measured to the diameter of the measurement area. Typically, the manufacturer specifies the spot ratio for the thermometer. As a general guideline, hold the thermometer at a distance that ensures the measurement spot covers the entire target area, ensuring accurate readings.
Tips: How does a infrared thermometer work?
An infrared thermometer works by detecting infrared radiation, a type of electromagnetic radiation that objects emit as a function of their temperature. Here’s a step-by-step explanation of how it operates:
1. Emitted Infrared Radiation: All objects emit infrared radiation proportional to their temperature. The hotter the object, the more infrared radiation it emits.
2. Detection: The infrared thermometer has a lens that focuses this emitted infrared radiation onto a detector, typically a thermopile or pyroelectric sensor.
3. Conversion to Electrical Signal: The detector converts the infrared radiation into an electrical signal. The intensity of the radiation (which correlates with the temperature of the object) determines the strength of the electrical signal.
4. Signal Processing: The electrical signal is processed and converted into a temperature reading. The thermometer uses algorithms to account for emissivity (how effectively an object emits infrared radiation) and other factors to ensure accurate temperature measurement.
5. Display: The processed temperature reading is then displayed on the thermometer's screen, providing the user with the temperature of the target object.
In summary, an infrared thermometer measures the infrared radiation emitted by an object and converts it into an electrical signal, which is then processed and displayed as a temperature reading.
