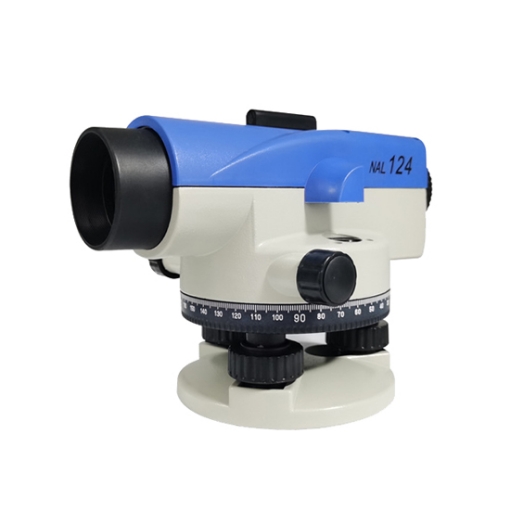

    Automatic Leveller, 24X Magnification

    Good price high-accuracy automatic leveller with 24X magnification, differential difference per kilometer round-trip measurement standard of ±2mm, anping accuracy less than 0.5″, anping compensation of 15', mirror diameter of 36mm. Auto level with a 24x magnification lens, the image is clear and the sealing protection is durable.
    SKU: SISCO-AL-24X
    $359.23
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    SISCO automatic leveller offers a standard deviation of 2mm per kilometer. 24X automatic optical level with an air damping compensator, which can work in windy places and places with large temperature changes.

    32X automatic level detail

    Blister viewer

    • Adjust the hand wheel of the foot screw to center the circular bubble and rotate the instrument 180°.
    • Round blisters should be in the center or they need to be corrected.
    32X automatic level detail

    The automatic level with clear dial

    • 360° horizontal scale display, scale positioning mark
    • The scale is clear and easy to read.


    Applications

    Automatic levels play a crucial role in ensuring accurate and precise measurements in various surveying and construction projects. SISCO auto level is commonly used in surveying and construction applications such as railway construction,wall girder construction, site construction and tunnel construction to measure elevations, establish horizontal lines, and perform various surveying tasks.

    Wall girder construction

    Wall Girder Construction

    Site construction

    Site Construction

    Tunnel construction

    Tunnel Construction

    Railway construction

    Railway Construction

    Specs



    Model SISCO-NAL-124
    Telescope multiplier rate 24X
    Differential difference per kilometer round-trip measurement standard ±2mm
    Mirror diameter 36mm
    Anping accuracy <0.5
    Anping Compensation <15
    Circular foam accuracy 8/ 2mm
    Short Sight Distance 0.8m
    Multiply Constant 100
    Dust -proof waterproof level IP55


    Detail

    24X automatic level detail

    FAQs

    Q1: What are the key features to consider when choosing an automatic level?
    A1: Important features to consider include the magnification and aperture of the telescope, the accuracy and range of the instrument, the quality of the compensator mechanism, the durability and portability of the unit, and compatibility with accessories such as tripods and measuring rods.

    Q2: How do I calibrate an automatic level?
    A2: Automatic levels typically require periodic calibration to ensure accuracy. Calibration procedures may vary depending on the manufacturer and model of the instrument, but generally involve adjustments to the compensator mechanism and verification of the instrument's accuracy using known reference points or benchmarks.

    Q3: Can automatic levels be used in low light conditions?
    A3: Many automatic levels are equipped with built-in compensators that provide reliable performance even in low light conditions. However, for optimal results, it is recommended to use automatic levels in well-lit environments or to supplement with external lighting sources when necessary.

    Tips: What are the advantages of using an automatic leveller?

    Advantages of using an automatic leveller include:

    • Accuracy: Provides precise measurements with minimal user adjustment.
    • Efficiency: Speeds up the leveling process with automatic compensation.
    • Ease of Use: Simple to set up and operate, even for beginners.
    • Reliability: Robust design suitable for various field conditions.
    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
