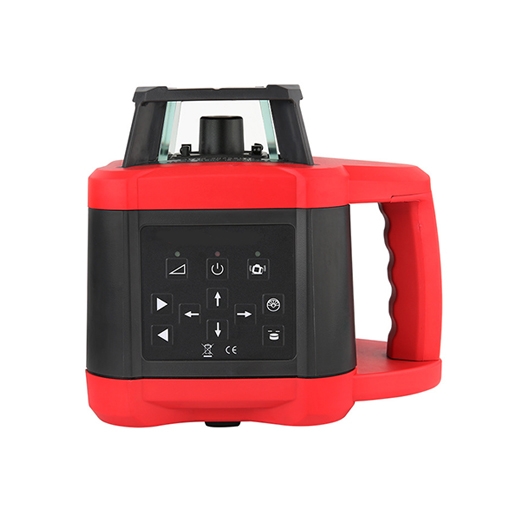

High-accuracy rotary laser level with red laser diode, 0/60/120/300/600 rpm adjustable rotation speed, 0°, 10°, 45°, 90°, 180° various directional scanning widths. The self leveling rotary laser level provide 360-degree coverage, high accuracy, versatility for indoor and outdoor use, making them essential for precise and efficient alignment and leveling tasks.

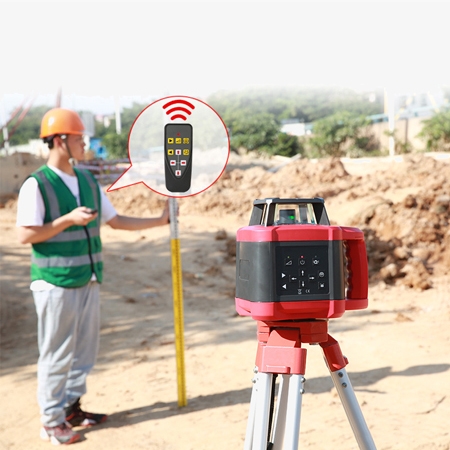

Remote control operation
- The infrared rotary laser level can be controlled remotely. The remote control panel has nine keys. Each time a key is pressed, the indicator light on the panel will flash, indicating that a signal has been sent.
- The rotary laser level is compatible with a remote control for easy adjustments and operation from a distance.
- The remote control is compact and easy to carry, with a clip or lanyard for convenient access during projects.
The laser level design with leveling mode
- The instrument can be controlled to be within 5° of manual or automatic mode, and the instrument is automatically leveled.
- The rotary laser level has an efficient self-leveling mechanism that quickly adjusts to create a perfectly level line, reducing setup time and increasing accuracy.

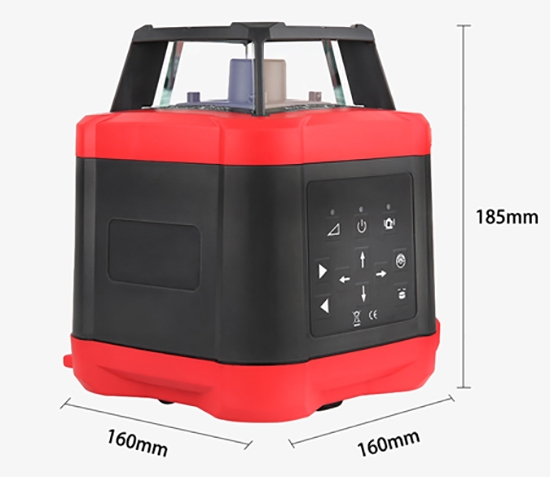

Dimension
Applications
SISCO high-intensity laser level is a common measuring tool for measuring angles. The high-precision green light level can be widely used in metallurgical steel plate cutting, stone cutting, wood cutting, machine vision and other fields.
Stone Cutting
Wood Cutting
Machine Vision
Metallurgical Steel Cutting
| Model | SISCO-LL-LM581R |
| Light Source | Red laser diode |
| Laser Wavelength | 635 nm |
| Automatic Leveling Range | ±5° |
| Working Measurement Range (Diameter) | 500m (with detector) |
| Adjustable Rotation Speed | 0/60/120/300/600 rpm |
| Directional Scanning | 0°, 10°, 45°, 90°, 180° |
| Slope Setting Range | ±5° (bidirectional) |
| Measurement Accuracy | ±20" |
| Laser Plummet Accuracy | ±1mm/1.5m |
| Remote Control Distance | 20m |
| Power Supply | (4*4000mAh Ni-MH rechargeable batteries in series) NiMH rechargeable battery pack |
| Continuous Working Time | 20 hours |
| Working Temperature | -20℃~50℃ |
| Size | 160*160*185mm |
| Weight | 2 kg |

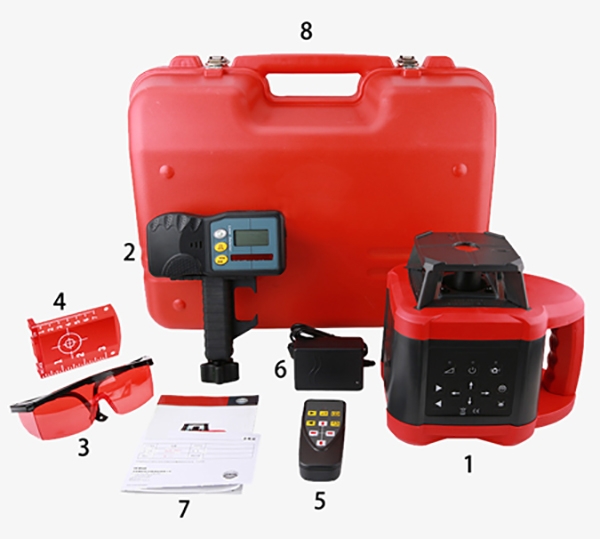

Packing List
- 1*Infrared rotary laser level
- 1*Receiver (clamp)
- 1*Protective glasses
- 1*Laser target
- 1*Remote controller
- 1*Charger
- 1*Instruction manual
- 1*Tool box
Q1: Can a rotary laser level be used outdoors?
A1: Yes, rotary laser levels can be used outdoors. However, the visibility of the laser beam can be an issue in bright sunlight. Using a laser detector can help you locate the beam and maintain accuracy over longer distances.
Q2: What are laser levels used for?
A2: A laser level tool is a construction tool that uses a laser to detect the vertical position of the object. It's used for measuring distances and heights, as well as for aligning objects on different levels.
Q3: What is a rotary laser level and how does it work?
A3: A rotary laser level is a leveling tool that projects a 360-degree laser beam around a room to create a level line. It consists of a laser emitter that spins rapidly to create a horizontal or vertical plane, which can be used for various leveling and alignment tasks.
Tips: How to maintain the rotary laser level?
Maintaining a rotary laser level involves several key steps to ensure its accuracy and longevity:
- Keep It Clean: Regularly wipe the laser level with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals or solvents.
- Proper Storage: Store the laser level in its protective case when not in use to prevent damage and keep it away from extreme temperatures and humidity.
- Check Calibration: Periodically check the calibration according to the manufacturer's instructions and recalibrate if necessary to ensure accurate measurements.
- Battery Maintenance: Keep the batteries charged and replace them as needed. If the laser level uses rechargeable batteries, follow the manufacturer’s guidelines for charging and storage.
- Inspect for Damage: Regularly inspect the device for any signs of wear or damage, such as cracks or loose parts, and address any issues promptly.
- Use as Directed: Follow the manufacturer's instructions for use and maintenance to ensure optimal performance and avoid voiding the warranty.
