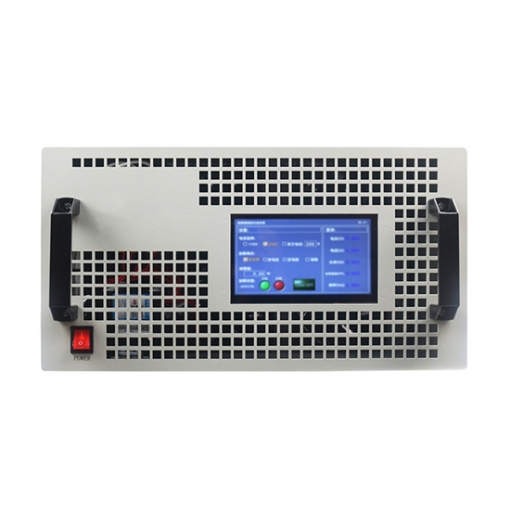

6 kW programmable AC electronic load tester with a 7-inch capacitive touchscreen, the large, responsive display enhances usability and streamlines the testing process. Safeguard your equipment with multiple protection functions, including over-voltage, over-current, over-power, and over-temperature protection.
- 4 Operating Modes: The programmable AC electronic load supports four distinct operating modes: constant power, constant current, constant resistance, and short circuit.
- Four-Digit Precision Display: The programmable AC electronic load tester is equipped with a high-resolution four-digit display, ensuring precise and accurate readings.
- 7-Inch Capacitive Touchscreen: It features a 7-inch capacitive touchscreen that allows for easy and intuitive operation.
- Automatic Compensation Function: The AC electronic load device includes an automatic compensation function that adjusts settings in real-time to maintain stable operation.
- Intelligent Temperature-Controlled Fan: An intelligent temperature-controlled fan automatically adjusts its speed based on the load's temperature, providing efficient cooling and reducing noise for optimal performance and longevity.
- Multiple Protection Features: The programmable ac electronic load simulator incorporates multiple protection features, including overvoltage, overcurrent, overpower, and overtemperature protection.
- RS-232 Interface: SISCO 6 kW programmable AC electronic load comes with an RS-232 interface for easy communication with external devices and systems, allowing for remote control, data logging, and integration into automated test setups.
Applications
SISCO Electronic Loads are primarily used to test and evaluate power supply devices' performance and stability. They are widely used in power supply design, production testing, quality control, and research and development, simulating real load conditions to verify the reliability and efficiency of power products.
Production Test
R&D
Quality Control
Power Design
Â
| Model | SISCO-AEL-6000 | |
| Working Power | Input Voltage | AC220V±10%, 50Hz; 110V, 60Hz |
| Rated Power | 100W | |
| Communication | RS232 | Baud rate 9600 |
| Load Function | Input Voltage | AC80~240V, rated AC110V/AC220V |
| Input Frequency | 50Hz/60Hz | |
| Rated Power | 6000W | |
| Rated Current | 54A@105~ 135V, 27A@215~240V | |
| Power Setting Accuracy | 20W | |
| Current Setting Accuracy | 0.09A | |
| Load Return Actual Accuracy | -3% +1.5% or ±20W | |
| Resistance Setting Range and Accuracy | 2~ 6000@110V, 7~2400Ω@220V，±5% | |
| Power Factor | PF=1.0 | |
| Heat Dissipation Method | Air cooling | |
| Other Functions | Unloading/short circuit | |
| Measurement and Error | Voltage | ±(0.1% of reading + 0.2% of range) |
| Current | ±(0.1% of reading + 0.1% of range) | |
| Active Power | ±(0.1% of reading + 0.1% of range) | |
| Frequency | ±0.1% | |
| Power Factor | ±0.02 | |
| Protective Function | Overvoltage | √ |
| Overpower | √ | |
| Overtemperature | √ | |
| Working Environment | Temperature | 0~60℃ |
| Humidity | ≤85%RH | |
| Atmospheric Pressure | 86~ 106kPa (4000 meters above sea level and below) | |
| Dimension | 483mm x 632mm x 264mm  | |
| Weight | 27.5kg | |
Dimension
Q1: What is adjustable electronic load?
A1: An adjustable electronic load is a versatile testing device used to simulate various load conditions on power sources by allowing users to configure the load parameters to meet specific testing requirements. This flexibility makes it a valuable tool for evaluating the performance and reliability of power supplies, batteries, and other electronic devices.Â
Q2: How does an electronic load work?
A2: An electronic load works by simulating a real-world load on a power source, such as a battery or power supply, to test its performance and behavior under various conditions. It achieves this by dynamically adjusting its internal resistance to maintain a set current, voltage, resistance, or power level, depending on the selected operating mode (Constant Current, Constant Voltage, Constant Resistance, or Constant Power). The electronic load can accurately control and measure the input parameters, providing valuable data on the power source's capabilities, efficiency, and stability under different load scenarios.
Q3: What is an electronic load used for?
A3: An electronic load is used to test and evaluate the performance of power sources such as power supplies, batteries, and solar panels. It simulates various load conditions by drawing controlled amounts of current or power, allowing engineers to assess the reliability, efficiency, and behavior of the power source under different operating conditions. Electronic loads are essential in research and development, quality assurance, and production testing, helping ensure that power devices meet specified performance standards and can handle real-world usage scenarios.
Tips: How is a programmable AC electronic load used?
A programmable AC electronic load is used by connecting it to the AC power source being tested. Users can input desired test parameters, such as load profiles and dynamic testing scenarios, via the device's interface or through external control software. The load can simulate various operating conditions by adjusting its settings in real time, allowing for comprehensive evaluation of the power source's performance, stability, and efficiency under different loads.
