    9kHz~3GHz Radio Frequency Generator

    Buy the SISCO radio frequency generator, offering outstanding performance with a frequency range from 9kHz to 1.5GHz or 3GHz. It features a maximum output power typically up to +20dBm and phase noise typically up to -105dBc/Hz. This portable device is ideal for applications such as educational laboratories, industrial production lines, and research and development.
    SKU: SISCO-RFG-DSG830
    *
    *
    *
    *
    $11,392.31
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview

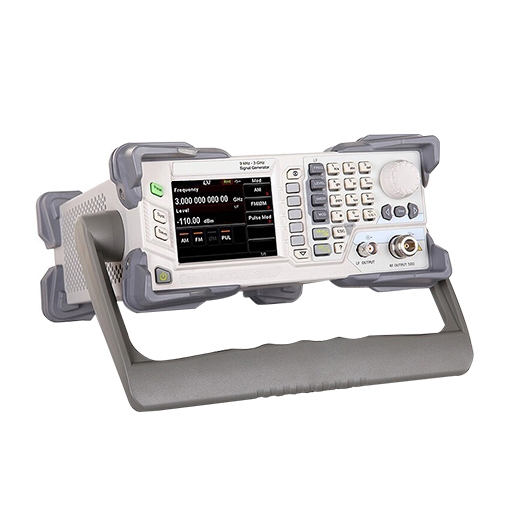

    The 9kHz~3GHz radio frequency generator is designed as a handheld device, offering a compact and portable solution with competitive pricing for various applications.

    Digital rf generator size

    Digital RF Generator High Signal Purity

    • Excellent phase noise metrics. High signal purity, phase noise <-105dBc/Hz@20kHz typical, with optional high stability clock reference for even better near-side phase noise metrics.

    • High power output over a wide frequency band. max output amplitude up to +13dBm (nominal) can be set to +20dBm to meet the amplifier nonlinearity test.

    • Excellent amplitude accuracy. The amplitude accuracy of the output reaches 0.5 dB typical value, which can provide users with accurate excitation signals.

    Digital rf generator detail

    Highly Repeatable and Superior Pulse Modulation

    • Excellent repeatability provides engineers with sufficient test confidence, with less than 0.02 dB output amplitude change over 72 hours.

    • Good pulse modulation function. Generates high-quality pulse modulation signals with a typical rise/fall time of less than 10ns and an on/off ratio of more than 70 B. Supports both internal and external modulation. The built-in pulse generator can generate pulse sequences and output them externally as a standalone pulse generator.

    Applications

    The SISCO RF generator is a device used to generate radio waves for a wide range of applications in telecommunications, medical imaging, radar, broadcasting, semiconductors, military, education and consumer electronics. It is mainly used to test and calibrate various RF devices and systems to ensure their performance and quality, and also plays an important role in research and development.

    Digital rf generator for medical images

    Medical Imaging

    Digital rf generator for radar system

    Radar Systems

    Digital rf generator for educational and research

    Educational and Research

    Digital rf generator for telecommunications testing

    Telecommunications Testing

    Specs



    Model SISCO-RFG-DSG830
    Frequency range 9kHz~3GHz
    Amplitude indicator range -110dBM to +13dBM
    Amplitude setting range -110dBM to +20dBM
    Amplitude accuracy <0.9dB (<0.5dB typical)
    Clock reference stability <2ppm, <5ppb (with high stability clock reference option B08)
    Spectral purity SSB phase noise 100KHz≤f≤1.5GHz,<-100dBc/Hz(<-105dBc/Hz typical)
    1.5GHz≤f≤3GHz, <-94dBc/Hz(<-99dBc/Hz typical)
    CW mode, carrier bias = 20KHz
    Harmonic distortion <-30dBc CW mode 1MHz≤f≤3GHz Output level≤+13dBm
    Non-harmonic distortion 100KHz≤f≤1.5GHz, <-60dBc/Hz (<-70dBc/Hz typical)
    1.5GHz≤f≤3GHz, <-54dBc/Hz (<-64dBc/Hz typical)
    Scan Scan mode Linear scanning, step/list scanning single/continuous scanning
    Scanning points 2~65535 (step scan); 1-600 1 (list scan)
    Modulation type AM, FM, PM, Pulse modulation
    AM Modulation depth 0%-100%
    Modulation accuracy <set value x4%+1%
    Modulation frequency response 10Hz~10KHz(<3dBm,m<80%)
    FM Max frequency bias 125KHz-1MHz (nominal value, video segment range varies)
    Modulation accuracy <setting value x2%+20Hz
    Modulation frequency response 10Hz 100KHz (<3dB)
    PM Max frequency bias 0.15625-20 rad (nominal value, video segment range varies)
    Modulation accuracy <set value x1%+0.1 rad
    Modulation frequency response 10Hz-100KHz (<3dB)
    Pulse modulation On/Off ratio >70dB (100KHz<f≤3GHz)
    Rise/fall time <50ns, 10ns typical
    Pulse form Single pulse, pulse train (option PUG-DSG800)
    General features
    Interface settings Standard: USB, LAN
    Front panel: RF output, internal modulation generator (LF) output
    Rear panel: External trigger input signal, signal valid
    Signal valid, pulse in/out
    External modulation input ext mod, reference clock 10MHz ref in/out



    Details

    Digital rf generator details

    Digital rf generator back detail

    FAQs

    Q1: What is an RF generator?
    A1: An RF generator (Radio Frequency generator) is a device that produces radio frequency signals, typically used for testing, research, and communication purposes. It generates specific frequencies and power levels to simulate or stimulate RF circuits, antennas, and other components in electronics and telecommunications.

    Q2: How does an RF generator work?
    A2: An RF generator produces radio frequency signals by generating oscillations at specific frequencies. It uses an oscillator circuit to create the signal, which can then be amplified and optionally modulated. The output signal is used for testing, communication, and other electronic applications.

    Q3: What is the difference between AF and RF signal generators?
    A3: The key difference between AF (Audio Frequency) and RF (Radio Frequency) signal generators lies in the frequency range they operate in:

    • AF Signal Generator: Produces signals in the audio frequency range, typically from 20 Hz to 20 kHz. These signals are used in audio equipment testing, sound system calibration, and other applications involving audible frequencies.
    • RF Signal Generator: Operates in the radio frequency range, which can vary from about 20 kHz to several GHz. These signals are used for testing and designing radio, communication systems, and other high-frequency electronic devices.

    Tips: What is the frequency range of an RF generator?

    The frequency range of an RF generator typically spans from around 10 kHz to several gigahertz (GHz), depending on the specific device and its application. Basic RF generators might cover a range from 10 kHz to a few hundred MHz, which is suitable for testing radio and communication equipment operating at lower frequencies.

    More advanced RF generators, especially those used in modern telecommunications and wireless technology, can operate in the GHz range, often reaching up to 6 GHz or even higher, extending into the millimeter-wave frequencies (30 GHz and above) for specialized applications like radar and 5G testing. The exact frequency range depends on the model and purpose of the RF generator.
