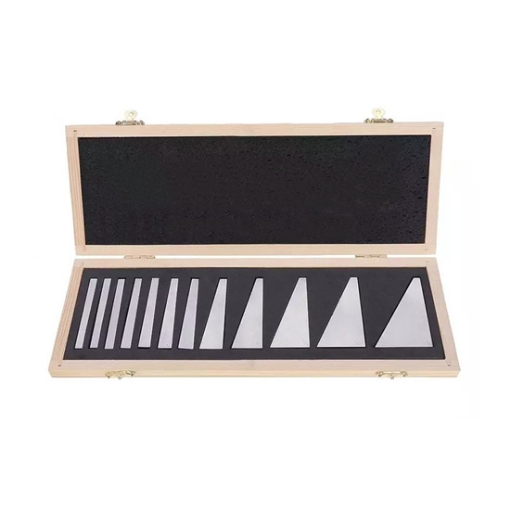

    12 Pcs Angle Gauge Block Set

    Angle gauge block set for sale at a low price. Includes 12 steel blocks with different angles. Made of durable manganese steel for precise angle measurement in machining and inspection. Perfect for calibration and quality control.
    SKU: SISCO-AGBS-12
    $89.86
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview

    This 12-piece angle gauge block set is made from high-quality manganese steel for durability and precision. Designed for accurate angle measurement and calibration, it’s ideal for machining, inspection, and quality control. Its high-hardness construction ensures long-lasting performance in industrial and laboratory settings.

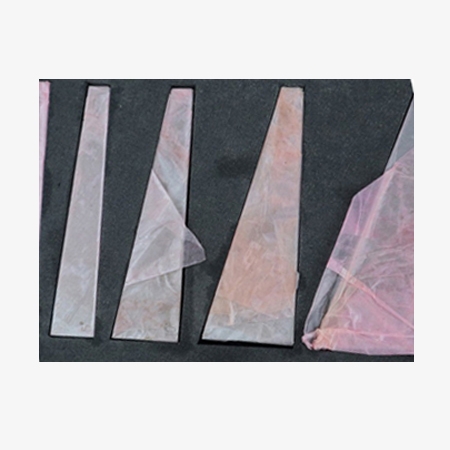

    12 pcs angle gauge block set detail

    Advanced Technology for Durability and Precision

    • This angle gauge block set is made with advanced technology, ensuring stable quality, complete specifications, high hardness, and excellent wear resistance.
    • The surface has a protective oil film, allowing for long-term, repeated use while maintaining accuracy and reliability.

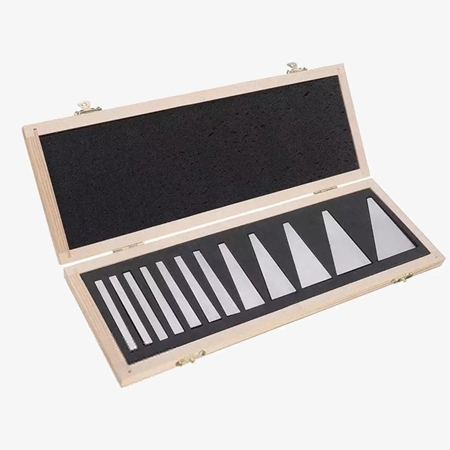

    12 pcs angle gauge block set details

    Precision and Portability with Reliable Quality

    • The manufacturing process of this gauge block set follows strict quality control standards to guarantee consistent performance.
    • SISCO measuring set is compact and easy to carry, housed in a durable hard-shell box for secure storage and safe transport.

    Applications

    Angle gauge blocks can be used for precision angle measurement, machine tool setup, instrument calibration, jig and fixture alignment, and quality control. They provide accurate angle references for inspecting and adjusting machining tools, verifying instruments like protractors and inclinometers, and ensuring proper workpiece positioning in manufacturing and metrology applications.

    Angle gauge block for machining

    Machining

    Angle gauge block for instrument manufacturing

    Instrument Manufacturing

    Angle gauge block for construction

    Construction

    Angle gauge block for aerospace

    Aerospace

    Specs



    Model SISCO-AGBS-12
    Material 65Mn Steel
    Angle Measuring Range 1/4°, 1/2°, 1°, 2°, 3°, 4°, 5°, 10°, 15°, 20°, 25°, 30°
    Angle Error Margin ±20'
    Package Includes 12 × angle blocks
    1 × carrying case
    FAQs

    Q1: What are the different grades of gauge blocks?
    A1: Gauge blocks come in different grades based on their precision and intended use. The main grades include:

    • K Grade (Calibration Grade) – Highest accuracy, used in national metrology labs for primary calibration.
    • Grade 00 – High precision, used in calibration labs and inspection rooms.
    • Grade 0 – Precision measurement for tool rooms and high-accuracy machining.
    • Grade 1 – General industrial inspection and high-precision manufacturing.
    • Grade 2 – Standard for workshops and production environments.
    • Workshop Grade – Lower precision, used for routine machine setup.

    Q2: How to select the right gauge block set?
    A2: Selecting the right gauge block set depends on accuracy requirements, material, grade, and measurement system. Consider the following:

    • Accuracy & Grade – Choose Grade K or 00 for laboratory calibration, Grade 0 for high-precision machining, and Grade 1 or 2 for general industrial use.
    • Material – Steel is durable, ceramic resists corrosion, and tungsten carbide offers extreme wear resistance.
    • Measurement System – Select metric (mm) or imperial (inch) based on your industry standards.
    • Number of Blocks – A larger set (81 or 103 pieces) provides more versatility, while smaller sets (36 or 46 pieces) suit basic applications.

    Q3: What is the difference between metric and imperial gauge block sets?
    A3: The difference between metric and imperial gauge block sets lies in their unit of measurement and step increments. Metric gauge blocks use millimeters (mm) as the standard and typically follow increments such as 1.001 mm, 1.002 mm, etc. Imperial gauge blocks use inches, often following increments like 0.1001 inches, 0.1002 inches, and so on. While both sets serve the same purpose—precise length measurement and calibration—their use depends on the measurement system required for specific tools, industries, or regions.

    Tips: How to maintain an angle gauge block set?

    Proper maintenance of an angle gauge block set ensures accuracy, longevity, and reliable performance. Here are the key maintenance steps:

    • Keep It Clean: Wipe after each use with a dry cloth; use isopropyl alcohol for stubborn residues.
    • Prevent Rust and Corrosion: Apply anti-rust oil and store in a dry place with silica gel packs.
    • Store Properly: Keep in a protective case and avoid stacking to prevent scratches.
    • Handle with Care: Avoid dropping or hitting surfaces; use gloves or clean hands.
    • Regular Calibration and Inspection: Check for wear and schedule professional calibration if used frequently.
    • Avoid Extreme Temperatures: Keep at room temperature to prevent metal expansion.
    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
