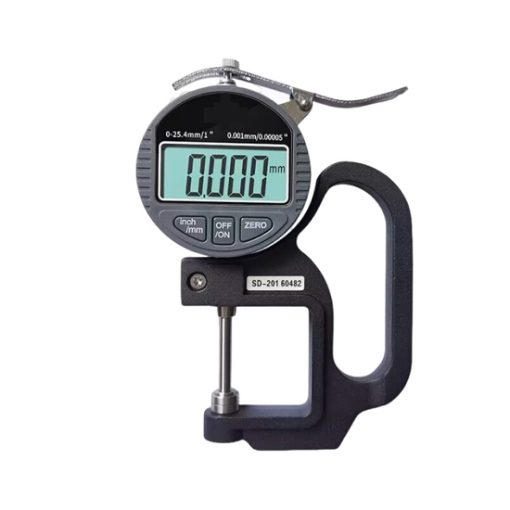

    1 inch/0-25.4 mm, 0.001mm/0.00005'' Digital LCD Thickness Gauge

    This portable digital LCD thickness gauge features 0.001mm resolution with 0-25.4mm/1'' measuring range; and a tolerance of ±0.005mm, making it ideal for the best measuring machine for measuring soft materials.
    SKU: SISCO-DTG-201-25-2
    $117.68
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    SISCO digital LCD thickness meter is compatible with flat measuring port and alloy measuring face, and it is widely used in soft materials thickness measurement.

    Digital lcd thickness tester details

    High-Efficiency Thickness Measuring Instrument with Advanced Technology

    • Equipped with imported measurement chip, the speed is as fast as 3 meters/second, making measurement easier.
    • Units convert between Metric and Inch, eliminating the need for additional unit conversions and saving measurement time.

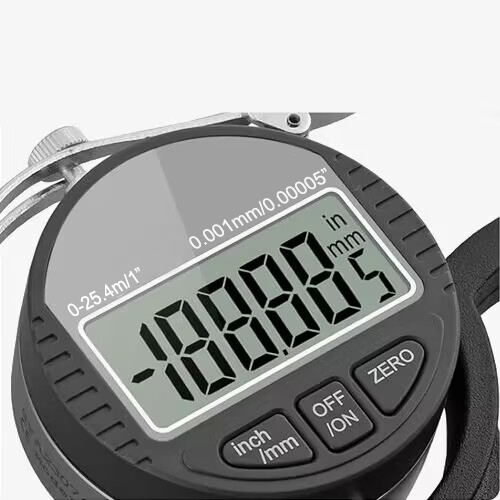

    Digital lcd thickness tester screen details

    Multifunctional Compact Digital Thickness Gauge Meter

    • Large LCD display bids farewell to "estimated reading", digital direct reading, clearer display.
    • Equipped with a zero-setting button, allowing for convenient measurement adjustments.
    • Finely ground alloy steel quenched measuring surface ensures that the measuring surface reaches the level of the gap when closed, ensuring accuracy.
    Digital lcd thickness tester

     Auto Shutdown Thickness Gauge with Long-Lasting Battery

    • Automatic shutdown function: After 180 seconds of inactivity.
    • Low energy consumption and long-lasting durability, equipped with 5 original batteries.
    • Convenient Ports: Port A: RS232 data output interface, conmunincate with PC via specifed data wire; Port B: LR44 battery compartment, easy to replace battery
      note: When not use for a long time, the battery should be removed to ensure longer use.


    Applications

    SISCO flat-head digital thickness tester is used for measuring soft materials such as leather, paper, and films. It leverages advanced digital technology to ensure precise and reliable thickness measurements. The flat-head design is ideal for soft and flexible materials, as it minimizes the risk of surface damage during the measuring process. Additionally, this gauge is known for its user-friendly interface and portability, making it suitable for a wide range of applications, including manufacturing, quality control, and research.

    Digital thickness gauges for fiber

    Fiber Thickness

    Digital thickness gauges for cable

    Cable Thickness

    Digital thickness gauges for leather

    Leather Thickness

    Digital thickness gauges for paper

    Paper Thickness

    Specs



    Model SISCO-DTG-201-25-2
    Measuring Range 0-25.4mm/1 inch
    Accuracy 0.001mm
    Tolerance ±0.005mm
    Supply Voltage 1.5V
    Dimensions 175mm*45mm*32mm



    Dimensions (mm)

    Digital lcd thickness tester dimension

    Details

    Digital lcd thickness tester button details

    Packing List

    • 1 x Digital thickness gauge
    • 1 x Box
    • 5 x CR2032 battery
    • 1 x User manual
    • 1 x Certificate

    0-0.5inch/0-12.7mm digital thickness gauges packing list



    FAQ

    Q1: What materials can be measured with a digital thickness gauge?
    A1: A digital thickness gauge can measure a variety of materials, including metals (such as steel, aluminum, and copper sheets and plates), plastics (various types of plastic films and sheets), glass (glass panels and sheets), rubber (rubber sheets and components), wood (wood panels and veneers), paper and cardboard (paper sheets and cardboard), composites (various composite materials used in aerospace, automotive, and other industries), ceramics (ceramic tiles and components), coatings (paint, varnish, and other surface coatings applied to substrates), and fabrics and textiles (fabric and textile sheets, especially in quality control and manufacturing processes). The versatility of a digital thickness gauge depends on its specific design, sensor type, and measurement range.

    Q2: How to maintain and care for a digital thickness gauge?
    A2: To maintain and care for a digital thickness gauge, regularly clean the device by wiping the probe and sensors with a soft, dry cloth to remove dust and debris. Store the gauge in its protective case to prevent physical damage and keep it in a dry, temperature-controlled environment to avoid extreme conditions. Perform regular calibrations as recommended by the manufacturer, using appropriate calibration standards to ensure accuracy. Replace batteries with the recommended type and remove them if the gauge will not be used for an extended period to prevent leakage. Handle the gauge gently to avoid drops and excessive force, and avoid exposing it to moisture. Regularly inspect the gauge for any signs of wear or damage, and address any issues promptly to ensure its reliability and performance.

    Q3: Do digital thickness testers need calibration?
    A3: A digital thickness gauge requires calibration to ensure its accuracy and reliability. Regular calibration is essential to provide precise measurement results, which are crucial in applications such as quality control, manufacturing, and material inspection. Calibration also helps maintain measurement consistency and prevent errors and discrepancies in repeated measurements. It is important to follow the manufacturer's calibration guidelines, using appropriate calibration standards or blocks, which are typically provided by the manufacturer and made from materials with known thicknesses. Calibration should be performed across the gauge’s measurement range to ensure accuracy at various thickness levels.

    Additionally, documenting the calibration date, standards used, and any adjustments made is crucial for quality control and compliance. Calibration frequency depends on the device’s usage and environmental conditions but is generally recommended before daily use, monthly, or annually, or after major events such as dropping the device, significant temperature changes, or repairs. By following these practices, you can detect and prevent performance issues, ensuring that the digital thickness gauge remains accurate and reliable throughout its use.

    Tips: How does a digital thickness meter work?

    A digital thickness gauge measures the thickness of materials with precision using electronic sensors and displays the results on a digital screen. The operation involves three main steps:

    1. Measurement Principle: The gauge uses capacitive, ultrasonic, or mechanical sensors to detect material thickness. Capacitive sensors measure thickness by detecting changes in capacitance between two electrodes; ultrasonic sensors calculate thickness by timing how long high-frequency sound waves take to travel through the material; mechanical sensors measure thickness by contacting the material and converting the mechanical movement into electronic signals.

    2. Signal Processing: The sensor converts the measured data into an electrical signal, which is processed by the gauge’s internal electronics. This signal is then converted into a digital thickness reading, displayed on the screen in units such as millimeters or inches.

    3. Additional Features: Many digital thickness gauges offer calibration functions, allowing for adjustments using known thickness standards to ensure accuracy. They may also support data storage and unit conversion for ease of use and record-keeping.

    These steps enable the digital thickness gauge to provide accurate and clear measurements, making it a valuable tool in quality control, manufacturing, and material testing.
