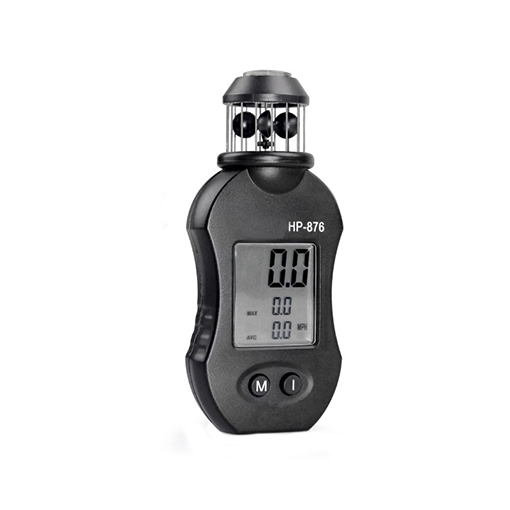

    Wind Cup Anemometer, 0~42 m/s

    Cheap price wind cup anemometer for sale online. The digital cup anemometer with a wind speed of 0.7~42 m/s, high accuracy of ±4%, and resolution of up to 0.1m/s. The cup anemometer is ideal for outdoor activities such as dust collection systems, drone flight, HVAC, etc.
    SKU: SISCO-CA-HP876
    $68.15
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    High-resolution cup-type anemometer design independent of wind direction thanks to horizontally rotating wind turbine shells. Only two buttons for switchable and is easy to use. SISCO 4-cup anemometer with its small size which is portable and easy to carry outside when you flying, surfing, or shooting.

    Wind cup anemometer detail

    Switch randomly between 5 units which can apply to different situations

    • The wind cup anemometer allows users to switch between five different measurement units—m/s, km/h, mph, ft/min, and knots—offering flexibility for various applications and user preferences.
    • Users can effortlessly toggle between units at the press of a button, making it simple to adapt the anemometer to different measurement systems without needing external tools.
    • By offering a range of units, the anemometer is suitable for both professional environments requiring precise data in specific units and recreational users who prefer familiarity with certain measurement systems.
    Wind cup anemometer detail

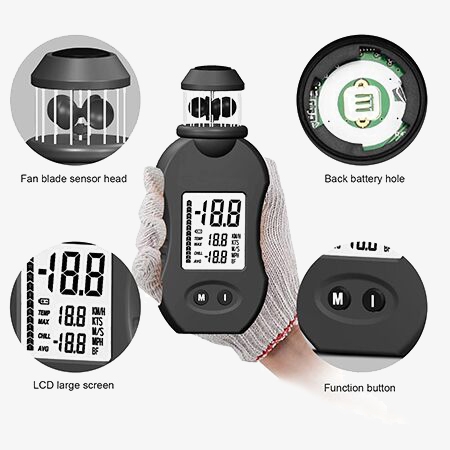

    Wind cup anemometer features

    • Fan Blade Sensor Head: Equipped with a highly sensitive fan blade sensor head, this wind cup anemometer captures wind speed with precision. The aerodynamic design ensures smooth and accurate rotation, even in low wind conditions, providing reliable readings across various environments.
    • Large LCD Screen: The device features a large, easy-to-read LCD screen that displays wind speed and other essential data clearly. Whether in bright sunlight or low-light conditions, the screen ensures visibility, making it convenient for real-time monitoring in the field.
    • Function Button: A central function button allows users to easily switch between modes and units. With a single press, you can toggle between real-time measurement, average wind speed, or change measurement units, offering intuitive control for fast and efficient use.
    • Back Battery Compartment: The anemometer is designed with a back battery hole, allowing for quick and easy battery replacement. The securely sealed compartment ensures that the device remains protected from dust and moisture while allowing users to replace batteries on the go without hassle.

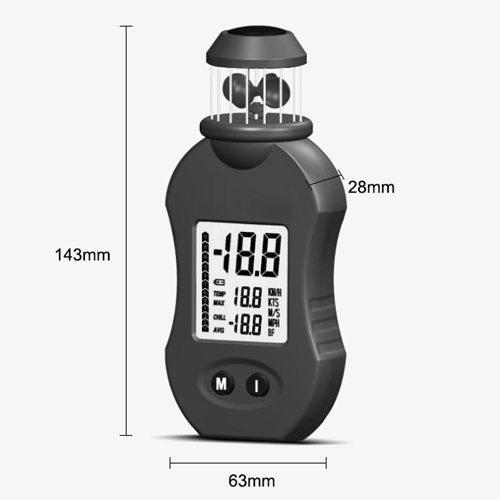

    Dimension

    Wind cup anemometer size

    Applications

    SISCO cup anemometer is widely used for data acquisition in boilers, refrigeration, HVAC, ventilation ducts, agriculture meteorological stations, meteorological monitoring for seaport, navigation, wind power, improved air circulation and daily speed measurement.

    Weighing indicator for wind power

    Wind Power

    Weighing indicator for improve air circulation

    Improve Air Circulation

    Weighing indicator for daily speed measurement

    Daily Speed Measurement

    Weighing indicator for navigation

    Navigation

    Specs



    Model SISCO-CA-HP876
    Measuring Range 2.5~150 km/h, 1.3~81 knots, 0.7~42 m/s, 1.5~93 mph
    Resolution 0.1 (0 19.9), 1 (20 15 0)
    Wind Speed Unit (adjustable) m/s, km/h, mph, ft/min, and knots
    Accuracy Typ. ±4%, ±1 digit
    Operating Temperature Range  -20~+50°C
    Storage Temperature Range -30~+70°C
    Automatic Shutdown About 8 days
    Tripod Thread U NC 6.35x1.27mm
    Battery Type CR2032 (original without battery, please note if battery is needed)
    Dimension 143x63x28 (+39 top mm)
    Weight 95g
    Screen Display
    Current Wind Speed
    Average Wind Speed
    Maximum Wind Speed
    Beaufort Wind Speed Bar Graph
    8-day Data Storage of Maximum Value
    FAQs

    Q1: How do you ensure accuracy of anemometer?
    A1: To make sure anemometers are reliable and precise, they should be regularly calibrated. This is the procedure of checking the accuracy of a measuring instrument – as well as the adjustment to align it with the standard. The process allows equipment to produce more accurate results than would've otherwise been possible.

    Q2: What affects an anemometer?
    A2: The higher the wind speed, the more power is required to keep the wire at a constant temperature. Wind speed can also be determined by measuring air pressure. (Air pressure itself is measured by an instrument called a barometer.) A tube anemometer uses air pressure to determine the wind pressure, or speed.

    Q3: Does an anemometer measure wind direction?
    A3: An anemometer looks like a weather vane, but instead of measuring which direction the wind is blowing with pointers, it has four cups so that it can more accurately measure wind speed. Each cup is attached to the end of a horizontal arm, each of which is mounted on a central axis, like spokes on a wheel.

    Tips: How does the fan blade sensor head of the wind cup anemometer work?

    The fan blade sensor head of a Wind Cup Anemometer operates by converting wind motion into measurable wind speed. Here's a step-by-step breakdown of how it works:

    • Wind Flow Hits the Blades: When wind flows, it strikes the fan blades or cups attached to the sensor head. The wind's force causes the blades to rotate.
    • Rotation Speed Proportional to Wind Speed: The rate at which the blades spin depends on the wind speed. Stronger winds cause faster rotations, while gentler winds result in slower rotations.
    • Mechanical to Electrical Signal Conversion: Inside the anemometer, a mechanism—typically a small generator or magnetic sensor—detects the rotation of the blades. It converts this mechanical motion into an electrical signal.
    • Data Processing: The device's electronics process the signal to determine the wind speed. The faster the blades spin, the higher the wind speed reading.
    • Display on Screen: The calculated wind speed is shown on the anemometer's display, usually in selectable units like meters per second (m/s), miles per hour (mph), or knots.

    This method allows the Wind Cup Anemometer to provide accurate, real-time measurements of wind speed based on the speed of blade rotation.

    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
