A wind cup anemometer is a commonly used wind measurement instrument in meteorological observation, environmental monitoring, and aerospace. It has broad application prospects in industrial production and other fields. Its accurate measurement is of great significance for research and applications in weather forecasting, climate research, aviation and navigation, and other fields.
Anemometer basic

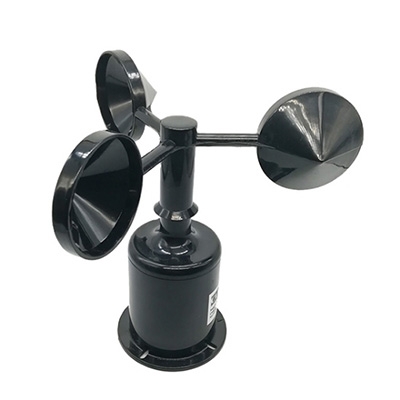

The cup anemometer is an instrument for measuring air flow velocity. Its sensing part consists of three parabolic cones fixed on the bracket at 120 degrees to each other.
It is composed of cups, and the concave surfaces of the empty cups all face one direction. The entire sensing part is installed on a vertical rotating axis. Under the influence of wind force, the wind cup rotates around the axis at a speed proportional to the wind speed. Cup anemometers have the advantages of large wind measurement range, high strength, and corrosion resistance, and are widely used in meteorological stations.
Therefore, the function of the cup anemometer is to measure wind speed, and its sensing part can measure the magnitude and direction of the average wind speed. Its working principle is to use wind power to drive the wind cup to rotate around its axis. The rotation speed is proportional to the wind speed. The wind speed is calculated by measuring the rotation speed.
Application in weather stations
Wind cup anemometers have multiple application scenarios in meteorological observations, mainly including the following aspects:
Wind speed measurement: A wind cup anemometer is one of the important tools for measuring wind speed. By measuring wind speed, meteorological stations can obtain wind direction, air pressure, temperature, and other meteorological parameters, and then conduct weather forecasts and climate analyses.
Extreme weather warning: In extreme weather events such as typhoons and tornadoes, accurate measurement of wind speed is very important for early warning and disaster prevention. The wind cup anemometer can monitor changes in wind speed in real-time. Provide a basis for disaster early warning and prevention.
Environmental monitoring: In the field of environmental monitoring, cup anemometers can be used to monitor the emission of air pollutants, evaluate air quality, and monitor the working status of ventilation and exhaust systems.
Aerospace: In the aerospace field, wind cup anemometers can be used to measure the wind speed and direction around the aircraft, which is very important for the design and performance testing of the aircraft.
Industrial manufacture: In the field of industrial production, cup anemometers can be used to monitor the working status of ventilation and exhaust systems, evaluate the performance and emissions of process equipment, etc.

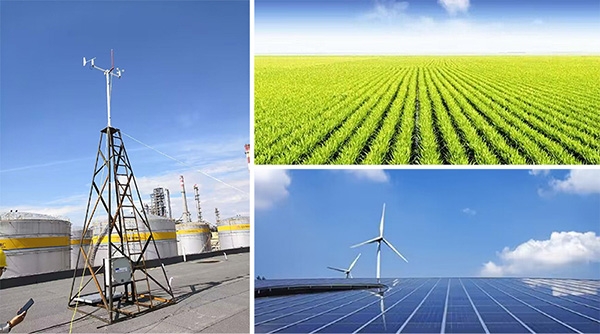

Applications in other fields
Energy field: In the energy field, wind cup anemometers are used to measure wind energy. By measuring wind speed and direction, parameters such as wind energy density and wind energy power can be calculated to evaluate the utilization potential of wind energy resources.
Environmental monitoring: In the field of environmental monitoring, cup anemometers are used to monitor the emission of air pollutants. By measuring the gas flow rate, the impact of the emission source on the surrounding environment can be evaluated and corresponding measures can be taken for treatment.
Transportation: In transportation, cup anemometers are used to measure air velocity, for example in the design and performance testing of aircraft, ships, and vehicles. By measuring the airflow velocity, the dynamic performance and stability of the vehicle can be evaluated, as well as the performance and safety of the aircraft.
Agricultural field: In the agricultural field, wind cup anemometers are used to measure the airflow speed in farmland, which is very important for agricultural production and crop protection. By measuring airflow velocity, ventilation and heat dissipation in farmland can be assessed, as well as preventing and controlling the spread of pests and diseases.
Importance of anemometer
The sensing part consists of three parabolic cone empty cups fixed on the bracket at 120° to each other. The concave surfaces of the empty cups are all oriented in one direction. The entire sensing part is installed on a vertical rotating axis. Under the action of wind force, the wind cup rotates around the axis at a speed proportional to the wind speed. In addition, by using flow field simulation software, the movement of the wind cup in the atmosphere can be simulated. By changing the structural parameters of the wind cup, the movement characteristics of the wind cup with different structural parameters in the atmosphere can be simulated, and the structure can be analyzed based on the results. The influence of parameters on the dynamic and static characteristics of the wind cup.
Wind speed is one of the important parameters in meteorological observations and plays an important role in weather forecasting, climate research, aviation and navigation, and other fields. Accurate measurement of wind speed is of great significance to research and applications in these fields. The wind cup anemometer is a commonly used
The wind measuring advantages
First of all, the cup anemometer has a simple structure, is easy to maintain and operate, has high reliability, and can be measured in various environmental and climatic conditions. Secondly, by measuring the rotation speed of the wind cup, the magnitude and direction of the wind speed can be calculated with high accuracy and suitable for various occasions that require precise measurement of wind speed. In addition, the cup anemometer can also be equipped with different sensing elements and recorders to realize automatic recording and transmission of data, improving the efficiency and accuracy of measurement.
In meteorological observations, the cup anemometer is one of the important tools for obtaining wind speed data. By using wind cup anemometers, weather stations can monitor and warn of natural disasters, such as typhoons, tornadoes, and other extreme weather events. In addition, cup anemometers also play an important role in environmental monitoring, aerospace, industrial production, and other fields. For example, it can be used in factories to monitor the working status of ventilation and exhaust systems and to evaluate the emission of air pollutants.
