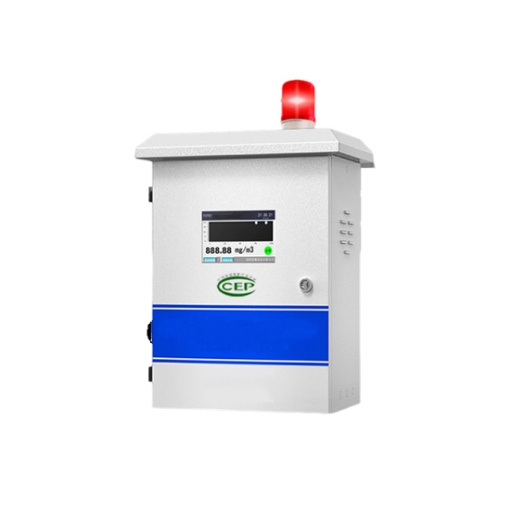

SISCO VOC online gas analyzer is equipped with a 7-inch high-definition touchscreen display, it provides an intuitive interface for real-time data visualization and operation. Whether for regulatory compliance, emissions control, or workplace safety, the VOC online monitoring system provides a comprehensive, real-time monitoring solution to meet your needs.

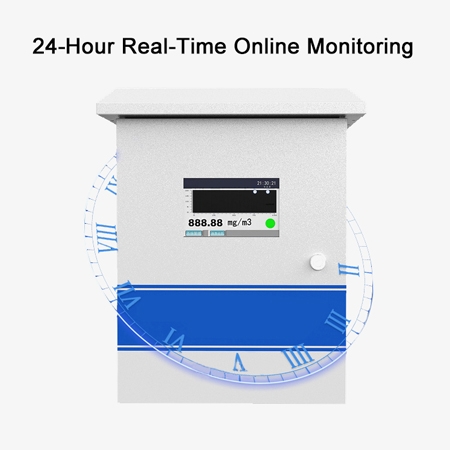

Real-time Online VOC Monitoring
- VOC monitoring system supports a wide measurement range of 0 to 20/200/3000/10000 ppm, ensuring precise detection of VOC concentrations in various environments.
- VOC online gas analyzer features a 7-inch high-definition touchscreen display, providing real-time online monitoring with an intuitive and user-friendly interface.
- Enables free data upload to the cloud platform, allowing users to view and export real-time monitoring data via both web and mobile applications.
- Online VOC monitoring system supports mobile APP real-time monitoring, offering an all-in-one solution for detection, reporting, and storage—fully manageable from a single smartphone.

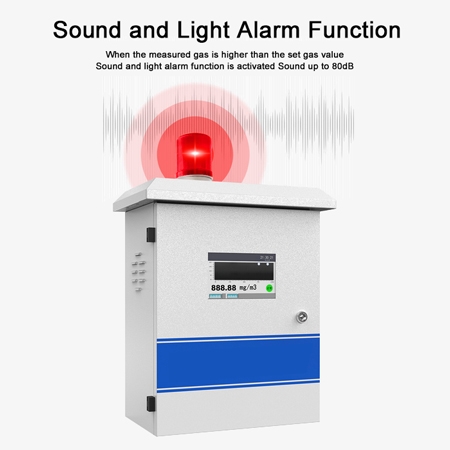

VOC Monitoring System with Audio-Visual Alarm
- VOC monitoring system is equipped with an audio-visual alarm function that activates when VOC levels exceed the preset threshold, with an alarm sound reaching up to 80 dB.
- Adopts a 32-bit high-speed processing core chip, ensuring fast response, stable operation, and high processing efficiency.
- VOC monitoring system With high accuracy and reliable performance, it is suitable for both outdoor and industrial environments.
- Compact and modular in design, allowing for flexible installation and easy integration into different monitoring setups.
Applications
SISCO VOC Monitoring System is widely used in chemical plants, industrial parks, food processing facilities, petroleum, and petrochemical industries to ensure compliance with environmental regulations, detect hazardous emissions, and maintain workplace safety through real-time VOC monitoring and alarm alerts.

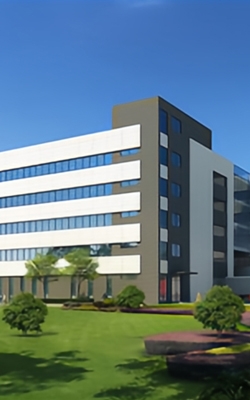

Industrial Park
Food

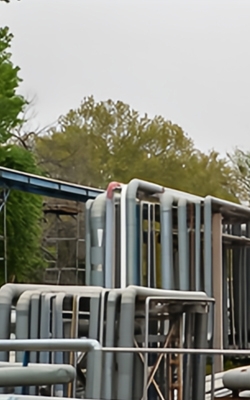

Petroleum & Petrochemical

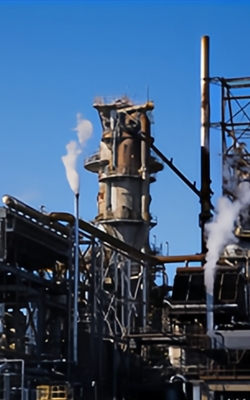

Chemical Plant
Â
| Model | SISCO-VOCMS-ZH8001 |
| Range (Optional) | 0 to 20/200/2000/3000/10000 ppm |
| Resolution | 0.5 ppb(0-2ppm), 5ppb(0-20ppm), 50ppb(0-200ppm), 500ppb(0-2000/3000/10000ppm) |
| Response Time | T90≤2S |
| Power Input | 110V/220AC |
| Working Power | 35-40W |
| Sensor Type | PID Photoionization |
| Communication Mode | RS485, 4G |
| Output Signal | GPRS |
| Gas Type | VOC |
| Sampling Method | Pump suction |
| Accuracy | ±3%FS |
| Resolution | 0.01mg/m3 |
| Span Drift | ≤±3%FS/24h |
| Zero Drift | ±2%FS/24h |
| Repeatability | ±2%FS/24h |
| Display | Touch screen |
| Working Temperature | -20~60℃ |
| Working Humidity | 0~90%RH (no condensation) |
| Alarm Mode | Sound and light alarm |
| Service Life | Sensor 1 year/Instrument 5 years |
| Weight | 20kg |
Q1: How can I access the monitoring data?
A1: Data can be accessed in real-time via a web platform or mobile app, allowing users to monitor, export, and analyze data remotely.
Q2: Does the VOC monitoring system have an alarm function?
A2: Yes, the SISCO VOC monitoring system is equipped with an audio-visual alarm that activates when VOC levels exceed the preset threshold, with a sound level up to 80 dB.
Q3: Is the VOC monitoring system suitable for outdoor and industrial environments?
A3: Yes, the VOC monitoring is designed with high accuracy, reliability, and a durable structure, making it ideal for both industrial and outdoor applications.
Tips: What is the measurement range of the VOC monitoring system?
The VOC Monitoring System offers a broad measurement range of 0 to  20/200/2000/3000/10000 ppm, allowing it to accurately detect and monitor VOC concentrations in different environments. This flexibility makes it suitable for a variety of industrial and environmental applications, ensuring precise and reliable VOC level detection.
