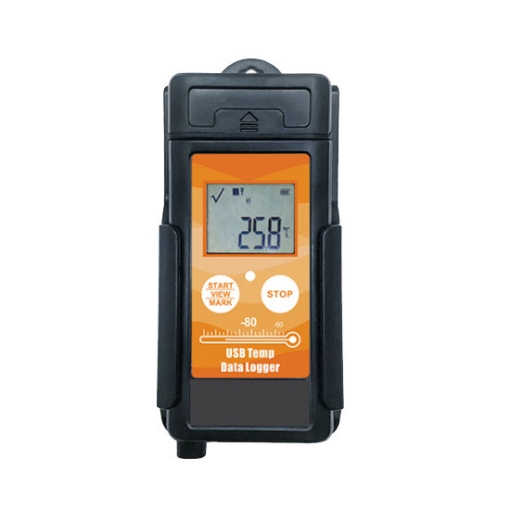

Portable temperature data logger has LCD display which shows you real time data directly. The temp date logger is focused on temperature recording in pharmaceuticals, vaccines and food storage, etc. After recording, insert it into the USB port of PC, it will automatically generate PDF and CSV reports without any software.

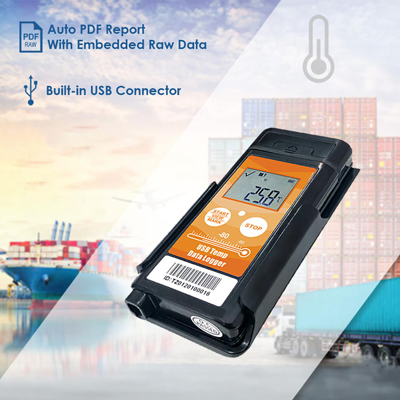

Portable USB temperature data logger functions
- USB connection.
- Flight mode for air transportation.
- Large LCD screen with powerful indicators.
- Automatically generate PDF report and CSV file.
LCD Display
If there E001 or E002 on the screen, please check:
- If the sensor is not connected or broken.
- If over the temperature detect range.
Applications
Portable USB temperature data logger is mainly used for temperature mapping during storage, shipping and transportation of vaccines, food, medicine, chemicals and other products.
| Model | SISCO-TDL-U06 |
| Usage Type | Multi-use |
| Recording Mode | Push-To-Start or Timing Start |
| Communication Interface | USB 2.0 |
| Sensor | Internal Temperature Sensor |
| Measuring Range | -80℃ ~ +70℃ |
| Temperature Accuracy | ±0.5℃ |
| Temperature Resolution | 0.1℃ |
| Data Storage Capacity | 32000 |
| Logging Interval | Programmable (10s ~ 18h) [Default: 10mins] |
| Alarm Range | Programmable [Default: <2℃ or >8℃] |
| Alarm Delay | Programmable (0 ~ 960mins) [Default: 10mins] |
| Alam Delay | Programmable (0 ~ 254mins) [Default: 30mins] |
| Battery | Typically 1.5 years, ER14250 Lithium Battery (Replaceable) |
| Report Generation | Automatic PDF/CSV Report Generation |
| Software | Temp (RH) Management Software (For Windows, 21 CFR 11 Compliant) |
| Waterproof Level | IP65 |
| Demension | 115mm * 50mm * 20mm |
| Net Weight | 100g |
Q1: What is a temperature data logger?
A1: A temperature data logger is one of the types of temperature measuring instruments. With the popularization and wide application of computers, temperature data recorders have been produced. And because of its more accurate data recording, more convenient data storage, and more convenient data analysis functions, it has been widely used. Paperless temp data logger with USB interface also greatly facilitates the downloading and saving of data.
Q2: What are the functions of temperature data loggers?
A2: Measurement: Built-in temperature sensor or connectable external temperature sensor to measure temperature.
Record Storage: Automatically record and store measured temperature values.
Data transfer: transfer or download the saved measurement data to the computer through the USB interface.
Programming: such as setting sampling rate, data transmission method and interval, selecting temperature sensor type, alarm setting, etc.
Analysis: Perform the necessary analysis on the temperature data through the built-in software.
Q3: What are the advantages of temperature data loggers?
A3: The portable temperature and humidity data logger can regularly collect and record temperature and humidity parameters according to the configured time interval, and can transmit the collected and recorded data to the computer for processing and drawing charts. It is widely used in environmental protection, health and epidemic prevention, warehousing and transportation, museums, greenhouses and other fields. This recorder is powered by high precision sensors and high-energy lithium batteries. It is designed with low-power technology and requires no external power supply. It is small in size, low in power consumption, and high in precision. It can work continuously for more than three years.
Tips: Temperature data logger application in cold chain transportation
In the process of long-distance or ocean transportation, the high or low temperature and humidity in the warehouse will directly or indirectly affect the quality of the transported goods, especially when transporting frozen and refrigerated food. The carrier and the shipper often have disputes over the responsibility of the carrier due to changes in the quality of the transported goods. To prevent such disputes, as long as the electronic temperature and humidity data logger is placed in the warehouse before transportation and the record is turned on, the temperature and humidity values of the warehouse during transportation are read after the goods arrive at the destination, and the PC software automatically generates PDF and Excel formats. At a glance, of course, also clear responsibility. The electronic temperature and humidity data logger simplifies your work, and is not disturbed by too many human factors, and reflects the recording process objectively and truthfully. To a certain extent, it is also strong evidence to resolve this controversy.
