Buy a single phase digital power analyser meter that offers features such as AC/DC measurement outside the automatic range, harmonic analysis, ratio function, averaging function, a filtering function, maximum value locking, and energy integration.
Digital Power Meter Functions
- Four-window display.
- 0.15 grade high accuracy.
- Communication interface.
Digital Power Meter Functions
- AC/DC measurement.
- Wide Frequency Test.
- Auto-ranging can simultaneously perform general measurement, harmonic measurement, and integral measurement.
Applications
SISCO digital power analyser meter is used in a wide range of applications. It plays an important role in power system monitoring, industrial automation, testing of electrical equipment, energy management, testing of household appliances, renewable energy, electric vehicles, and laboratory research. By accurately measuring and analyzing electrical power, power meters help to monitor and record power transmission and optimize energy use.
Industrial Automation
Energy Management
Household Appliance
Power System Monitoring
Â

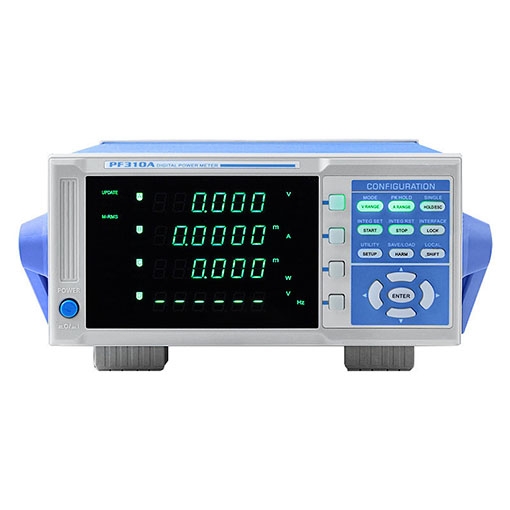

| Model | SISCO-DPM-PF310A | |
| Item | Voltage | Current |
| RMS | CF=3 : 15V/30V/60V/150V/300V/600V CF=6: 7.5V/15V/30V/75V/150/V300V |
CF=3: 5mA/10mA/20mA/50mA/100mA/200mA/0.5A/1A/2A/5A/10A/20A CF=6 : 2.5mA/5mA/10mA/25mA/50mA/ 100mA/0.25A/0.5A/1A/2.5A/5A/10A |
| Frequency ranges | DC , AC : 0.5Hz ~ 100kHz | |
| Range switching | Manual/Automatic | |
| Accuracy | ||
| Term | Voltage (V)/Current (A) | Active power(W) |
| Temperature: 23℃+5℃ Humidity: 30%RH~75%RH Input waveform: stable sine wave Input range: 10%~100% range Common mode voltage: 0V Power factor: COSφ=1 Crest ratio: CF=3 |
DC | DC |
| ±(0.1% reading + 0.1% range + 1 word) | ±(0.1% reading + 0.2% range + 1 word) | |
| 10Hz~45Hz | 10Hz~45Hz | |
| ± (0.1% reading + 0.2% range + 1 word) | ± (0.3% reading + 0.2% range + 1 word) | |
| 45Hz~65Hz | 45Hz~65Hz | |
| ±(0.05% reading + 0.1% range + 1 word) | ±(0.05% reading + 0.1% range + 1 word) | |
| 65Hz~1kHz | 65Hz~1kHz | |
| ±(0.1% reading + 0.2% range + 1 word) | ±(0.2% reading + 0.2% range + 1 word) | |
| 1kHz~ 10kHz | 1kHz~ 10kHz | |
| ±(0.07xf% reading + 0.3% range + 1 word) | ±[(0.1% reading + 0.3% range) + (0.067 x(f-1)% reading)+1 word] |
|
| 10kHz~100kHz | 10kHz~100kHz | |
| ±[(0.5% reading + 0.5% range) + (0.04x(f-10)% reading) + 1 word] | ± [(0.5% of reading + 0.5% of range) + (0.09x(f-10)% of reading) + 1 word] | |
Â

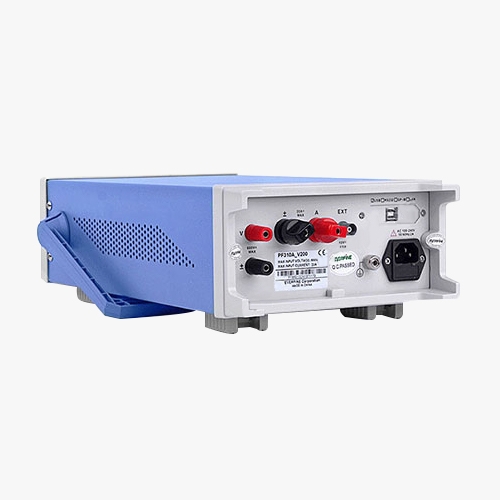

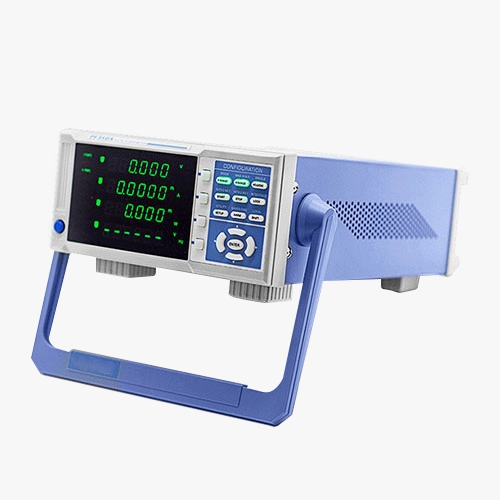

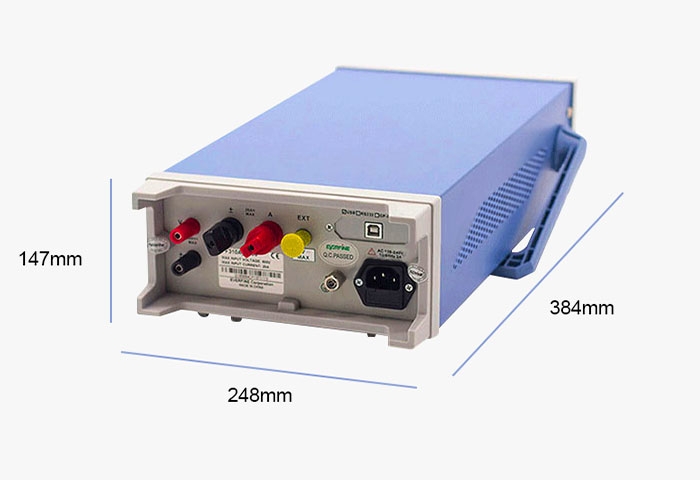

Details
Â
Q1: What is a digital power meter?
A1: A digital power meter is an advanced electronic device used to measure and monitor the consumption of electrical power in a precise and efficient manner. Unlike traditional analog meters, which use mechanical components to measure power, digital power meters use digital technology to provide accurate, real-time data on various electrical parameters.
Q2: What is the purpose of a digital power meter?
A2: The primary purpose of a digital power meter is to accurately measure and monitor power consumption. It provides real-time data and historical records, helping users understand their power usage, identify high-consumption areas, optimize energy use, improve efficiency, and save costs.
Q3: How does a digital power meter work?
A3: A digital power meter measures electrical parameters using sensors for voltage and current. It converts these analog signals into digital form, which is processed by a microprocessor. The processed data, including power usage and energy consumption, is displayed in real time on a screen and can be stored or transmitted for further analysis. The meter often supports remote monitoring and control, allowing for efficient energy management and accurate billing.
Tips: How to use a digital power analyser meter?
- Installation: Connect the digital power analyser meter to the electrical system according to the manufacturer's instructions. This usually involves wiring it into the circuit and ensuring proper connections for voltage and current sensors.
- Configuration: Set up the meter by configuring its parameters through its user interface. This may include setting the measurement units, calibration settings, and communication options.
- Measurement: Once installed and configured, the meter will automatically start measuring electrical parameters such as voltage, current, and power consumption. It will display real-time data on its screen.
- Data Monitoring: Regularly check the display for real-time readings or use any provided software to monitor and analyze data remotely. Some meters offer features like data logging and trend analysis.
- Maintenance: Periodically review the meter's performance and ensure it is functioning correctly. Perform any necessary maintenance or recalibration as recommended by the manufacturer.
