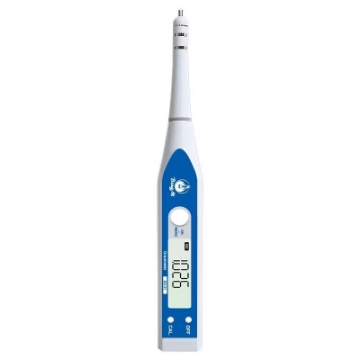

Digital salinometer is used to measure the salinity of food, sensitive response, high measurement accuracy, compact and portable, easy to operate, is the ideal salinity meter for food processing applications.
Waterproof and dustproof
- Capable of testing in a variety of harsh environments.
- 3 seconds results, instrument resolution 0.01%.
Large screen display
- Large screen with backlight and beep, convenient to do tests in different environments.
- With temperature sensor.
Application
Using a salinitymeter can quickly read the salt concentration or the specific gravity of seawater, which is used in pickles, pickles, pickled vegetables, food processing, oceans, fisheries, and farms.
| Model | SISCO-WQT-BM | ||||
| Test Range (optional) | 0.01%~5.00% (Model: BM-5), 0.01%~10.00% (Model: BM-10), 0.01%~26.00% (Model: BM-26) | ||||
| Test Methods | Automatic test   | ||||
| Test Temperature Range | 1℃~90℃ (salinity<15%), <50℃ (salinity>15%) | ||||
| The Decomposition | 0~4.99%: 0.01% 5~10%: 0.05% 10~15%: 0.1% 15~25%: 0.5% |
||||
| Precision | 0.01~1.99% (±0.1%) 2.00~5.00% (±0.2%) 5~10% (±0.5%) 10~15% (±1%) 15~25% (±2%) |
||||
| Test Range | 0~10000PPM | ||||
| Test Precision | 2% F.SÂ Â Â Â | ||||
| Test Method | Automatic    | ||||
| Test Temperature Range | 0~80℃ | ||||
| Test Result | Few 0~50 Little 50~100 A Little 101~300 More 601~1000 Unqualified >1000 |
||||
| Test Principle | Method for determination of electrical conductivity | ||||
| Test Environment | 5℃~60℃, Test material maximum temperature<90℃ | ||||
| Power Saving Function | 60 seconds after the automatic shutdown | ||||
| Temperature Compensation | A.T.C | ||||
| Display Area | LCD (Backlight) | ||||
| Complete Function | PPM value<500PPM, the direct display of TDS PPM value. PPM value>500PPM, showing the value of salinity %. Twice consecutive button to display the results of TDS PPM. Beep prompt tone: began to ring 1 times, the end of the ring 2 times. Backlight: 5 seconds after the test shows. |
||||
| Replace Battery Alert | LOW icon flashing | ||||
| Power Supply | 1.5V*2EA (AAA type battery) | ||||
| Waterproof Grade | Life waterproof | ||||
| Implementation Standards | Q/YM003-2015 | ||||
| Certification | CE | ||||
| Weigh | 0.5kg | ||||
Â
Salino Meter Structure Diagram
Salinity Meter Use Instruction
- Press the power key to start the device's RDY icon will flash.
- Place the gravimeter measurement probe tip (as Shown) in the testing water MEAS icon will flash and the test begins.
- The buzzer will sound and the backlight will illuminate to display the result.
- Press the power key to display the SG value (unit: PPT), press the key to display the temperature value(unit: C), and press the key more to power off.
- Clean the probe ready for its next usage, place the probe in natural water, and wait till the RDY icon appears on the display.
- Use fresh water to clean the probe and use a soft cloth to dry it. Keep dry When stored.
Salinity Meter User Manual.pdfA1: What is a salinometer?
Q1: A salinometer is an instrument used to quickly determine the weight percent concentration or refractive index of a solution containing salt (sodium chloride). Digital salinometers are widely used in industrial sectors such as salt, food, and beverage, as well as in agricultural production and scientific research.
A2: How does a salinity meter work?
Q2: Refraction occurs when light enters a medium from one medium to another, and the ratio of the sine of the angle of incidence is constant, which is called the refractive index. The refractive index of a salt solution can be determined by using the fact that the content of soluble substances in the salt solution is proportional to the refractive index in an ordinary environment so that the salinometer can calculate the concentration of salt.
A3: How to use the salinometer?
Q3: The salinometer is immersed in the liquid, and after it is stabilized, the scale is read directly on the salinometer, and the scale shows the salinity of the liquid.
Tips: What is a salinometer in food processing?
A salinometer is a machine that measures the amount of salt (NaCl) in a solution, known as as salinity. another name for a salinometer is a conductivity meter because dissolved salt in water increases its conductivity at measurable levels.
