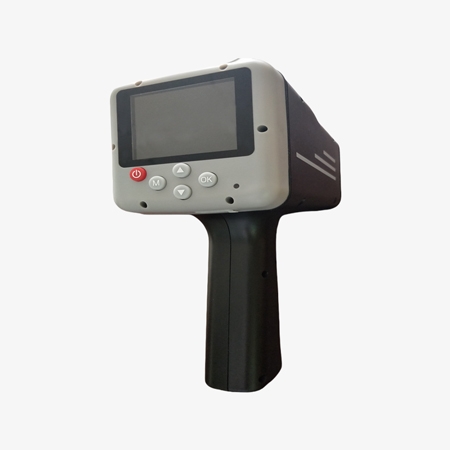

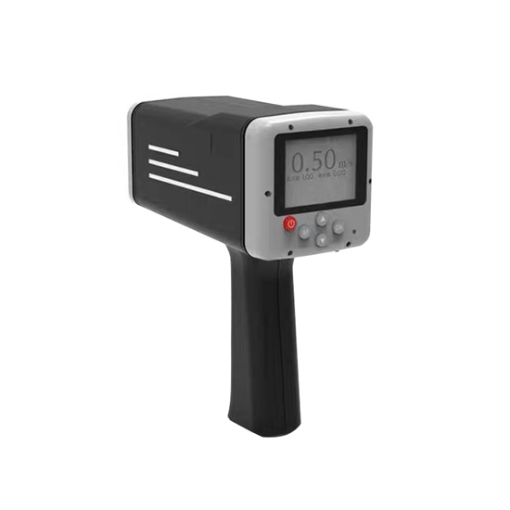

This low-price handheld radar type flow meter is ideal for sewage monitoring, emergency flood response, and field operations. With multiple charging options, including AC power, vehicle charging, and portable power banks, it ensures long-lasting operation in any environment.
Automatic Angle Correction
- Radar-type flow meter operates with non-contact technology, unaffected by sediment and water erosion.
- Automatically correct angles in both horizontal and vertical directions.
- Offers multiple measurement modes, supporting both quick and continuous measurement.
- A portable radar flow meter supports wireless data transmission via Bluetooth (optional).
Radar Flow Meter with User-Friendly Interface
- Uses a high-capacity lithium-ion battery for over 10 hours of continuous operation.
- Supports multiple charging methods, including AC power, vehicle charging, and portable power banks.
- Ensures reliable performance for accurate velocity measurement in various environments.

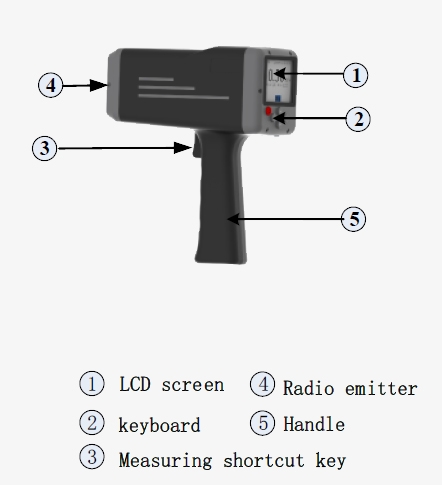

- SISCO handheld radar flow meter features a user-friendly interface with a clear display and intuitive controls.
Applications

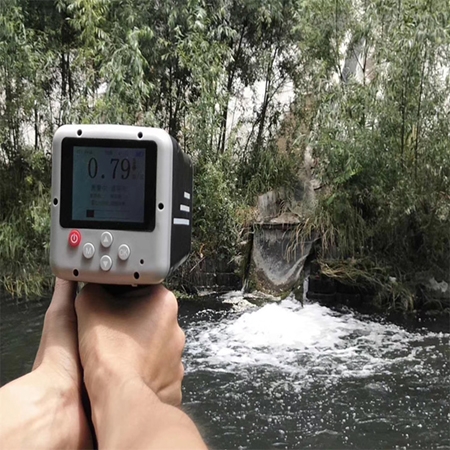

SISCO radar flow meter is widely used for velocity monitoring in channels, rivers, sewage systems, and oceans. It is also essential for flow measurement in railway bridge construction, flood control and emergency response, sewage discharge monitoring, and other on-site measurement applications.
Ocean Current Detection
Sewage Flow Rate Detection
Wastewater Detection
Flood Prevention Detection
Â
| Model | SISCO-FLOW-LB60 |
| Measuring Range | 0.03~20m/s |
| Measurement Accuracy | ±0.03m/ |
| Radio Wave Emission Angle | 12° |
| Radio Wave Emission Standard Power | 100mW |
| Radio Frequency | 24GHz |
| Angle Compensation | Horizontal and vertical angle automatic |
| Horizontal & vertical Angle Automatic Compensation Range | ±60° |
| Storage Size | 2000 measurement results |
| Maximum Measuring Distance | Within 100m |
| Operating Temperature Range | -20℃~+70℃ |
| Relative Humidity Range | 20%~80% |
| Storage Temperature Range | -30℃~70℃ |
| Battery Type | Lithium-ion rechargeable battery |
| Battery Capacity | 3100mAh |
| Standby State (at 25℃) | More than 6 month |
| Continuously Working Time | More than 10 hours |
| Weight | 700g |
Dimension
Q1: How does the radar flow meter work?
A1: The radar flow meter uses non-contact radar technology to measure surface velocity by detecting Doppler shifts in reflected signals, ensuring accurate flow measurement without being affected by sediment or water conditions.
Q2: Is the radar flow meter suitable for all types of water bodies?
A2: Yes, it can be used in various environments, including rivers, channels, sewage systems, oceans, and flood monitoring sites, as it operates effectively regardless of water turbidity or debris.
Q3: What are the power supply options for the radar flow meter?
A3: It is powered by a high-capacity lithium-ion battery, supporting over 10 hours of continuous operation, and can be charged via AC power, vehicle charging, or a portable power bank.
Tips: Does the radar flow meter require frequent maintenance?
No, the radar flow meter requires minimal maintenance due to its non-contact technology. Unlike traditional contact-based flow meters, it does not come into direct contact with water, eliminating issues such as sediment buildup, clogging, or corrosion. This design significantly reduces wear and tear, ensuring long-term reliability and stable performance with minimal servicing requirements. Regular system checks and occasional cleaning of the sensor area may be recommended to maintain optimal accuracy, but overall, it is a low-maintenance solution for flow measurement in various environments.
