The handheld density meter can store 200 sets of measurement data, working temperature (0~85) °C, ambient humidity: (5~90)% RH. The digital density meter is a portable instrument used to measure the density of various liquids or liquid mixtures. It has been widely used in various industries such as water treatment, petrochemical, food processing, pharmacy, dairy products, archaeology, mining and shipping.

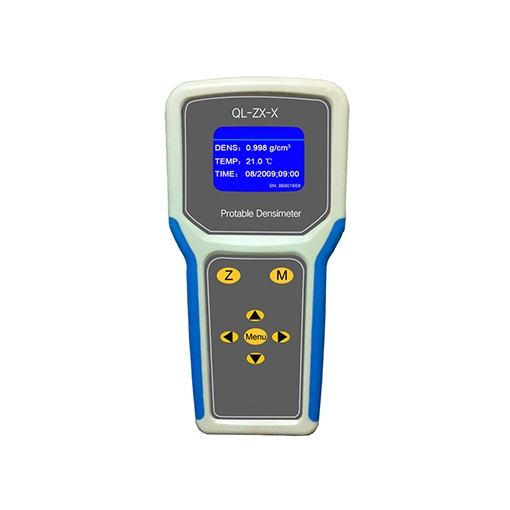

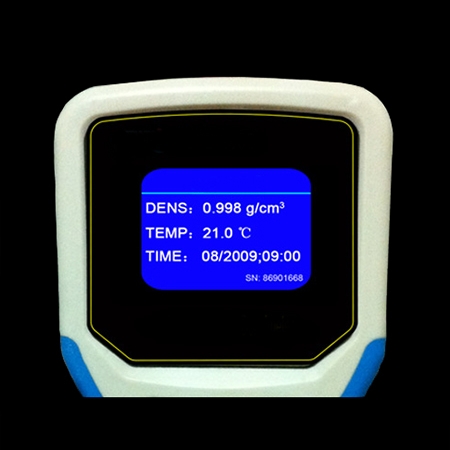

The portable density meter features a large display with backlight
- The backlit LCD display ensures clear and easy-to-read measurements, even in low-light or challenging environments.
- A backlit LCD display often comes with an intuitive user interface, making it easier for operators to navigate through menus, set parameters, and view real-time data without straining their eyes.
- The clear display of measurement data helps in reducing reading errors, thereby improving the accuracy and reliability of density measurements.

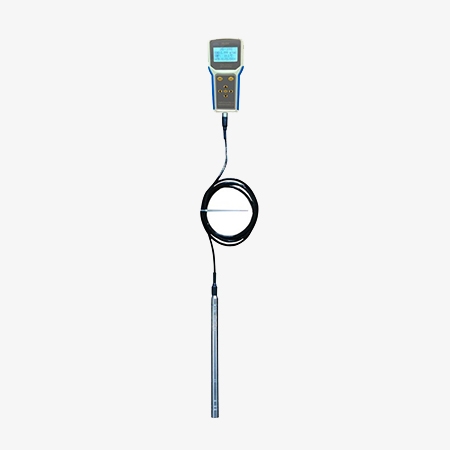

Handheld density meter with cable-style probe
- The probe can be easily maneuvered into position, simplifying the measurement process and reducing the risk of spillage or contamination.
- The cable-style probe of the online density meter is designed to maintain high accuracy and reliability, ensuring consistent and precise density measurements even in difficult-to-access areas.
- By allowing measurements without direct handling of the liquid, the cable-style probe enhances safety, particularly when dealing with hazardous or corrosive substances.
Applications
SISCO density meters are essential tools in various industries for measuring the density of liquids and solids. They are widely used in the chemical industry, food and beverage industry, oil and gas industry, pharmaceutical industry, etc. Density meters play a critical role in quality assurance and process optimization across multiple sectors.
Oil and Gas Industry
Pharmaceutical Industry
Food Industry
Chemical Industry
| Model | SISCO-DENSITY-QLZX-X |
| Measuring Depth | 300mm-25m |
| Range | Density 0.3/cm³, temperature -25℃-110℃ |
| Accuracy | Density ±0.001g/cm³, temperature ±0.5℃ |
| Outer Diameter of Probe | φ25mm |
| Liquid Measuring Depth | Minimum measuring depth 190mm, maximum measuring depth 25m |
| Instrument Box | 1m |
| Ambient Temperature | 0℃-85℃ |
| Ambient Humidity | 5-90% RH |
| Working Voltage | Rechargeable battery supply |
| Display | Color screen digital display, display density value, temperature and time date |
| Memory Storage | 200 sets of measurement data |
| Measuring Method | Handheld vertical measurement |
| Measuring Principle | Differential pressure method |
| Weight | 4kg |
A1: What is a density meter used for?
Q1: Density meters are instruments that measure the density of a sample liquid or gas. Digital density meters are used in the pharmaceutical, petroleum, chemical, and food and beverage industries for quality control and in research and development.
A2: How does a fork density meter work?
Q2: The Fork Density Meters use vibrating fork technology to measure density directly, and can be used in process control where density is the primary control parameter for the end product or as an indicator of another quality control parameter, such as %solids or %concentration.
A3: How to use a density meter?
Q3: Density meters work by measuring the oscillation of a glass tube that contains the sample. There are digital density meters that can measure specific gravity and refraction index as well as the density of a sample.
Tips: What types of liquids can be measured with a portable density meter?
Water and Aqueous Solutions
- Tap Water: Ensuring quality and consistency.
- Saltwater/Seawater: Environmental monitoring and research.
- Chemical Solutions: Used in laboratories and industrial processes.
Oils and Fuels
- Crude Oil: In the oil and gas industry for quality control.
- Refined Fuels: Including gasoline, diesel, and jet fuel.
- Lubricants: Ensuring proper formulation and consistency.
Beverages and Food Products
- Juices and Syrups: Quality control in the food and beverage industry.
- Dairy Products: Including milk and cream, for consistency and quality assurance.
- Alcoholic Beverages: Such as beer, wine, and spirits.
Chemicals and Industrial Fluids
- Acids and Bases: Used in various industrial processes.
- Solvents: For manufacturing and laboratory use.
- Coolants and Antifreeze: Ensuring proper formulation and performance.
Portable Density Meters are versatile and can measure a wide range of liquids, making them suitable for various industries and applications. Ensure the device you choose is compatible with the specific liquids you need to measure.
