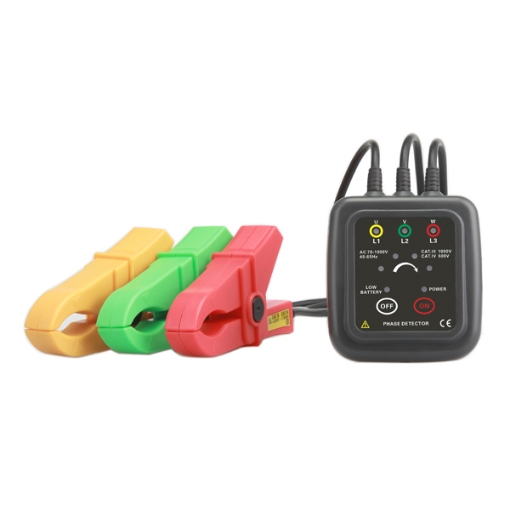

Buy a phase tester for detecting the phase sequence. It is a non-contact phase rotation tester that can directly clamp three super-inductive high-insulation clamps to the insulation sheath of the three-phase live wire, provides a voltage measure range 70V~1000V, 3xΦ10mm-Φ40mm jaws, live line inspection, open circuit search, breakpoint location, and line inspection functions, widely used in the power industry, electronic manufacturing, industrial control, etc.

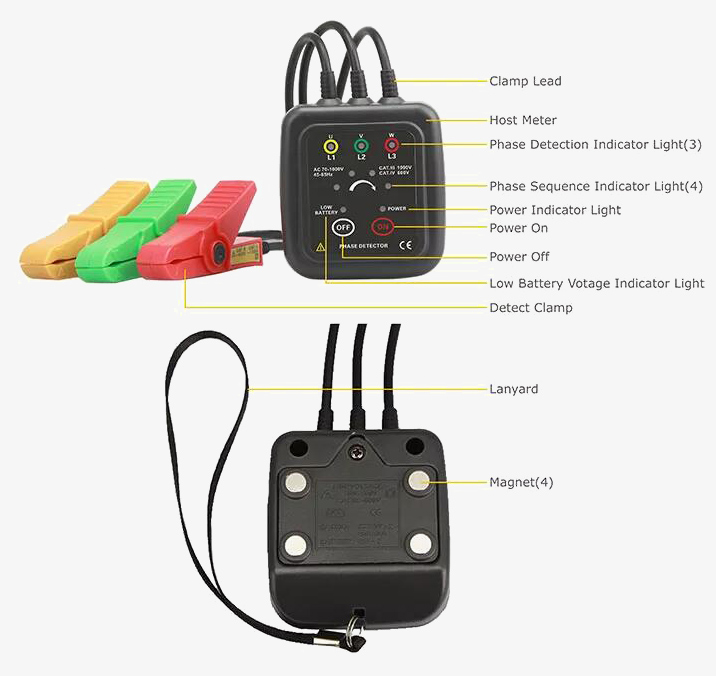

Features
- sisco phase rotation tester adopts clamp type non-contact induction measurement, no need to peel off the cable skin, no need to contact the high voltage bare live wire.
- The phase sequence can be detected by directly clamping three ultra-induction and high insulation clamps on the insulation skin of the three-phase fire wire respectively. 3*Φ10mm-Φ40mm clamps are available.
- It is a non-contact phase rotation tester, safe and fast, and increases productivity.
- Dynamic acousto-optic displays the positive phase or anti-phase state of the three-phase power phase sequence.
- 4 pcs magnets are installed on the bottom plate of the phase tester, which can be attached to the metal shell of the equipment in the test, convenient to operate.
Applications
sisco phase rotation tester can perform phase verification and phase sequence verification of power lines and substations, with phase verification, phase sequence measurement, and electrical inspection functions. Strong anti-interference performance and is suitable for various electromagnetic field interference occasions. Phase detector is widely used in the power industry, electronic manufacturing, industrial control and other industries.
| Model | SISCO-PT-1000D |
| Available Clamp Wire Size | Φ10mm-Φ40mm |
| Weight | Host: about 220g; Total weight: about 360g (including accessories) |
| Power Supply | DC 3V AA alkaline batteries (LR6)×2PCS |
| Live Power Range | AC70-1000V, 45-65Hz (Sine Wave Continuous Input) |
| LED Display | [Positive phase sequence] The phase detector lamp lights up clockwise |
| [Anti-phase sequence ] The phase detector lamp lights up counterclockwise | |
| [Live power] L1, L2, L3 lamps light up in setting voltage range | |
| [Default phase] L1 or L2, or L3 lamp is not lighting | |
| [Open circuit] L1 or L2, or L3 lamp is not lighting | |
| Buzzer | [Positive phase sequence] the buzzer sounds intermittently |
| [Negative phase sequence] the buzzer sounds continuously | |
| Battery Check | The POWER indication lamp light up after boot up; the LOW BATTERY lamp light up when low battery |
| Magnet | 4 pcs magnets are installed on the bottom plate of the instrument, which can be attached to the distribution box, load weight 800g |
| Auto Shutdown | 5 minutes after booting up, the meter automatically shutdown |
| Clamp Lead Length | 0.6m |
| Meter Dimension | 70mm×75mm×30mm |
| Max Measure Voltage | AC 1000V |
| Insulation Strength | 5.4kVrms |
| Maximum Rated Power | 300mVA |
| Accessories | Meter: 1PCS; Meter bag: 1PCS; Lanyard: 1PCS |

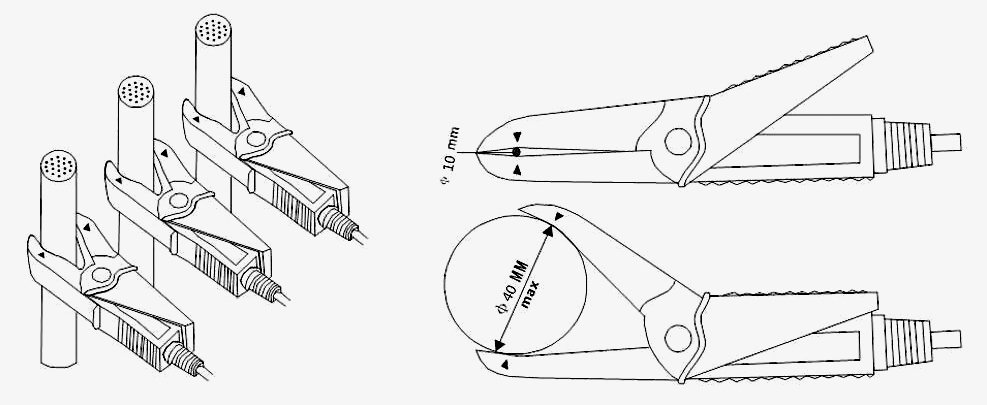

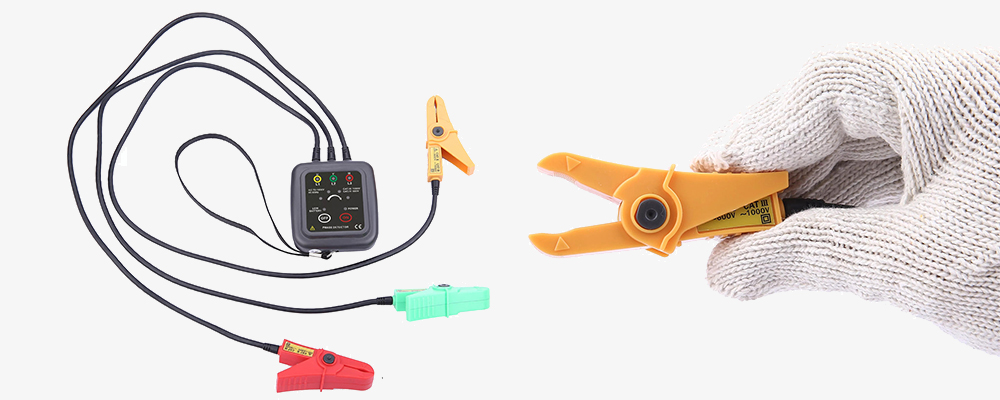

Clamp Details
Q1: How does a phase tester work?
A1: When the phase tester is working, the digital signal is sent to the receiving end through the wireless sending module, thereby reducing the interference and error, and greatly improving the working performance of the phase tester. When the phase detector is in use, first hang the transmitter on the conductor of the power grid under test, and then touch the receiving device to another grid conductor to be tested.
Q2: Functions of Phase Detectors
A2: sisco Phase Detectors can perform phase sequence detection (positive phase, anti-phase, default phase), live line inspection, simple electrical inspection, fire line identification, default phase judgment, broken line location search, DC line breakpoint detection, and line maintenance.
Q3: Why do you need a phase tester?
A3: If AC power supplies with different phases or phase sequences are paralleled or closed, a large current will be generated, which will cause damage to the generator or electrical equipment, so a phase detector is required for measurement.
Phase verification refers to the use of a tester or other means to check whether the phases and phase sequences of two power sources or loops are the same in the electrical operation of the power system, which means the measurement of the phase difference in the actual operation. Newly built, rebuilt and expanded substations and transmission lines, as well as after the line is overhauled and before power is sent to users, must conduct three-phase circuit phase verification tests. Therefore, a phase tester is required.
Tips for using a phase rotation meter
- When using the phase rotation meter, no other power source or battery is needed to power it, but it can be powered directly by the power source under test.
- Most phase sequence meters have the function of phase loss indication.
- The insulated jaws of the phase rotation meter can be used to clamp and detect insulated wires with a diameter of 10-40mm.
- When using the phase rotation meter, if one of the three-phase input lines is connected to electricity, the phase meter will be charged, so we must cut off the power before opening the case.
