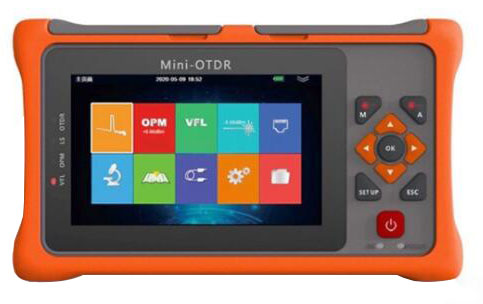

The Optical Time Domain Reflectometer (OTDR) is an essential tool for fault location and performance evaluation in optical fiber networks. This article, sisco will provide a detailed explanation of the working principles of OTDR, including the basic principles, measurement principles, and data analysis principles.
Basic Principles
OTDR utilizes the reflection and scattering characteristics of optical pulses to measure the loss and fault locations in optical fibers. It emits short pulse light signals into the tested fiber and records the echo signals of the light pulses. These echo signals contain reflection and scattering signals within the optical fiber. By analyzing the characteristics of these signals, it is possible to determine the loss and fault locations in the optical fiber.
Measurement Principles
- Optical Pulse Emission: OTDR generates a short pulse light signal through a laser and injects it into the tested optical fiber. The energy and width of the optical pulse can be adjusted as needed.
- Optical Pulse Propagation: As the optical pulse travels through the optical fiber, it encounters irregularities and losses, causing some light signals to be reflected and scattered. These reflection and scattering signals continuously propagate within the optical fiber and eventually return to the OTDR.
- Optical Pulse Reception: OTDR receives the echo signals through an optical detector, converting them into electrical signals. The sensitivity and bandwidth of the optical detector determine the measurement performance of the OTDR.
- Data Processing: OTDR processes the received echo signals, including signal amplification, filtering, and time-domain sampling. These processing steps enhance the quality and resolution of the signals.
Data Analysis Principles
- Reflection Signal Analysis: OTDR can determine connection points, breakpoints, and joint losses in the optical fiber by analyzing reflection signals within the echo signals. The strength and time delay of the reflection signals provide information about the connection points.
- Scattering Signal Analysis: OTDR can determine losses and fault locations in the optical fiber by analyzing scattering signals within the echo signals. The strength and time delay of the scattering signals provide information about the fault locations in the optical fiber.
- Data Display: OTDR displays the processed data on the screen, typically using time and reflection/scattering intensity as coordinates. By observing the shape and features of the data curves, it is possible to identify losses and fault locations in the optical fiber.
Application Areas
OTDR is widely used in the construction and maintenance of optical fiber communication networks. It is employed for fault location in optical fiber lines, measurement of optical fiber attenuation, and detection of optical fiber connection points. During the installation and maintenance of optical fiber networks, OTDR is an indispensable tool.
Conclusion
In summary, by providing a detailed explanation of the working principles of OTDR, we understand that OTDR utilizes the reflection and scattering characteristics of optical pulses to measure the loss and fault locations in optical fibers. It emits short pulse light signals into the tested optical fiber and records the echo signals of the light pulses. By analyzing the characteristics of these signals, it is possible to determine the loss and fault locations. OTDR plays a crucial role in the construction and maintenance of optical fiber communication networks and is an essential tool in this regard.
