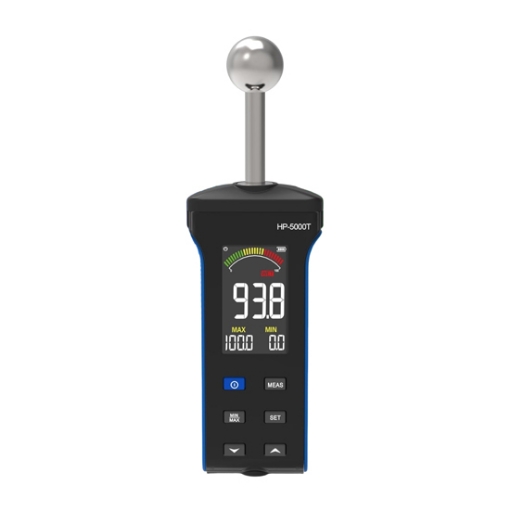

The non penetrating moisture meter instantly ready for use, delivering quick response times during measurements. It's an essential tool for contractors, woodworkers, and homeowners working on projects involving wood, drywall, and concrete.
Precise Detection and Value Measurement

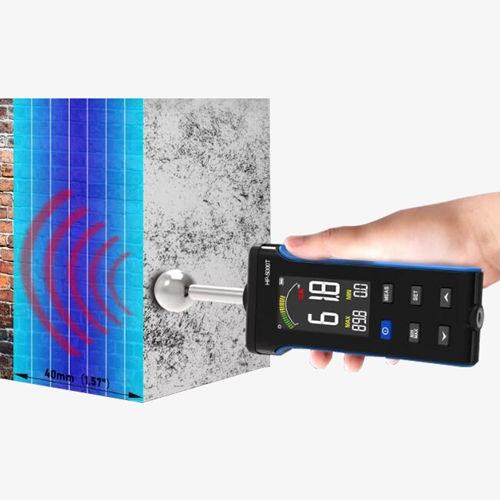

- Non-contact Spherical Detection: Measures at a depth of 20-40mm, ensuring accurate results without needing direct contact.
- Limit Value Can Be Set: This non-contact wood moisture meter allows users to set threshold values for "RISK" or "WET". Once set, the meter beeps when the humidity reaches "RISK" and emits an emergency beep when it reaches "WET", allowing users to quickly determine if the measurement results meet standards.
Operation and Power Management

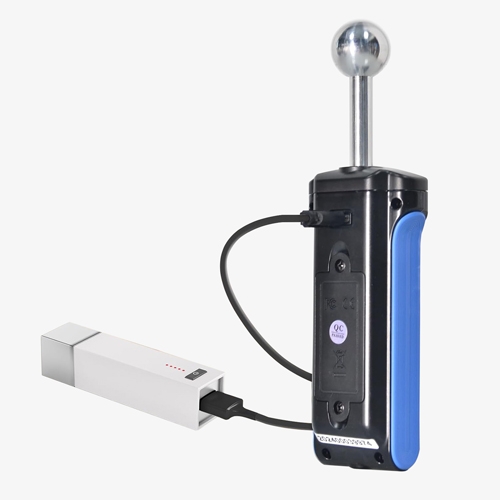

- TYPE-C Charging: Charged via a TYPE-C cable, offering faster charging speeds and wider compatibility, allowing the device to quickly return to use during busy work periods.
- Auto Shutdown Function: The device will automatically shut down after 30 minutes of inactivity, saving battery power and extending battery life, ensuring minimal power consumption when not in use.
Color Screen Display and Data Reading

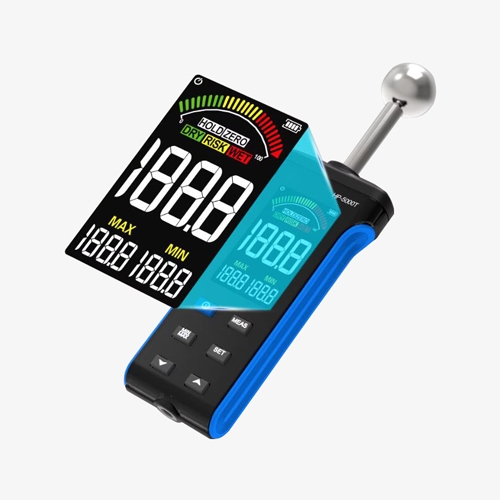

- Color Screen Display with Backlight: Ensures clear visibility of readings.
- Data Hold Function: This feature allows users to lock the current reading, making it easier to record or analyze data without missing critical information due to screen refresh.
Applications
The SISCO non destructive ball-type moisture sensor is a highly versatile tool, widely utilized across various applications. It's commonly employed in roof leak detection, where its sensitivity can pinpoint moisture hidden beneath the surface. Additionally, it excels in measuring moisture content in wood, making it an essential instrument for assessing the condition of wooden structures or materials. The device is also effective in detecting moisture in brick walls, helping to identify potential issues that could compromise structural integrity. Moreover, it's frequently used to measure moisture levels in wooden flooring, ensuring that conditions are optimal before installation or during maintenance.

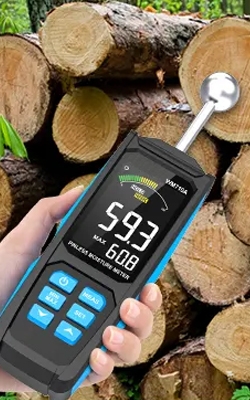

Wood Moisture

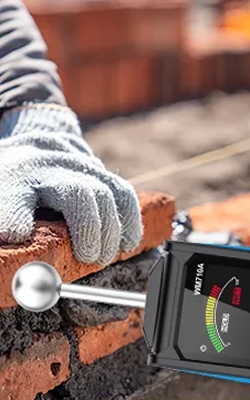

Wall Moisture

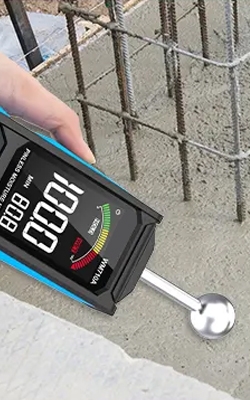

Cement Moisture

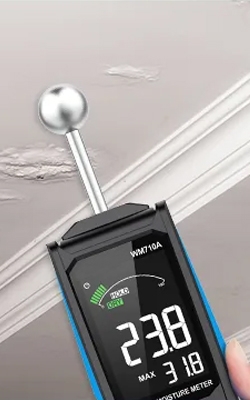

Roof Leaks
| Model | SISCO-MM-5000T |
| Measurement Range | 0-100 |
| Measured Depth | 20-40mm |
| Range of RISK Limit | 0-50 |
| Range of WET Limit | 51-100 |
| Auto Shut-Down | 30 minutes |
| Display | Color screen |
| Power | 3.7V 400mAh lithium battery (NOT INCLUDING) |
| Operation Current | About 35mA |
| Operation Temperature | 0-40℃ |
| Operation Humidity | 0%-70%RH |
| Storage Environment | -10-50℃ (5%-95%RH) |
| Size | 195x60x30.5mm |
| Weight | 153g |

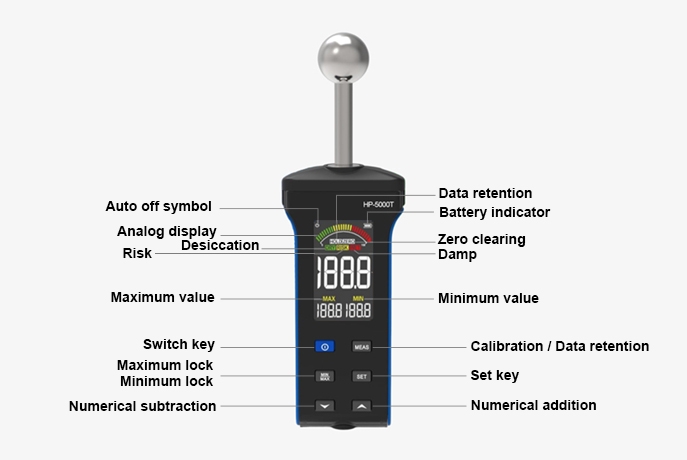

Details

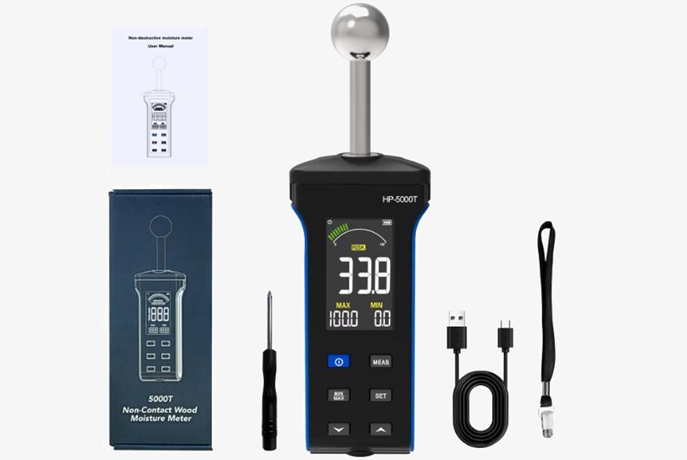

Packing List
- 1 x Moisture meter
- 1 x Packing box
- 1 x User manual
- 1 x Storage bag
- 1 x User Cable
- 1 x Screwdriver
Q1: What is a healthy moisture level?
A1: A healthy moisture level for wood typically ranges between 6% and 8% for indoor environments, such as in furniture, flooring, and other interior applications. This range helps prevent issues like warping, cracking, and mold growth. For outdoor wood or wood in more humid environments, a moisture level of up to 12% can be considered normal, though it varies depending on the specific climate and type of wood. Maintaining wood within these moisture ranges is crucial for its durability and longevity.
Q2: What factors can affect the accuracy of a humidity meter?
A2: The accuracy of a humidity meter can be influenced by several factors, including the need for regular calibration to prevent sensor drift and ensure precise readings. Temperature variations can affect humidity measurements, especially if the meter lacks temperature compensation. The quality and type of the sensor also play a crucial role, with high-quality sensors generally providing more reliable data. Environmental factors like dust and pollutants, along with improper placement near heat sources or direct sunlight, can skew results. Additionally, slow response times, power supply issues, and exposure to electromagnetic interference can all compromise accuracy. Regular maintenance, including cleaning the sensor, is essential to maintain the meter's performance.
Q3: What is the difference between a spherical induction moisture meter and a traditional pin-type moisture meter?
A3: The spherical moisture sensor differs from traditional pin-type moisture meters in several key ways. The spherical sensor is non-invasive, meaning it does not need to penetrate the material to measure moisture, thereby preventing any potential damage to the surface being tested. In contrast, pin-type moisture meters require the insertion of pins into the material, which can leave small holes or cause minor surface damage. Additionally, spherical moisture sensors typically offer a broader measurement range and deeper detection capabilities, making them ideal for assessing moisture content in a variety of materials without causing harm.
Tips: How does a ball-type moisture meter work?
A spherical moisture meter works by using a non-invasive sensor that emits low-frequency electromagnetic waves into the material being tested. As these waves penetrate the material, they interact with its internal moisture content, causing changes in the material's capacitance. The meter detects these changes and converts them into a moisture reading, displayed on the device. Unlike traditional pin-type meters, the spherical sensor doesn't require physical penetration into the material, making it ideal for measuring moisture levels in sensitive surfaces without causing any damage. This technology allows for quick, accurate assessments of moisture in materials like wood, drywall, and concrete.
