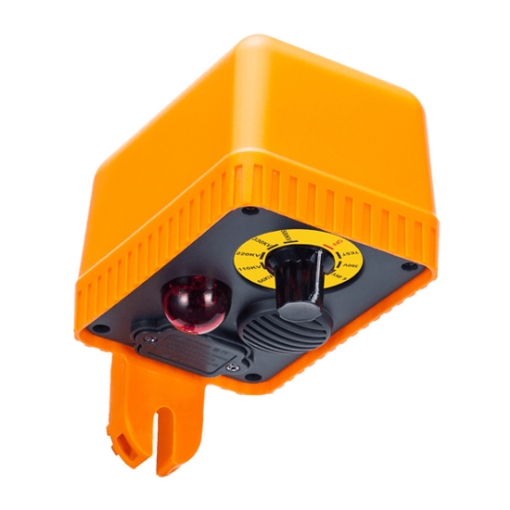

Non-contact high-voltage tester test range 380V~500kV, protection level IP65, available for indoor and outdoor use. Non-contact high-voltage testers are used for on-site high-voltage line inspection, identification of high-voltage system voltage levels, inspection of high-voltage line faults, repair of neon lights, high-voltage sodium lamp test induction voltage, test residual high-voltage or induction voltage, etc.
Sound and light alarm, safe and fast
- Non-Contact high voltage detector adopts non-contact sensing technology, with no need to touch the charged body, to ensure the safety of the operator.
- Bright red LED and piercing buzzer sound and light alarm, easy to identify.
- 9 voltage steps cover various voltage levels. The voltage level gears can be customized according to user requirements.
- Self-check function ensures accurate power test.
Application
A non-contact high-voltage electroscope (with voltage indication) is specially manufactured for high-voltage transmission line inspection, high-voltage transmission line-to-ground voltage, induced voltage test, and current test. High-voltage electroscopes are widely used in electric power, railways, industrial and mining enterprises, and other near-electrical workplaces.
| Model | SISCO-ETCR1820 |
| Voltage Level | OFF-TEST-380V-6.6KV-10KV-35KV-66KV-110KV-220KV-330KV-500KV |
| Power | zinc-manganese dry cell 6F22, 9V |
| Voltage Grade | 9 Grades |
| Test Range | 380V ~ 500kV |
| Electricity Indication | Red double flashing LED light indication, "beep-beep-beep" beeping sound |
| Self-Test Function | Turn the knob to "TEST", the indicator lights up, the buzzer "beep-" sound |
| Low Battery Voltage Indication | hen the detector battery voltage drops below 7.2V±0.1V, the LED indicator will flash slowly to remind to replace the battery. |
| Protection Class | IP65 |
| Mass | Instrument: about 520g (including battery); total mass of package and insulating rod: about 4.6kg |
| Size | 135mm×115mm×85mm |
| Insulation Rod Length | maximum diameter Φ38mm, length: 1000mm in shrunken state, 4500mm in extended state |
| Insulation Test | Insulation rod after stretching both ends: AC 220kV/rms, receiver, detector: AC3700V/rms (between exposed metal and plastic shell) |
| Working Temperature and Humidity |  -10℃～40℃; 80%rh or less |
| Storage Temperature and Humidity | -10℃～60℃；70%rh or less |
Packing List
- 1 x Detector
- 1 x Telescopic Insulation Pole
- 1 x 9V6F66 battery
- 1 x Toolkit
Wiring Diagram
Q1: What is the high voltage tester used for?
A1: A high voltage tester is widely used in substations, power plants, fire departments, industrial and mining enterprises, electrician maintenance departments for power detection and field electrician work, etc.
Q2: What is a high-voltage electroscope?
A2: High-voltage electroscope is a tool used to check whether high-voltage lines and power equipment are live, and is a basic safety tool commonly used inÂ
substations. The high-voltage electroscope is used to check whether the line or equipment is charged, the purpose is to ensure personal safety.
Q3: How to divide the high voltage tester level?
A3: According to the applied voltage level, a high voltage tester can be divided into: 0.1-10KV detector, 6KV, 10KV detector, 35KV, 66KV detector, 110KV, 220KV detector, and 500KV detector.
Tips: What is a non-contact high voltage tester?
Non-contact high voltage tester, using non-contact design safe and reliable, used to check whether there is AC high voltage and low voltage. sisco contact high voltage detector has a sound prompt, light prompt, self-test, compatible with most insulation bars, and other functions. The whole high voltage tester is beautiful and high-grade, wide range, easy to operate, easy to carry, accurate, reliable, stable performance, and has strong anti-interference ability.
