The AC voltage detector with a low voltage indication, will automatically shut down after 5 minutes of no operation. High voltage detector tester has a flashlight that can help you work much better in the dark. When it detects AC voltage, the detection light will flash red and the buzzer will sound short beeps.

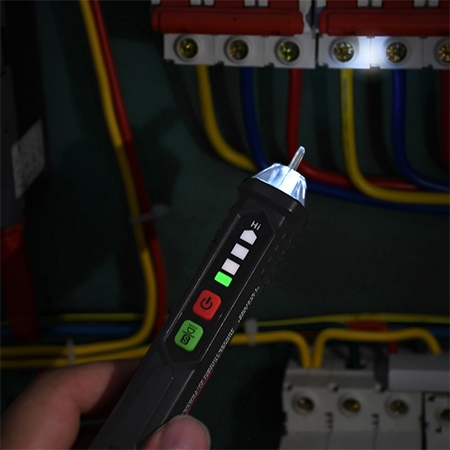

The AC voltage tester design with a LED flashlight lighting
- LED flashlights enhance visibility in dark or low-light environments, making it easier to see the voltage tester's readings or indicators.
- Using an LED flashlight helps accurately locate wires, outlets, or switches, ensuring the voltage tester’s probes are properly aligned with the test points.
- Adequate lighting speeds up the process and makes testing more efficient in dimly lit environments.
Breakpoint finder function
- Voltage detectors are ideal for quickly identifying breaks or faults in electrical circuits, helping to locate the exact point of failure.
- By testing different points along a circuit, a voltage tester helps you systematically isolate and identify where the break or fault is occurring.
- Voltage tester pens help ensure that you are only working on de-energized sections of the circuit during repair, minimizing the risk of electric shock while identifying circuit breaks.

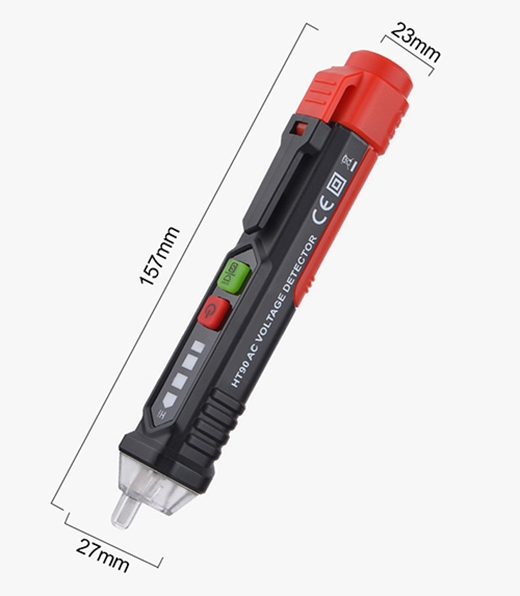

Dimension
Applications
SISCO voltage testers are essential tools used in electrical work to determine the presence and level of electrical voltage in circuits and devices. They help ensure safety by allowing electricians and DIY enthusiasts to verify that circuits are de-energized before performing maintenance or installations. Common applications include residential and commercial electrical work, industrial settings, automotive industry, telecommunications, HVAC systems, utilities and power distribution, and renewable energy systems, where they check outlets, wiring, machinery, vehicle electrical systems, communication equipment, HVAC units, power lines, and renewable energy installations for proper voltage and functionality.
Automotive Industry
Telecommunications
HVAC Systems
Commercial Electrical Work
Â
| Model | SISCO-VT-HT90 |
| Measuring Voltage | High sensitivity: AC 12-1000V; Low sensitivity: AC 48-1000V |
| Display | LED indication |
| Frequency | 50/60 Hz |
| Alarm mode | Sound and light alarm |
| Probe shape | Long flat shape |
| Neutral and live wire judgment | According to the signal strength indication, the live wire is stronger than the neutral wire |
| Signal Strength Display | LED three-level sensitivity |
| Signal Strength Indication Method | The buzzer sound changes from slow to fast, and the LED light changes from orange to red |
| Automatic shutdown | No button operation, automatic shutdown after about 5 minutes without induction signal |
| Flashlight | √ |
| Battery low voltage indication | √ |
| Safety level | EN61010-1, -2-030, EN61326-1, CAT â…¢ 1000V |
| Dimensions | 157*27*23mm |
| Weight | 50g |
Â

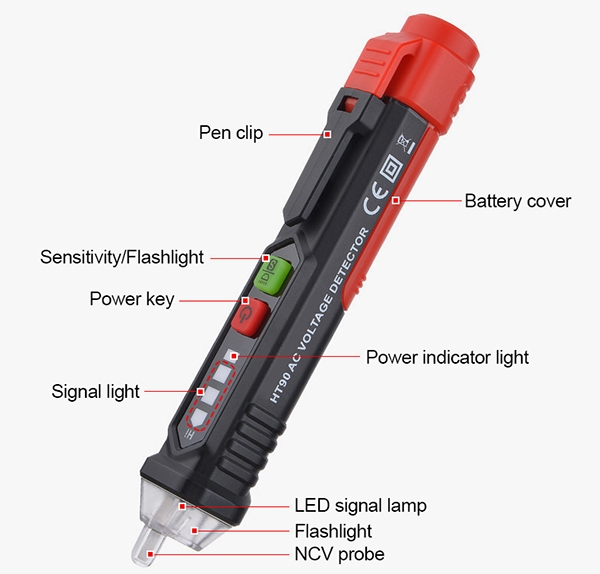

Detail
Q1: What is a voltage tester?
A1: A voltage tester is a tool used to determine the presence and level of electrical voltage in a circuit or device. It helps to ensure safety by allowing users to verify if circuits are live (energized) or de-energized before performing electrical work.
Q2: What are the types of voltage testers?
A2:Â There are various types of voltage testers, including:
- Non-Contact Voltage Testers (NCVT): Detect voltage by sensing the electric field around a live conductor without making physical contact with it. They usually indicate the presence of voltage through a light, sound, or vibration.
- Contact Voltage Testers: Require direct contact with the conductor to measure voltage. They typically have probes or leads that need to touch the wires or terminals being tested.
- Analog Voltage Testers: Use a needle gauge to show voltage levels. These are less common today but still used in some applications.
Q3: What is the importance of the sampling rate in an AWG?
A3:Â If your voltage tester isn't detecting voltage, check the following:
- Battery: Replace it if it’s dead.
- Settings: Ensure it’s set to the correct mode and range.
- Tester Condition: Test it on a known live circuit to verify if it’s working.
- Use: Make sure you’re using it correctly and making good contact.
- Power: Verify that the circuit is actually live and turned on.
Tips: What do I do if the voltage tester shows inconsistent readings?
If your non contact AC voltage tester shows inconsistent readings, follow these steps to troubleshoot and resolve the issue:
- Check Connections: Make sure the probes or leads are securely and properly connected to the test points. Loose or poor connections can cause erratic readings. Â Examine the probes and leads for any signs of wear, damage, or corrosion that might affect their performance.
- Verify Tester Settings: Ensure the tester is set to the appropriate mode for the measurements you are taking (e.g., three-phase voltage, phase sequence). Confirm that the tester is set to a voltage range that matches the expected voltage levels of your system.
- Check the Battery: Low or weak batteries can lead to inaccurate readings. Replace the battery with a fresh one and test again.
- Inspect the Tester: Check the tester’s display and housing for any visible signs of damage or malfunction.
- Test on Known Circuits: Test the device on a known live circuit or a different three-phase system to ensure it provides consistent readings in another environment.
