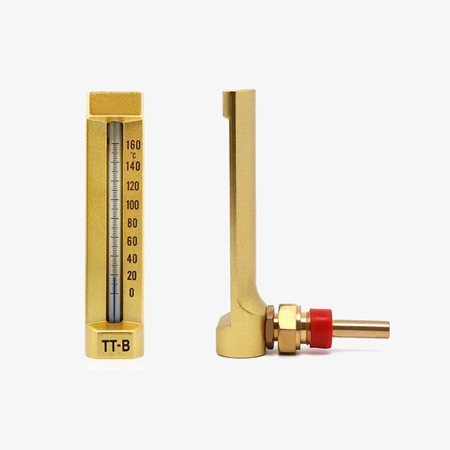

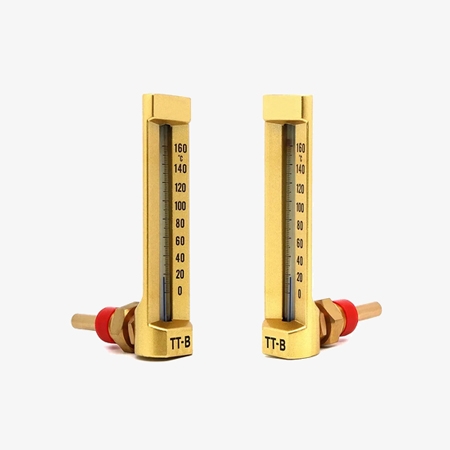

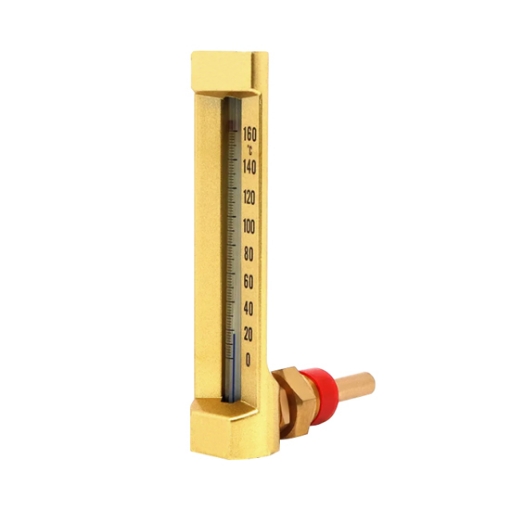

This V-shape marine thermometer is a high-precision temperature gauge designed specifically for marine engines, heat exchangers, hydraulic systems, and other industrial temperature monitoring applications. Built with a durable glass thermometer encased in a protective metal sheath, it ensures long-term stability and accuracy even in harsh marine environments.
Wide-Range Marine Thermometer for Industrial Applications
- The marine thermometer consists of a precision glass thermometer encased in a robust metal protective sheath, making it ideal for use in marine applications, heat exchangers, hydraulic equipment, and various industrial environments.
- Available with standard thread types including NPT1/2, G1/2, and G3/4, with customizable threading to meet specific installation needs.
- Standard measurement ranges include -50–50°C, -30–50°C, 0–50°C, 0–100°C, 0–120°C, 0–150°C, 0–200°C, 0–300°C, and 0–600°C. Custom temperature ranges can be provided upon request.
- Engineered for high stability in environments with strong vibrations, ensuring accurate readings even under harsh marine or industrial conditions..
Marine Thermometer with Custom Temperature & Thread Options
- The clear glass scale ensures precise temperature readings, crucial for shipboard operations and industrial process monitoring.
- Designed with corrosion-resistant materials to withstand saltwater environments and aggressive media, extending service life in marine settings.
- Compact design and multiple thread options allow for easy integration into existing equipment or piping systems.
- SISCO offers flexible customization of both temperature ranges and connection types to accommodate individual marine instrumentation specifications.
Applications
SISCO marine thermometer is designed for reliable temperature monitoring in marine systems, heat exchangers, hydraulic equipment, and general industrial applications. Its durable construction and customizable options make it ideal for harsh and demanding environments.
HydraulicUnits
Industrial Processes
Marine Systems

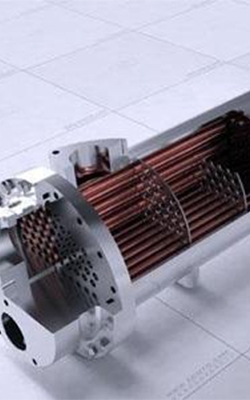

Heat Exchangers
Â
| Model | SISCO-TH-TTB |
| Length | 110mm x 30mm, 150mm x 36mm, 200mm x 36mm (optional) |
| Case | Alu-V-form brass-zinc-coated |
| Measuring System | Brass |
| Connection Thread | NPT1/2, G1/2, G3/4, |
| Measure Range | -60℃ ~+600℃ |
| Fluid Stem | 50mm, 63mm, 75mm, 100mm |
| Fluid Container | Blue filling, designed for safe storage or handling of mercury at 200°C or higher |
| Fluid | Glass Tube |
| Connection | Bottom, back, angle 90° |
| Accuracy | 1.5°C |
| Material | Bimetallic |

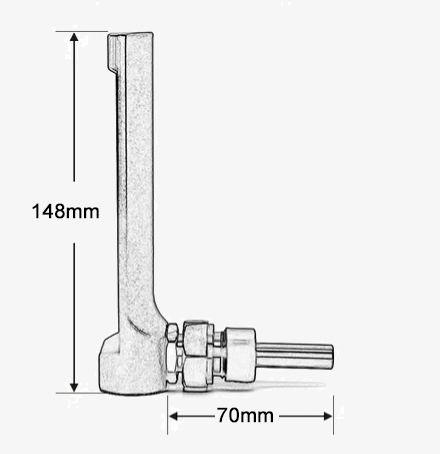

Dimension (unit: mm)

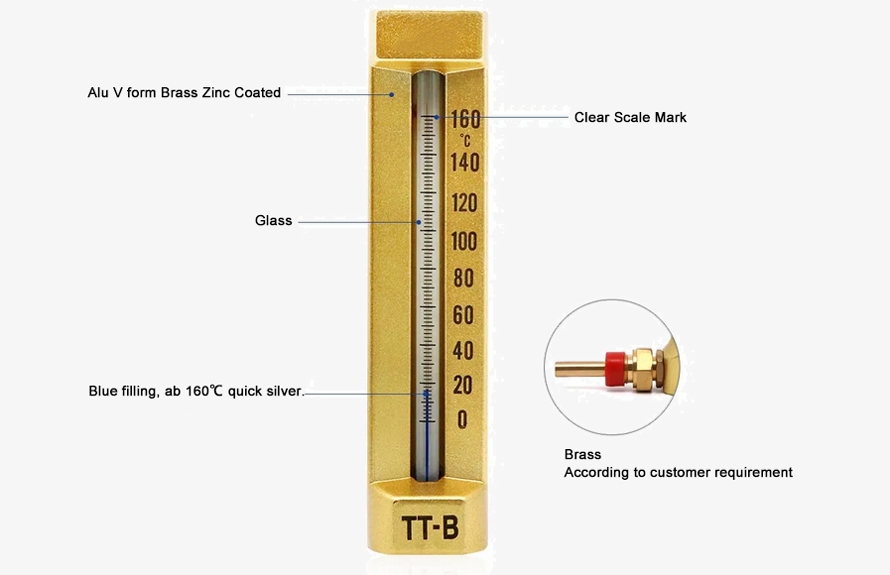

Details
Q1: What thread types are available for installation?
A1: The marine thermometer supports multiple thread connection types such as NPT1/2, G1/2, and G3/4. Custom thread sizes are also available upon request to fit your existing equipment.
Q2: Is the thermometer suitable for high-vibration environments?
A2: Absolutely. The thermometer features a robust design with strong vibration resistance, making it highly reliable in shipboard and industrial applications where mechanical stress is common.
Q3: Can I customize the temperature range of the thermometer?
A3: Yes, the temperature range is fully customizable. Standard ranges include -50°C to 600°C, and we also support custom temperature ranges based on your operational needs.
Tips: Is the marine thermometer resistant to corrosion?
Yes, this marine thermometer is specifically designed with corrosion-resistant materials to withstand the challenging conditions of saltwater environments and other harsh industrial settings. Its durable construction ensures long-term reliability, even in the presence of corrosive substances such as seawater, chemicals, or high humidity. This makes it an ideal choice for use in marine applications, heat exchangers, and hydraulic systems, where corrosion can significantly impact performance and lifespan.
