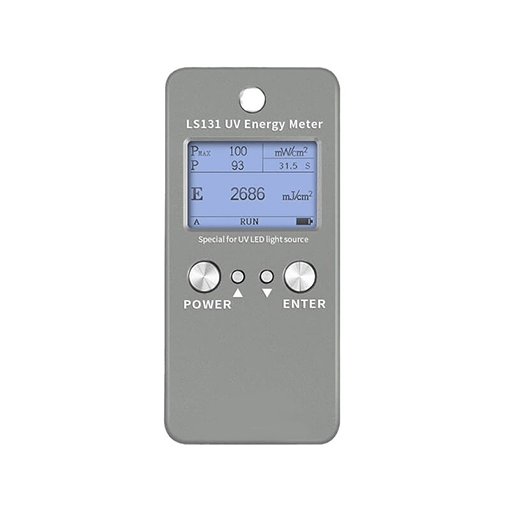

The UV energy meter built-in a heat-resisting sheet, which can resist high temperature and operate at 100°C for a long time. The UV meter has a high precision fast response temperature sensor and can measure the real temperature in the curing machine dynamically.
High temperature resistance, can be operated for a long time at a high temperature of 100 ℃.
- The LED UV meter is designed to withstand high temperatures, capable of operating continuously at up to 100°C without compromising performance.
- This feature makes it ideal for use in demanding environments, such as industrial curing processes, where high temperatures are common.
- Even under prolonged exposure to heat, the meter maintains accuracy and reliability, ensuring consistent UV measurements over time.

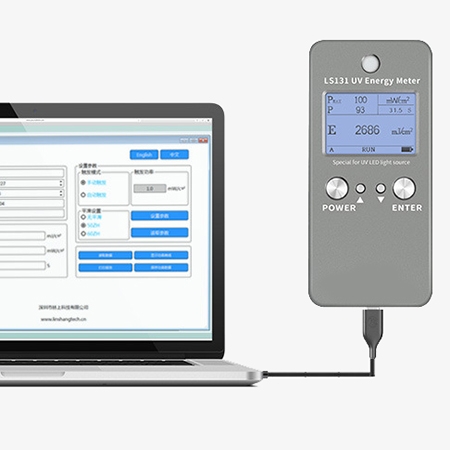

Test data can be exported through the computer software to print the test report
- The LED UV energy meter allows users to easily export test data to a computer through dedicated software, making it simple to analyze and store measurement results.
- With the software, users can generate detailed test reports, including both energy and power readings, which can be printed or shared for record-keeping and quality control.
- The ability to export and organize data digitally enhances traceability and simplifies the process of reviewing and comparing multiple tests over time.
Application
SISCO UV meter is commonly used across various industries to measure ultraviolet (UV) light intensity. Key applications include monitoring and controlling UV curing processes in manufacturing, ensuring proper UV sterilization in water treatment and healthcare, and assessing UV exposure levels in environmental testing and research. These meters are crucial for maintaining product quality, safety, and compliance with industry standards in sectors such as printing, electronics, pharmaceuticals, and environmental science.
Health and Safety
Reptile Care
Industrial
Environmental Monitoring
| Model | SISCO-UVM-131 |
| Spectral Response | 340-420nm (Instrument calibration and 395nm light source) |
| Range | 0-40000 mW/cm2 |
| Resolution | 1 mW/cm2 |
| Energy Measurement Range | 0-999999 mJ/cm2 |
| Measurement Accuracy | ±10% |
| Sampling Speed | 2048 times/s |
| Power Data Storage Interval | 32 times/s |
| Recording Period | 32min |
| Weight | 300g |
Details and Dimension
Q1: What is a UV Meter?
A1: A UV meter is a device that measures the intensity of ultraviolet (UV) light, often across different wavelengths like UVA, UVB, and UVC. It’s used in industries like manufacturing, healthcare, and environmental science to monitor and control UV exposure for processes like curing, sterilization, and environmental testing.
Q2: What types of UV radiation can a UV Meter measure?
A2: A UV meter is capable of measuring various types of UV radiation, including UVA (320-400 nm), which is commonly used in tanning and curing processes; UVB (280-320 nm), which plays a key role in environmental monitoring and healthcare, particularly in skin-related studies; and UVC (100-280 nm), which is highly effective in sterilization and disinfection. Each type of UV radiation has specific applications, and a UV meter can be designed to measure one or multiple types depending on its sensors and filters.
Q3: Can a UV Meter measure UV radiation from sunlight?
A3: Yes, a UV meter can measure UV radiation from sunlight. It’s commonly used in environmental monitoring to assess the levels of UVA and UVB radiation, which are the types of UV light that reach the Earth's surface. This information is crucial for understanding UV exposure risks, studying environmental impacts, and ensuring public safety.
Tips: Why is high-temperature resistance important for an LED UV meter?
High-temperature resistance is important for an LED UV meter because it allows the device to operate reliably in environments where high heat is present, such as during prolonged UV curing processes or other industrial applications. In these settings, temperatures can reach up to 100°C or more, and a meter that can withstand such conditions ensures consistent and accurate measurements without risk of damage or performance degradation. This durability is essential for maintaining process quality and avoiding downtime due to equipment failure, making high-temperature resistance a key feature for reliable and long-term use in demanding environments.
