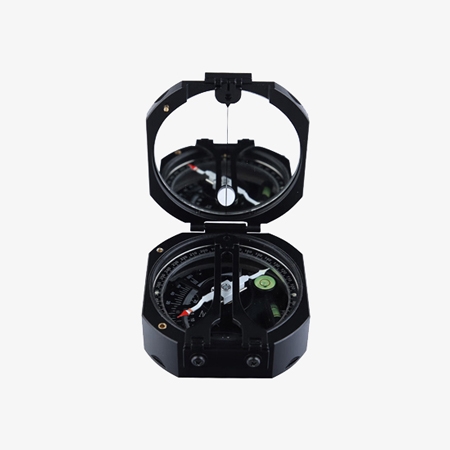

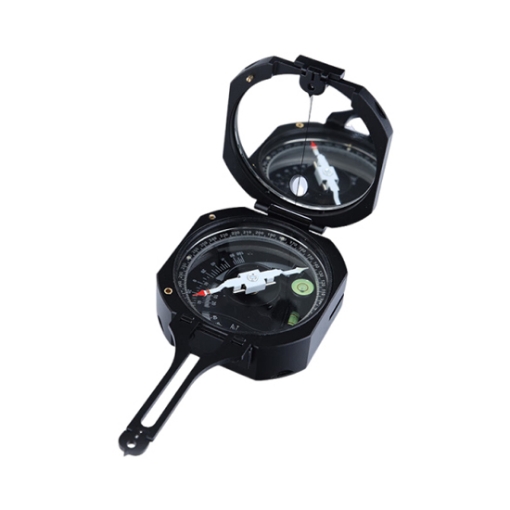

This high-accuracy, liquid-filled geological compass features an integrated bubble level and a compact, ultra-light design for easy carrying. Suitable for exploration, mountaineering, camping, and hiking.
Precision Compass with Damping System and Clinometer Scale
- Equipped with a damping system to reduce magnetic interference, the geological compass delivers fast positioning and precise readings.
- SISCO high precision geological compass features a direct-read compass capsule with 1-degree resolution and 0.5-degree accuracy, along with a vertical angle clinometer scale marked in 1-degree increments up to 90 degrees.
A Durable, Multi-Functional Compass for Outdoor Use
- The compass is a versatile tool designed to measure direction, slope, gradient, vertical angles, horizontal distances, and more.

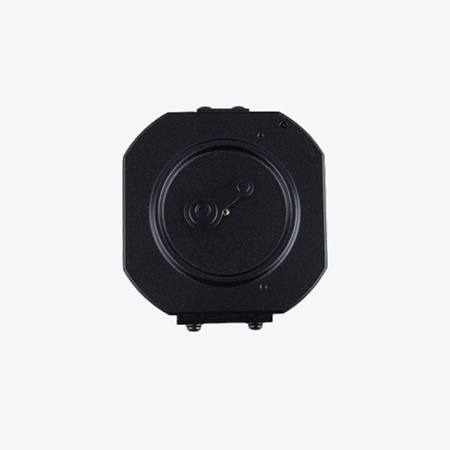

- Featured with a durable metal shell and solid metal core, this instrument is built to last. Its foldable design and integrated mirror make it easy to carry and store.
Applications
Geological compasses are used for measuring the orientation of rock layers, faults, and geological structures in field studies, mapping, and resource exploration. They provide accurate strike and dip readings for structural analysis, slope stability assessment, and site evaluation in geology, mining, civil engineering, and environmental applications.
Railway Construction
Mining Industry
Forestry Survey
Mountain Climbing
| Model | SISCO-HPGC-DQL8 |
| Material | Aluminum |
| Damping Time of Needle | 15s |
| Dial Scale | 1° |
| Precision of Long Air Level | 15´± 3´/2mm |
| Precision of Circle Air Level | 30´± 5´/2mm(20℃) |
| Product Dimensions (L*W*H) | 80*70*35(mm) |
| Net Weight | 0.24kg |
Q1: What is the purpose of a geological compass?
A1: A geological compass is used to measure the orientation of rock layers, faults, and other geological features. It helps geologists determine the strike (the horizontal direction of the rock layer) and dip (the angle of the rock layer’s slope) of geological formations, which is essential for geological mapping, analyzing structures, and understanding earth's history.
Q2: How to use a geological compass to measure dip and strike?
A2: To measure the dip, hold the compass level and align it with the rock layer. For strike, adjust the compass to align with the horizontal plane of the rock formation. The readings give you the direction and angle of the formation.
Q3: Can I use a geological compass in extreme weather conditions?
A3: Yes, geological compasses are designed to withstand tough outdoor conditions, including extreme weather. However, it's important to store the compass properly when not in use to avoid damage from moisture, freezing temperatures, or excessive heat. Always ensure the compass is kept in a dry, protective case during severe weather to maintain its accuracy and longevity.
Tips: What’s the difference between a geological compass and a regular compass?
- Different functions: A regular compass shows direction (points to magnetic north). A geological compass does that and also measures the orientation of rock layers—both strike and dip.
- Different built-in tools: A geological compass includes a clinometer for measuring angles. A regular compass does not.
- Different uses: Regular compasses are used for navigation. Geological compasses are designed for fieldwork in geology, like measuring faults, bedding planes, and other geological structures.
