| Model | SISCO-LGD-JJY |
| Gas Measurement Effective Distance | 50m/100m/150m |
| Detection Range | 0-100000 ppm.m |
| Explosion-proof Mark | Exib IIC T4 Gb |
| Charging Method | Mini USB charging |
| Accuracy | ±10% |
| Laser Safety | Class IIIR |
| Operating Voltage | 6.5V~8.4V |
| Response Time | ≤15ms |
| Working Power Consumption | ≤1.5~2.5V |
| Protection Level | IP66 |
| Display Mode | LCD |
| Battery Life | 20 Hours |
| Dimension | L292*60mm |
| Battery Type | Lithium Battery |
| Storage Temperature | -40℃ ~70℃ |
| Working Humidity | 98%RH (no condensation) |
| Operating Temperature | -20℃~50℃ |
| Weight | 223g |

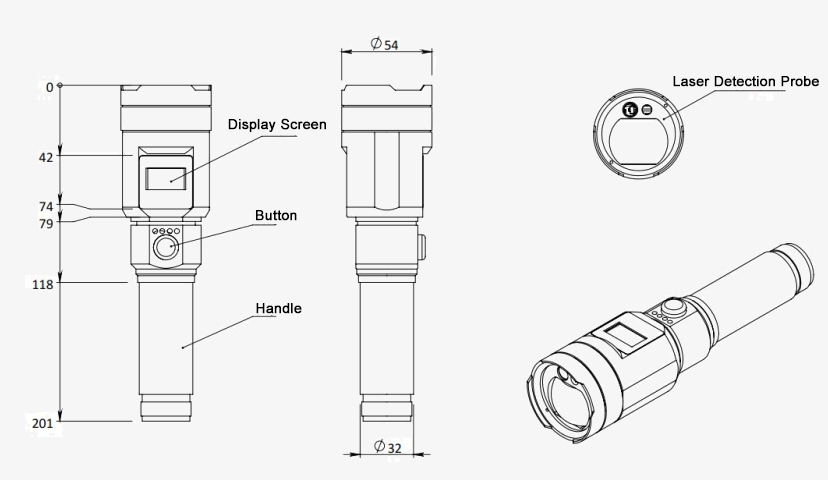

Dimension
This portable mini laser methane detector real-time monitoring capabilities, providing fast and accurate readings with a response time as quick as 0.01 seconds. It can perform 200 tests per second, enhancing operational efficiency and ensuring immediate action in case of methane leaks.

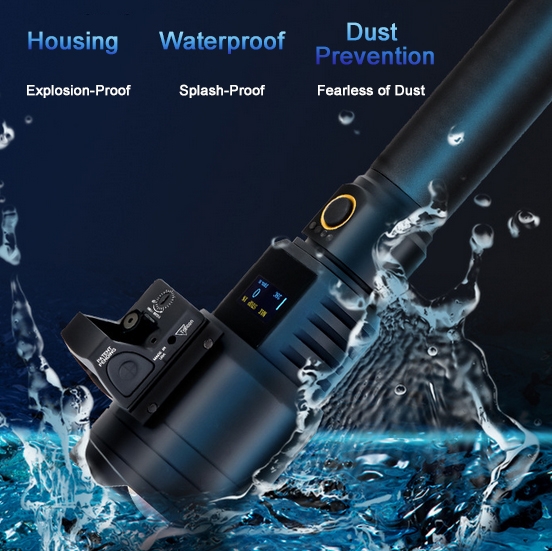

Waterproof & Explosion-Proof Laser Methane Gas Detector
- Explosion-Proof Certification ensures safe operation in hazardous environments with Ex ib IIC T4 Gb compliance.
- Laser methane gas detector features IP66 protection, providing resistance against corrosion, dust, and impact for durability in harsh conditions.
- Waterproof enclosure allows reliable operation in industrial sites with exposure to moisture and dust.
- Bluetooth module enables real-time communication with a mobile app for remote monitoring and data transmission.
Multiple Detection Ranges for Various Needs
- Integrated Methane Gas Cell continuously monitors the laser status and ensures precise spectral calibration.
- Laser Methane Gas Detector supports multiple detection ranges of 50 meters, 100 meters, and 150 meters, meeting various inspection needs.
- High-Speed Measurement performs 200 tests per second with a rapid response time of 0.01 seconds, significantly improving detection efficiency.
- Laser Diode Technology features a self-designed high-power light-emitting diode with strong penetration capability, ensuring accurate methane detection.
Applications
SISCO laser methane detector is primarily used in oil and gas exploration, environmental monitoring, gas pipeline inspection, industrial safety, and emergency response. It helps in methane leak detection, ensuring workplace safety, and preventing environmental hazards in these sectors.
Industrial Safety
Gas Inspection
Environmental Safety
Oil & Gas
Q1: What is a laser methane gas detector?
A1: A laser methane gas detector is a device designed to detect methane gas leaks by using laser technology. It offers a non-contact, remote sensing method to accurately identify methane presence in the air from a safe distance.
Q2: How far can a laser methane gas detector detect leaks?
A2: The laser methane gas detectorcan detect methane leaks up to 150 meters (with customizable options for longer distances, such as 200 meters and beyond), making it ideal for large-scale inspections.
Q3: Is the Laser Methane Gas Detector safe to use?
A3: Yes, the laser methane gas detector is designed to be safe, with non-contact detection capabilities. It allows for remote monitoring of methane leaks, reducing the risk to personnel and ensuring safer working environments.
Tips: Is the explosion-proof laser methane gas detector suitable for use in harsh environments?
Yes, the explosion-proof laser methane gas detector is designed for use in harsh environments. It features an IP66-rated waterproof and dustproof enclosure, providing excellent protection against moisture, dust, and other harsh conditions. Additionally, it meets Ex ib IIC T4 Gb explosion-proof certification, ensuring safe operation in potentially explosive atmospheres.
