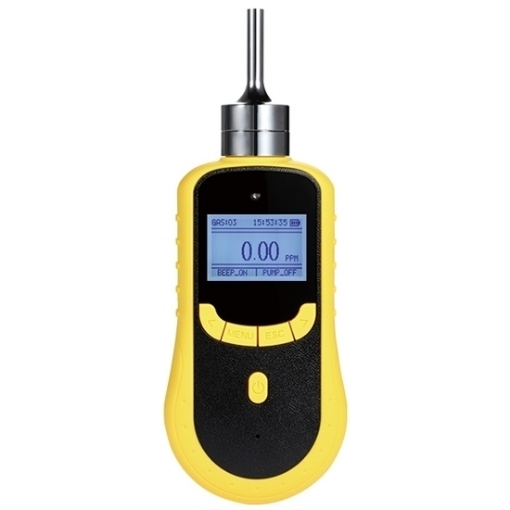

The portable hydrogen fluoride gas detector features a built-in micro-sampling pump with 10 grades of suction to ensure accurate sampling in varying environments. This professional detector allows for rapid switching between gas concentration units (PPM and mg/m³), ensuring that users can adapt to different measurement standards with ease.
Combustible gas detectors with dual unit measurement
- SISCO portable hydrogen fluoride gas detector provides a clear, real-time readout of gas type, unit, concentration, and local time, enhancing usability in various environments.
- Easily switch between English and Chinese for versatile operation, making it suitable for different regions and users.
- Quickly shift between PPM and mg/m³ for gas concentration measurements, offering flexibility in various applications.
- Handheld hydrogen fluoride gas detector with temperature and pressure compensation, able to realize the compensation for the gas concentration under different temperature and pressure environments.
Customizable alarm system
- High-strength engineering plastic housing offers anti-slip, waterproof, dustproof, and explosion-proof protection, ideal for tough working conditions.
- Certified explosion-proof design ensures safety in hazardous environments where flammable gases are present.
- The portable HF gas minitor is equipped with self-calibration and zero calibration features for highly accurate and reliable gas detection.
- Two-stage sound and light alarm with adjustable alarm points, providing timely warnings in dangerous situations.
Details
Applications
SISCO portable hydrogen fluoride (HF) gas minitor is used in chemical, pharmaceutical, municipal, water treatment, telecommunication, archaeology, laboratory, cold storage, brewing and other places to measure chlorine gas concentration to ensure the safety of humans and animals.
| Model | GD200-HF |
| Sampling Method | Pumping suction, flow rate can be up to 750ml/min |
| Detection Principle | Electrochemistry |
| Gas | Hydrogen Fluoride (HF) |
| Range (Optional) * | 0-1ppm, 0-5ppm, 0-10ppm, 0-50ppm |
| Resolution | 0.001ppm (0-1ppm, 0-5ppm, 0-10ppm), 0.01ppm (0-50ppm) |
| Accuracy | ≤±3% F.S. |
| Response Time | ≤10s |
| Repeatability | ≤±1% |
| Recovery Time | ≤10s |
| Linearity Error | ≤±1% |
| Zero Shift | ≤±1% (F.S./year) |
| Data Logging (Optional Function) | High speed data transmission by USB, available for data downloading and printing (The built-in IC card has about 2G memory, which can record 100,000 sets of data.) |
| Alarms | Sound, light and vibration |
| Display | LCD dot matrix display |
| Language | Chinese/English |
| Battery | 3.7V rechargeable lithium battery, 3.7 Watt (Charger included: Input AC 100-240V 50/60Hz with optional USA, Europe or UK plug) |
| Operating Time | 100h (Pump off) |
| Communication | Mini USB interface supports standard MODBUS communication protocol |
| Explosion-proof Grade | Ex ia IIC T4 |
| Case Material | ABS+PC |
| Protection Grade | IP66 |
| Certification | CE, ATEX |
| Operating Temperature | -20℃~50℃ |
| Operating Humidity | 0~95%RH (non-condensing) |
| Operating Pressure | 0.8~1.2bar |
| Dimension | 205*75*32mm |
| Weight | 300g |
| Warranty | 12 months |
| Extension Probe | About 480mm (Total Length), About 300mm (Probe Head) |
| Accessories (Optional) | Calibration kit - gas pressure regulator (calibration gas cylinder NOT included)
• Body Material: Stainless steel |
Note:
* If you need an combustible gas detector with other measuring ranges unlisted in the above table, please inform us of your operating environment to help you choose an appropriate one for your application.
* Other portable gas detectors are also provided, you can refer to SISCO Gas Detector Catalog to get the specific gas type and measurement range. If you have any questions, please feel free to contact us.
Gas Detector Catalog & User Manual
SISCO Gas Detector Catalogue- SISCO GD200 Portable Gas Detector User Manual
- SISCO GD300 Online Fixed Gas Detector User Manual
- SISCO GD400 Explosion Proof Portable Gas Detector User Manual
- SISCO GD500 Handheld Multi Gas Detector User Manual
- SISCO GD600 Multi Gas Analyzers User Manual
- SISCO Portable Gas Detector Communication Protocol V1.0
- SISCO Single Stage Pressure Regulator User Manual
Q1: What is a gas detector?
A1: A gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, handheld gas detector, fixed gas detector, online gas detector, etc.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas (hydrogen), acetylene, pentane, alkynes, acetone, toluene, alcohols, hydrocarbons, light oil, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, oxygen, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is ppm of gas detector?
A3: Parts per million or "ppm" is often used as a fractional measure of concentration. For example, a methane (molecular) concentration of 2% means that 2 out of every 100 air molecules are methane. Likewise, a methane concentration of 2 ppm means that 2 out of every 1 million air molecules are methane.
Tips: Is the Hydrogen Fluoride (HF) Gas Detector calibrated?
Yes, most handheld Hydrogen Fluoride Gas Detectors are factory-calibrated to ensure accurate readings. However, regular calibration is recommended to maintain optimal performance. Calibration should be performed using a known concentration of HF gas, and the frequency of calibration depends on usage and environmental conditions.
