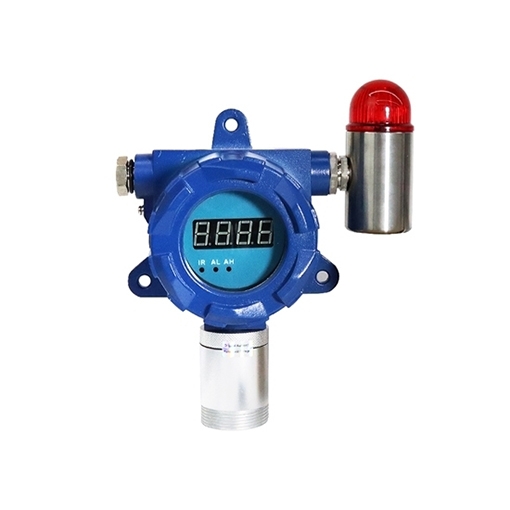

    Fixed Nitric Oxide (NO) Gas Detector, 0 to 100/500/1000 ppm

    SISCO highly accurate fixed nitric oxide gas detector with a wide range of measurement capabilities — 0 to 1ppm, 0 to 5ppm, 0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm, 0 to 250ppm, 0 to 500ppm, and 0 to 1000ppm. This gas detector ensures reliable readings even at low concentrations, is ideal for detecting both low and high concentrations of NO gas.
    SKU: GD300-NO
    *
    *
    *
    *
    *
    $689.99
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    This NO gas detector features advanced sensor technology to provide fast, reliable, and accurate measurements, minimizing the risk of false alarms. Suitable for factories, power plants, and confined spaces, this device ensures you maintain optimal safety standards.

    sisco fixed gas detector

    Anti-magnetic interference

    • The fixed nitric oxide gas detector supports 4-20mA analog output, relay output, or RS485 digital output for easy system integration.
    • SISCO nitric oxide (NO) gas detector features a durable explosion-proof design, ensuring safe operation in hazardous environments.
    sisco fixed gas detector

    Using high-precision sensors

    • The fixed nitric oxide gas detector is equipped with an infrared remote control as standard, which can realize the functions of alarm point setting, zero point calibration, and address modification without opening the cover.
    • Compatible with various control alarms, PLC, DCS and other control systems to realize remote monitoring.
    sisco fixed gas detector

    Variety of installation methods

    • Wall mounted type, installed on the wall directly, real time monitoring.
    • Piping type, installed on the pipeline, monitoring the gas concentration inside.
    • Flow type, connected with external sampling pump and tube, measure the gas concentration in enclosed space.

    Applications

    FixedNitric Oxide (NO) online gas detector can detect harmful gas of furniture, flooring, wallpaper, paint and other items, which is widely used in biological pharmaceutical factories, green home, livestock and poultry breeding, greenhouse cultivation, warehousing and logistics, brewing and fermentation, agricultural production, etc.

    Fixed online gas detector application

    Specs
    Model GD300-NO
    Detection Principle Electrochemistry
    Gas Nitric Oxide (NO)
    Range (Optional) 0 to 1ppm, 0 to 5ppm, 0 to 10ppm, 0 to 20ppm, 0 to 50ppm, 0 to 100ppm, 0 to 250ppm, 0 to 500ppm, 0 to 1000ppm
    Resolution 0.001ppm(0-1/5ppm), 0.01ppm (0-10/20/50ppm), 0.1ppm (0-100/250ppm) 1ppm (0-500/1000ppm)
    Accuracy ≤±3% F.S.
    Response Time ≤10s
    Repeatability ≤±1%
    Recovery Time ≤10s
    Linearity Error ≤±1%
    Zero Shift ≤±1% (F.S./year)
    Signal Output (Optional) 4-20mA and RS485
    Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional).
    Alarms Sound, light
    Display High light nixie tube display
    Installation Wall-mounted, piping type, flow-type (according to the detected environment)
    Connection Power connection type: G1/2 male thread explosion-proof flexible pipe
    Pipe-mounted type: M45*P2.0
    Operating Time 24h
    Explosion-proof Grade Ⅱ 2G Ex ia Ⅱ CT4 Ga
    Protection Grade IP65
    Certification CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
    Working Voltage 12-36V DC
    Case Material Die-casting aluminum housing
    Operating Temperature -20℃~50℃
    Operating Humidity 0~95%RH (non-condensing)
    Dimension 206*179*90mm
    Weight ≤1.6kg
    Accessories Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug)

    Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.

    Fixed Gas Detector Dimension (Unit: mm)

    Fixed gas detector with alarm dimension

    FAQs

    Q1: What is a fixed gas detector?
    A1:
    The fixed gas detector is composed of sensors and transmitters, and is installed at the detection site. The secondary instrument consisting of circuit, power supply and display and alarm device is installed in a safe place, which is convenient for staff to monitor. In industrial installations and production processes, fixed gas detectors are generally used, because fixed gas detectors can be installed at specific detection points to detect specific gas leaks.

    Q2: What does a gas detector detect?
    A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas (hydrogen), acetylene, pentane, alkynes, acetone, toluene, alcohols, hydrocarbons, light oil, etc.
    Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, oxygen, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.

    Q3: Difference between fixed gas detector and portable gas detector
    A3: The biggest advantage of fixed gas detectors is 24-hour uninterrupted measurement. As long as the power is turned on, the fixed gas detector is in normal detection work. Portable gas detectors are usually used in confined spaces and confined spaces, but the gas environment in these spaces is usually very complex, and there will be situations such as lack of oxygen and high concentrations of harmful gases.

    Tips:  How does the fixed NO gas detector alert me during a gas leak?

    The fixed nitric oxide (NO) gas detector alerts you during a gas leak with a dual alarm system. When NO levels exceed the preset threshold, the detector activates a loud audible alarm and a flashing visual alarm. This combination ensures that you are quickly and clearly notified of dangerous gas levels, allowing for a prompt and safe response.

    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
