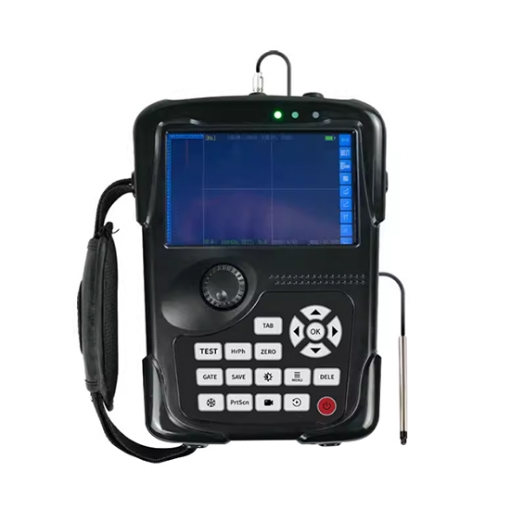

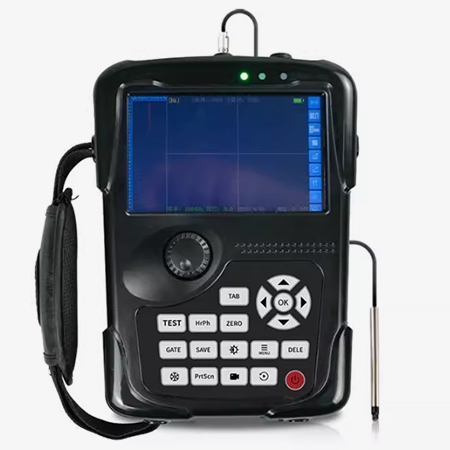

Portable Eddy Current Flaw Detector

Details

Q1: What is a flaw detector?
A1: A flaw detector is a device used to identify defects or imperfections in materials, structures, or components. It employs various non-destructive testing (NDT) techniques, such as ultrasound, eddy current, X-rays, or magnetic particle testing, to detect cracks, voids, or other irregularities. These methods help assess the internal and surface condition of materials, ensuring their quality and safety. Flaw detectors are widely used in industries like manufacturing, aerospace, and construction to improve product reliability and lifespan.

Q2: How does a flaw detector work?
A2: A flaw detector works by using non-destructive testing (NDT) techniques to inspect materials for internal or surface defects. For example, in ultrasonic testing, the device emits high-frequency sound waves that travel through the material. If there’s a flaw, the waves will bounce back, and the detector measures the time it takes for the sound to return, indicating the size and location of the defect. In other methods, like eddy current testing, electromagnetic fields are used to detect irregularities. The data collected helps technicians identify weaknesses without damaging the material.

Q3: What are the limitations of the eddy current flaw detection gauge?
A3: While the eddy current flaw detection equipment is a highly effective tool for non-destructive testing, it does have some limitations. One of the main drawbacks is its inability to detect deep subsurface defects, as it primarily focuses on surface and near-surface flaws. Additionally, the effectiveness of the detection can be influenced by the material's conductivity and geometry, meaning it may not be suitable for inspecting non-conductive or highly complex structures. The flaw and crack detection device also requires the use of specific probes and proper calibration for accurate results, which can sometimes be challenging for operators without extensive experience. Furthermore, while it is excellent for detecting certain types of defects like cracks and corrosion, it may not be as effective in identifying other types of damage, such as internal voids or material degradation.

Tips: What can affect an eddy current flaw detector reading?

Several factors can affect an eddy current flaw detector reading, potentially compromising the accuracy of the inspection. One key factor is the material’s conductivity; variations in conductivity, such as those found in different alloys, can influence the strength and depth of the induced eddy currents, leading to inconsistent results. The surface condition of the material is also critical—rough, uneven, or corroded surfaces can distort the eddy current flow and make defect detection more challenging. Additionally, the geometry of the test object, including its shape and thickness, can impact the ability of the flaw detector to effectively identify defects. The probe type, positioning, and alignment are other crucial factors that can affect the readings, as improper probe setup can result in inaccurate measurements. External factors like temperature and electromagnetic interference can also distort signals and reduce the reliability of the results. Furthermore, the calibration of the flaw detector and the skill of the operator play a significant role in ensuring precise and consistent readings during inspections.
