Good quality leakage current clamp meter comes with a measuring range of 0.00mA-2000.00A, and a large jaw opening of 80*80mm. The high-precision clamp leakage current meter has an RS232 interface, and its software can be monitored online in real-time and historically inquired, dynamically displayed, with maximum, minimum, and average value indication, alarm value setting and alarm indication functions, and historical data reading, saving, Printing and other functions.

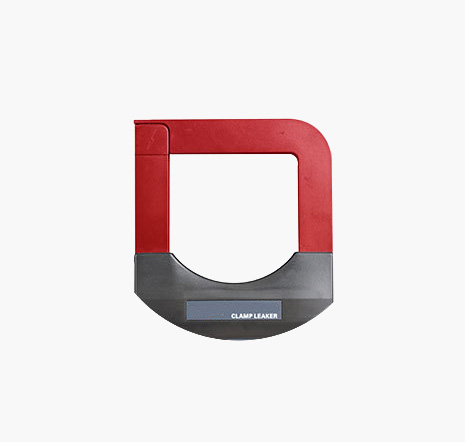

Super large diameter, more practical
- Large diameter 80mm×80mm, can clamp 96mm flat wire or flat steel ground wire.
- Especially suitable for cable and transformer grounding flat steel leakage detection.

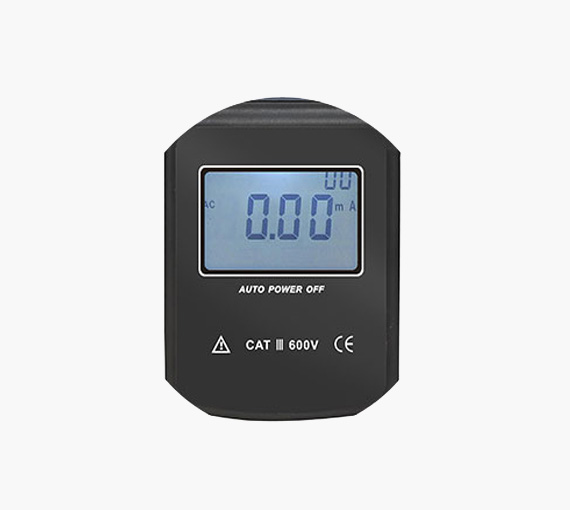

Large display design
- Current value display
- Data save group number display
- AC current identification
Applications
sisco clamp current meter is available with a measuring range of 0mA-60A AC/DC. The clamp ammeter is especially suitable for places with dense wiring (power metering systems, high-speed rail systems, automotive circuit maintenance, etc.), and non-contact current measurements to ensure safe operation. The instrument is small in size, high in precision, stable in performance and perfect in function, and is one of the necessary tools for electrical safety inspection and maintenance.
| Model | SISCO-ETCR7000 |
| Range | AC 0.00mA~2000A |
| Resolution | 0.01mA |
| Storage Data | 99 Groups |
| Jaw Size | 80x80mm |
| Function | AC leakage current, current test |
| Power Supply | 6V DC (LR6x4 alkaline dry batteries, continuous use 12 hours) |
| Test Method | Clamp-on CT, integral method |
| Measurement Accuracy (2℃±3℃, below 70%RH, wire is in the center of the jaws) | 0.00mA~300A:±1.5%±3dgt |
| 300A~1200A:±2%±3dgt | |
| 1200A~2000A:±3%±3dgt | |
| Wire Position | The wire under test is in the center of the jaws |
| Data Storage | 99 groups, the "FULL" symbol is displayed to indicate that the storage is full |
| RS232 Interface | RS232 interface enables uploading of stored data to a computer for easy data analysis |
| Communication Cable | RS232 communication cable, 1.8 meters long |
| Frequency | 50Hz, 60Hz automatic recognition |
| Gear Shifting | Fully automatic |
| Sampling Rate | About 2 times per second |
| Line Voltage | AC 600V or below line test |
| Display Mode | 4-digit LCD digital display, length and width 47mm x 28.5mm |
| Backlight | Yes, controlled by LIGHT key |
| Data Hold | Data hold function "HOLD" symbol displayed |
| Overflow Display | Over-range overflow function: "OL" symbol display |
| Automatic Shutdown | If there is no operation for about 5 minutes after startup, the backlight will turn off automatically. If there is no operation for about 15 minutes, the screen will flash for 10 seconds before the device shuts down to save battery. Press any key to cancel the flashing. |
| Battery Voltage | When the battery voltage drops to around 5.2V, the low battery icon appears as a reminder to replace the battery. |
| Working Current | 50mA when backlight is on; 25mA when backlight is off |
| Working Temperature and Humidity | -10℃~40℃; below 80%rh |
| Storage Temperature and Humidity | -10℃~60℃; below 70%rh |
| Dielectric Strength | AC 3700V/rms (between core and shell) |
| Applicable Safety Standards | IEC1010-1, IEC1010-2-032, pollution level 2, CAT â…¢I (600V) |
| Dimension | Length 275mm x Width 145mm x Thickness 40mm |
| Weight | 830g (Batteries not included) |
Q1: What is clamp ampere meter?
A1: A clamp ammeter is a combination of a current transformer and an ammeter. The iron core of the current transformer can be opened when the wrench is tightened; the wire through which the measured current passes can pass through the gap opened by the iron core without being cut off, and the iron core is closed when the wrench is released.
Q2: How does a current clamp meter work?
A2: A clamp meter is a clothespin-shaped instrument that can be clamped around a live wire in order to measure the current it's carrying. As a measurement principle, clamp meters detect the magnetic field emitted by current flowing in a wire in order to measure the current value.
Q3: How to use a clamp ammeter?
A3: When using a clamp ammeter to detect the current, be sure to clamp a measured wire (wire). If two (parallel wires) are clamped, the current cannot be detected. In addition, when the center (core) of the clamp ammeter is used for detection, the detection error is small. When checking the power consumption of home appliances, it is more convenient to use a line splitter. Some line splitters can amplify the detection current by 10 times, so the current below 1A can be amplified before detection. Use a DC clamp ammeter to detect the DC current (DCA), if the current flows in the opposite direction, it will display a negative number. This function can be used to detect whether the car's battery is in a charging state or a discharging state.
Tips: What is a clamp current meter?
The clamp ammeter is specially designed and manufactured for measuring AC leakage current. It adopts the latest CT technology and digital integration technology. It has the characteristics of small size, high precision and complete functions. Widely used in electric power, communications, meteorology, railways, oil fields, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. The sensing iron core is made of a special alloy and adopts magnetic shielding technology, which is hardly affected by the external magnetic field, ensuring high precision, high stability and high reliability of uninterrupted measurement all year round. The high-precision clamp leakage current meter has an RS232 interface, and its software can be monitored online in real-time and historically inquired, dynamically displayed, with maximum, minimum, and average value indication, alarm value setting and alarm indication functions, and historical data reading, saving, Printing and other functions. The high-precision clamp leakage current meter can be used for AC line current measurement below AC600V, and online current measurement, and also has functions such as peak hold, data hold, and data storage. It is easy to use and is an essential tool for electrician safety testing.
