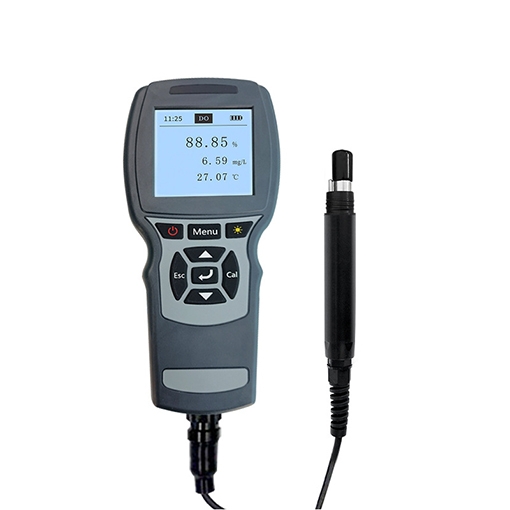

High-quality DO meter provides a keyboard and backlight with comprehensive functions, simple operation and a brief interface. The response time of SISCO optical dissolved oxygen probe is as low as 30 seconds, making the measurement of dissolved oxygen more accurate, more stable, faster and more convenient. The professional dissolved oxygen meter is widely used in wastewater treatment, aquaculture, water and water quality monitoring.

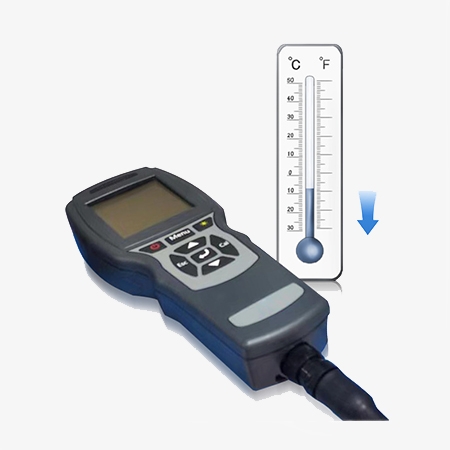

Automatic temperature compensation
- Fast response time.
- No flow rate limit, and no heating required.
- The dissolved oxygen probe can reduce temperature difference to ensure accurate measurement results.

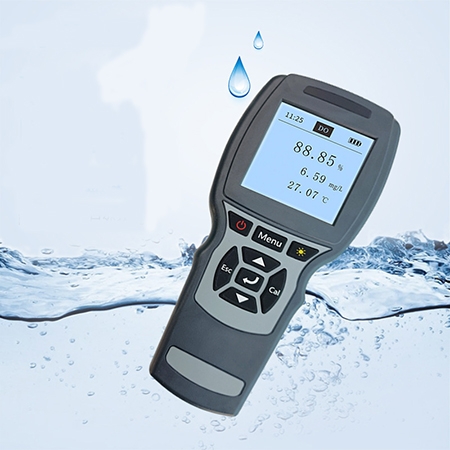

IP67 protection grade
- Full body waterproof, high protection grade.
- The dissolved oxygen tester can withstand various outdoor conditions.
- DO meter with an LCD with a backlight display.

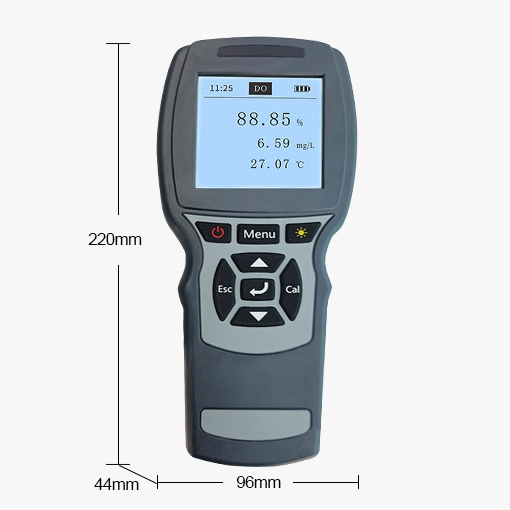

Dimension
Applications
SISCO dissolved oxygen meters are specially used to measure the dissolved oxygen content in water. Dissolved oxygen refers to the oxygen dissolved in water, which is very important for aquatic organisms. It is mainly used in aquaculture, wastewater treatment, domestic water, environmental water quality testing, and other fields.
Water Quality Test
Aquaculture
Wastewater Treatment
Water
| Model | SISCO-DOM-RYG |
| Optical Dissolved Oxygen Sensor | |
| Component Description | Fully submersible probe |
| Probe Size | φ16*180mm |
| Probe Weight | 51g |
| Probe Cable Length | 5m |
| Cable Minimum Bending Radius | 15mm |
| Sensor Interface | Support RS-485, MODBUS protocol |
| Dissolved Oxygen Measurement Range | 0-20mg/L or 0-200%air Sat |
| Measurement Accuracy | 0-200%: ±1% |
| Response Time | 30s |
| Sensor Drift | ＜1% per year |
| Temperature Accuracy | ±0.2 ℃ |
| Operating Temperature Range | 0~50 ℃ |
| Storage Temperature Range | -40~85 ℃ |
| Calibration | One or two-point calibration |
| Life of the Fluorescent Cap | Guaranteed to be used for one year (under normal use) |
| Handheld Meter | |
| Dimension | 220*96*44mm |
| Weight | 460g |
| Power | 2*18650 rechargeable batteries |
| Operating Temperature Range | 0~50 ℃ |
| Storage Temperature Range | -40~85 ℃ |
| Display | 54.38*54.38 LCD with backlight |
| Air Pressure Compensation | Built-in meter, automatic compensation 50~115 kPa |
| Protection Level | IP67 |
| Data Storage | √ |
| Timed Shutdown | √ |
Q1: What is a dissolved oxygen meter?
A1: A dissolved oxygen meter is a device used to measure the amount of oxygen dissolved in a liquid, typically water. Dissolved oxygen (DO) is a crucial parameter for assessing water quality because it directly impacts the health and viability of aquatic life.
Q2: What does a dissolved oxygen meter measure?
A2: A dissolved oxygen meter measures the concentration of oxygen dissolved in water, typically in milligrams per liter (mg/L) or parts per million (ppm). This measurement is crucial for assessing water quality, ensuring the health of aquatic life, and optimizing processes in wastewater treatment and various industrial applications.
Q3: Is a dissolved oxygen meter accurate?
A3: Yes, a dissolved oxygen meter is generally accurate, especially when properly calibrated and maintained. Modern meters, whether using electrochemical or optical sensors, provide precise measurements of dissolved oxygen levels in water. Regular calibration against known standards and proper maintenance of the sensor are essential to ensure continued accuracy.
Tips: What is the fluorescence method of measuring dissolved oxygen?
This method uses the quenching phenomenon of oxygen to calculate the level of DO. Fluorescence from a fluorescent material excited by light from a blue light-emitting diode (LED) is quenched by oxygen passed through a DO permeable layer. When the dye is excited by a specific wavelength of light, it emits fluorescence. The presence of oxygen quenches this fluorescence, meaning the more oxygen present, the less fluorescence is emitted. The sensor measures the intensity and lifetime of the fluorescence, which are inversely proportional to the dissolved oxygen concentration. This method is known for its high accuracy, stability, and low maintenance requirements.
