The dial height gauge can measure various dimensions such as height, depth, groove width, inner and outer diameters, hole center distance, etc. It has high precision, versatility, and easy operation, and is suitable for various industrial and laboratory measurement needs.
High Precision Measurement

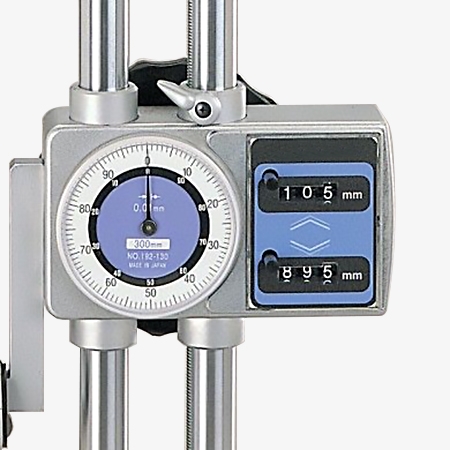

- The upper and lower digital counters and dials can easily and accurately read the measured values.
- The upper and lower relative counters can be reset to zero (reset) at any position with one button
- The tip of the scriber is made of carbide, which is hard and wear-resistant, ensuring the clarity and durability of the scribe.
Quality Assurance
- The height gauge has a drive handwheel for easy coarse adjustment and operation of the scale frame.
- The dial height gauge has a double-column design for a more stable and secure measurement process.
- The dial indicator height gauge has a large adjustment handwheel for quick and easy height adjustment, a locking handle for easy operation, and an ergonomic base for a comfortable grip and easy movement on the platform.
Applications
Height gauges are a precision measuring tool widely used in many fields. In the field of industrial manufacturing, height gauges are an indispensable measuring tool. It can be used to measure the size of parts to ensure that the quality of the product meets the requirements. In the field of automobile maintenance, height gauges are used to measure whether the size of automobile parts meets the standard specifications. By regularly measuring the size changes of key parts, the wear and tear of the parts can be determined and repaired or replaced in time. When installing some precision parts, height gauges are used to ensure the accuracy of the installation position and size. In the field of scientific research, scientists often need to measure the size of tiny objects.
Mobile Manufacturing
Mold Manufacturing
Scientific Research
Machinery Manufacturing
Q1: What is a vernier height gauge?
A1: The vernier height gauge is used to measure vertical dimension from the reference ground. Vernier Height Gauge consists of a graduated scale or bar held in a vertical position by a finely ground fixed base.
Q2: What is the advantage of the vernier height gauge?
A2: Relatively simple to operate, their main advantage over other height gauges is the range of sizes they come in, meaning they can be used to measure a wide range of workpieces accurately. Typically, two scales are shown on the beam of the height gauge.
Q3: What is the vernier height gauge used for?
A3: Vernier height gauges are used in metrology and metalworking to detect or measure vertical distances. The height gauges are often used to measure a granite surface or scribe part features from a datum plane. To detect the measured feature, a scriber, test indication, touch probe, or CMM-style probe is often utilized.
Tips: The Difference Between Double-Column and Single-Column Height Gauges
Double-column height gauges have two measuring columns, which are usually fixed at a certain distance and can provide a more stable measuring platform. Due to its good structural stability and wider measuring range, it is suitable for precision measurement and measurement of large workpieces, but its price is relatively high. Single-column height gauges have only one measuring column, which is usually fixed on a base. When measuring, the instrument is placed next to the object to be measured, and the measurement is performed by moving the measuring column. It has a simple structure, high accuracy, and low price. It is suitable for general measurement and measurement of small workpieces. The choice of which type of height gauge should be determined according to the specific measurement needs, workpiece size, and accuracy requirements.
Â
| Mdoel | SISCO-VHG-192130 | SISCO-VHG-192131 | SISCO-VHG-192132 |
| Measuring Range | 0~300mm | 0~450mm | 0~600mm |
| Maximum Allowable Error | ±0.03mm | ±0.05mm | |
| Graduation Value | 0.01mm | ||
| Height | 47cm | 64.8cm | 79.8cm |
| Weight | 4.2kg | 9.2kg | 9.8kg |
Â

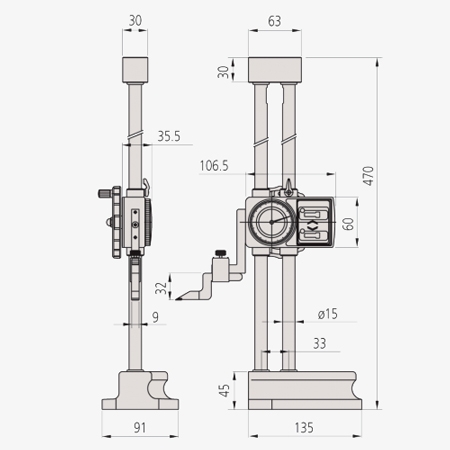

Structure Diagram
