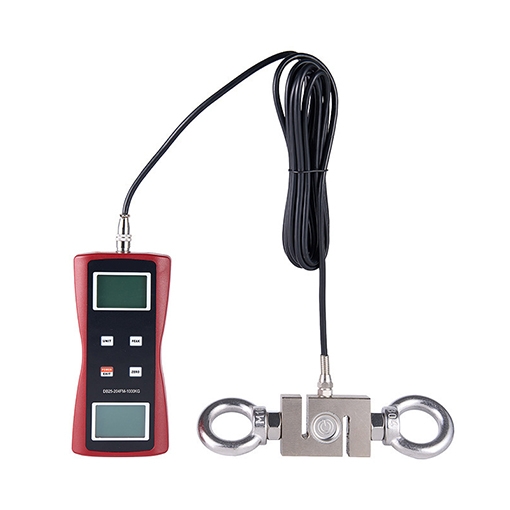

Lower-cost digital force gauge is a versatile measurement tool designed to accurately measure both push (compression) and pull (tension) forces. The force gauge has three units of kgf, N, lbf can be switched. This digital push pull gauge provides precise force measurements with digital readouts that enhance ease of use and data accuracy.

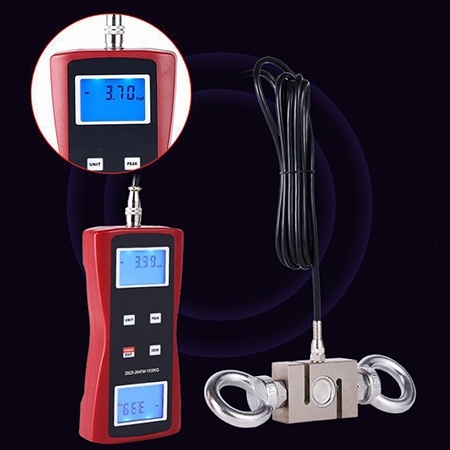

Large screen display, clear and intuitive display
- The force gauge features a large, high-definition display that presents measurements in a clear and easy-to-read format, reducing the chances of misinterpretation during testing.
- The display may include a backlighting feature, making it visible in low-light conditions or dim environments, ensuring that you can read measurements clearly anytime.
- Users can easily switch between different units of measurement (N, kgf, lbf) directly on the display, allowing for versatile use across various applications without needing external conversions.
- The gauge may include a data hold function, which allows users to freeze the displayed reading for easy reference, especially during hands-on measurements.

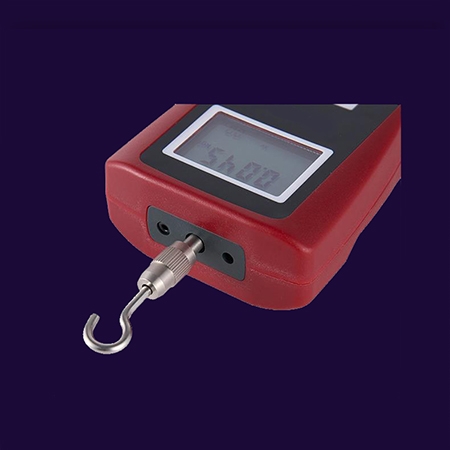

The digital push-pull gauge design with a hook with high-strength material
- The push-pull gauge features a robust hook for quick connection and disconnection, ensuring stability and safety during use. This design enhances flexibility for various applications.
- Digital force gauge offers various measurement modes, including peak hold and continuous measurement, catering to different testing needs, allowing users to easily select the appropriate measurement method.
- The gauge includes adjustable sensitivity settings, enabling users to modify the sensitivity according to specific testing requirements for more accurate measurements.

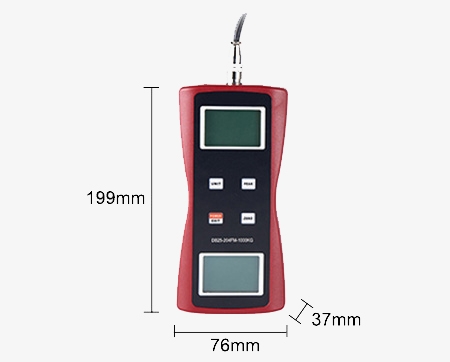

Dimension
Applications
SISCO pull push force gauge is suitable for push-pull load test in industries such as electronic appliances, light industry textiles, construction hardware, lighters and ignition devices, fire-fighting equipment, pens, locks, fishing gear, power machinery, scientific research institutions, etc.
Building Hardware
Light Industry and Textiles
Auto Parts
Electronic Appliances
| Model | SISCO-DFG-DB25-2KN | SISCO-DFG-DB25-5KN | SISCO-DFG-DB25-10KN | SISCO-DFG-DB25-20KN | SISCO-DFG-DB25-50KN | SISCO-DFG-DB25-100KN |
| Mesuring Range | ±200 kgf | ±500 kgf | ±1000 kgf | ±2000 kgf | ±5000 kgf | ±10000 kgf |
| ±1960 N | ±4900 N | ±9800 N | ±19600 N | ±49000 N | ±98000 N | |
| ±440 lbf | ±1100 lbf | ±2200 lbf | ±4400 lbf | ±11000 lbf | ±22000 lbf | |
| Resolution | 0.01 kgf(＜100 kgf), 0.1 kgf (≥100 kgf) | |||||
| 0.1 N (＜1000N), 1 N (≥1000N) | ||||||
| 0.01 lbf | ||||||
| Accuracy | Level 0.5 | |||||
| Precision | 0.5% F.S, ±1 digit | |||||
| Units | kgf, N, lbf | |||||
| Measurable Values | Peak value, instantaneous value | |||||
| Display | Four-digit large LCD, dual display screen for both forward and reverse directions | |||||
| Off Mode | Automatic shutdown after 10 minutes or manual shutdown | |||||
| Backlight | Blue backlight | |||||
| Allowable Load | 150% F.S (beep alarm when exceeding 110% F.S) | |||||
| Operating Temperature | 0-40℃ | |||||
| Operating Humidity | ＜80% | |||||
| Operating Environment | No seismic source or corrosive medium around | |||||
| Host Size | 199*76*37mm | |||||
| Sensor Size | 181*54*30mm | |||||
| Weight | 2kg | |||||
Q1: What is a digital force gauge?
A1: The digital force gauges are force-measuring devices with built-in load cells and are used to measure compression, tension, peel, or the coefficient of friction.
Q2: What does a force gauge measure?
A2: A Force Gauge is a measuring instrument used across all industries to measure the force during a push or pull test. Applications exist in research and development, laboratory, quality, production, and field environment. There are two kinds of force gauges today: mechanical and digital force gauges.
Q3: How do you read a force gauge?
A3: The switch is usually located on the face of the tool. Remember that tension (a pulling force) will be displayed as a positive number. Compression (a pushing force) will be displayed as a negative number.
Tips: How to maintain the digital push pull force gauge?
- Calibration: Calibrate the device regularly according to the manufacturer’s instructions to ensure accurate measurements over time.
- Cleaning: Wipe the gauge with a clean, dry cloth after each use to remove dust or debris, and avoid using any harsh chemicals.
- Environment: Store the gauge in a stable environment, away from extreme temperatures, humidity, or corrosive elements that could affect its performance.
- Handling: Handle the gauge carefully to prevent mechanical shocks, and avoid overloading it beyond its specified capacity to protect the sensor.
- Storage: Keep the gauge in a protective case when not in use, ensuring it is stored in a dry, temperature-controlled area.
- Inspection: Regularly inspect the gauge for signs of wear or damage, and address any issues immediately to prevent performance degradation.
