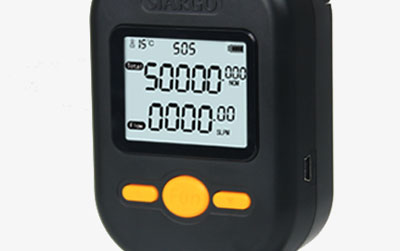

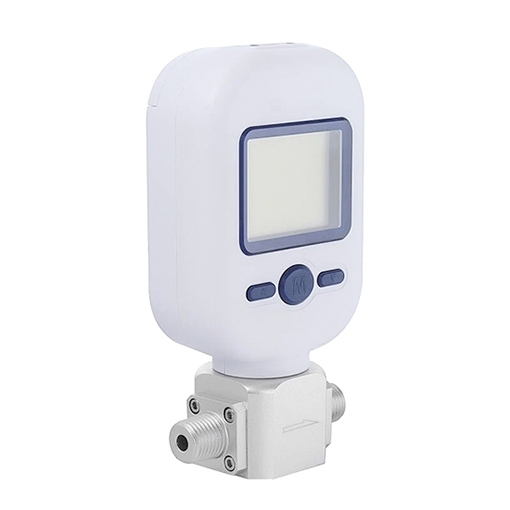

Small portable gas flow meter with digital display, flow range 0~20L/min, high sensitivity, good repeatability, can accurately track the flow rate, widely used in mechanical and electrical, food, chemical and pharmaceutical industries.
No temperature compensation required
- Sensing chip using thermal mass flow measurement, to ensure the flowmeter's high precision metering.
- Digital gas flow meter full range of high stability, high accuracy, and excellent repeatability.

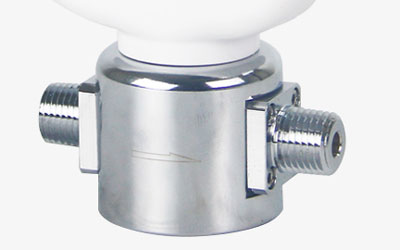

Flexible output
- Active upload via communication interface Data.
- Digital gas flow meter allows field configuration of the flow meter parameters with the keypad.
Application
Gas flow meters are widely used in the petrochemical, natural gas industries, environmental protection, energy measurement, modern agriculture, water conservancy construction, biological engineering, pipeline transportation, aerospace, scientific experiments, and other fields.
| Model | SISCO-MF5706 | SISCO-MF5708 | SISCO-MF5712 | |
| Flow Range | 0~20L/min | 0~100 L/min | 0~250 L/min | |
| Power Supply | 4 AA batteries (LR6) or 5-24V DC | |||
| Power Adapter | Input: 100-240V AC, 50/60Hz, Output: 7V DC, 0.2A | |||
| Power Consumption | ≤10mW | |||
| Signal Output * | RS 485 | |||
| Display | LCD | |||
| Display Unit | Instantaneous flow rate: L/min, Flow accumulation: m3 | |||
| Instantaneous Flow Resolution | 0.01 L/min | |||
| Flow Accumulation Resolution | 0.001 m3 | |||
| Working Pressure | ≤0.8MPa | |||
| Pressure Loss | ≤600Pa | ≤1000Pa | ≤2000Pa | |
| Working Temperature | -10℃ ~ +55℃ | |||
| Humidity | 0~95%RH (non-condensing) | |||
| Keyboard | 3 keys | |||

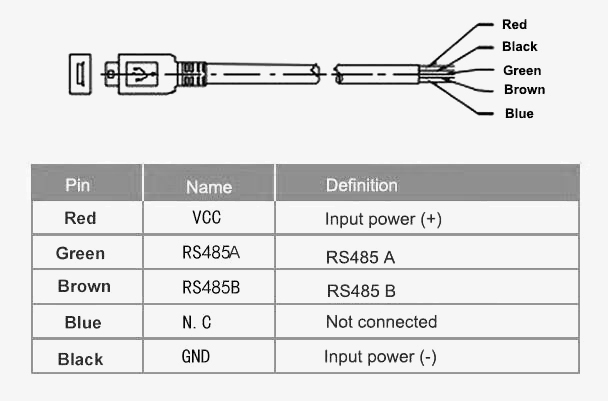

| User Interface | Type-C USB port (This interface is connected to the power adapter for power supply, power cable is 0.5m, and it can also be used as a connection interface for 485 communication.) | |||
| Calibration | Air @20℃, 101.325kPa | |||
| DN | 6mm | 8mm | 12mm | |
| Mechanical Connection | NPT 1/4" | NPT 3/8" | NPT 1/2" | |
| Weight | 185g (Copper body) | 270g (Aluminium alloy body) | 350g (Aluminium alloy body) | |
| Protection Class | IP40 | |||
| Gas * | 1. Power adapter, Type-C USB with 0.5m cable 2. RS485 data cable, Type-C USB port |
|||
| Accessories | IP40 | |||

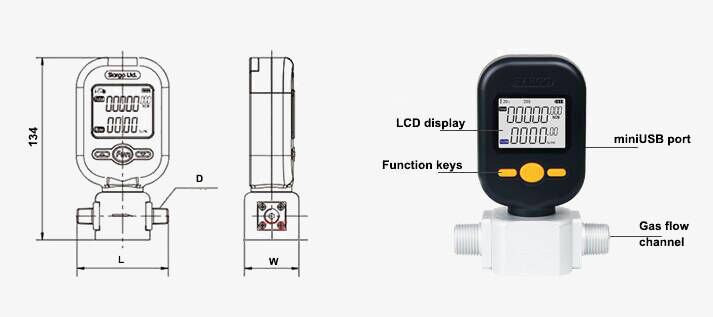

Dimension (Unit: mm)
| Model | L | W | D |
| ATO-MF5706 | 67 | 40 | NPT 1/4 |
| ATO-MF5712 | 98 | 50 | NPT 1/2 |
Digital Gas Mass User Manual.pdfQ1: Can a digital gas flow meter have perfect accuracy?
A1: In an ideal world, the flow readings from your process meter would be exactly correct, without any type of deviation. Unfortunately, this is not the case, and the errors inherent in measurement must always be identified, accounted for, and minimized as much as possible.
Q2: Does a digital gas flow meter need to be calibrated?
A2: During the production of a flow meter, several steps are required such as coil winding, lining processing, and electrode assembly. This series of operations can cause a certain amount of error and dispersion in the device, so a calibration process is required to correct the accuracy.
Q3: Do gas mass flow meters have temperature and pressure compensation?
A3: Our MF4000/5000/5700 series are all without temperature/pressure compensation. As long as the gas is under working pressure & temperature ranges, the accuracy will be as stated.
Tips: What affects magnetic flow meter measurement accuracy?
1. liquid to be tested contains bubbles.
2. The liquid to be measured is non-full in the pipe.
3. Short circuit effect of conductive sediments.
4. The liquid generates crystallization.
5. Liquid conductivity exceeds the allowable range.
6. Spatial electromagnetic disturbance.
7. Unsymmetrical flow of the fluid to be measured.
8. Vibration of the installation site affects the accuracy of flow meter.
