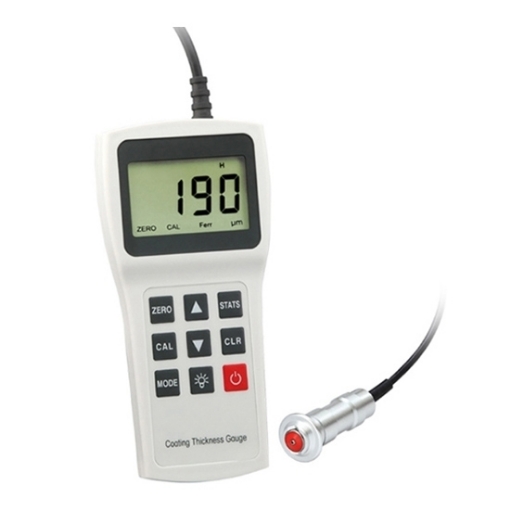

    Digital Coating Thickness Gauge, 0-2000 μm

    The coating thickness gauge is a highly accurate and compact instrument for non-destructive, fast, high-accuracy coating thickness measurement. Paint thickness gauge with measurement ranges 0-1500μm, 0-2000μm, 0-3000μm, and 0-10000μm are available. High-standard paint thickness tester has a case is made of high-quality plastic with a shockproof rubber cover for increased durability.
    SKU: SISCO-DCTG-2000
    $929.25
    i h
    🚚 Free shipping
    🔙 30-day returns
    📅 Delivery: 7-12 days
    Overview


    Buy a paint depth gauge online which has zero point, one point, two point three calibrations. The high-performance appearance is made of large buttons which it easier to use, dynamic measuring probes for measuring curved surfaces. Digital coating thickness gauge can automatically recognizes non-ferrous and ferrous substrates. Works with aluminum, steel, and iron.

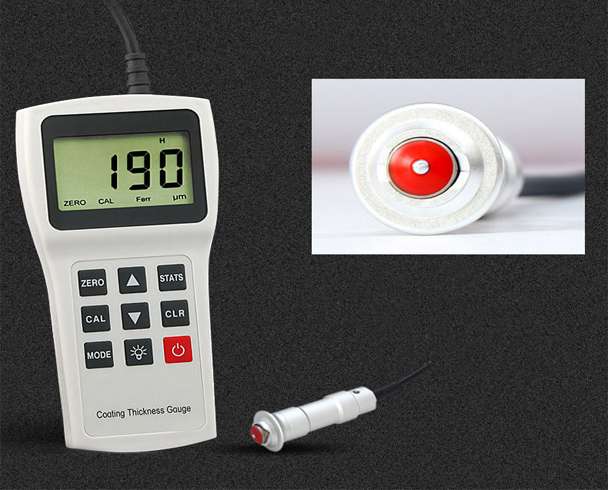

    Detail of 0-2000 um digital coating thickness gauge

    Easy to use

    • Large buttons for easy operation
    • High contrast segment LCD screen
    • Durable probe

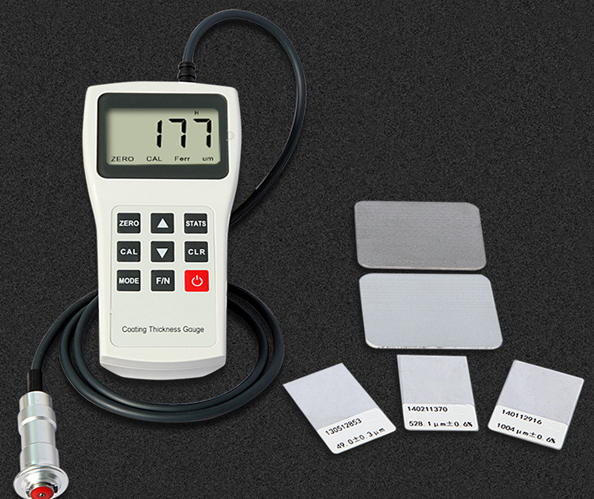

    0-2000 um digital coating thickness gauge detail


    High accuracy

    • Good repeatability
    • High measurement accuracy
    • Soft probe wire, not easy to break

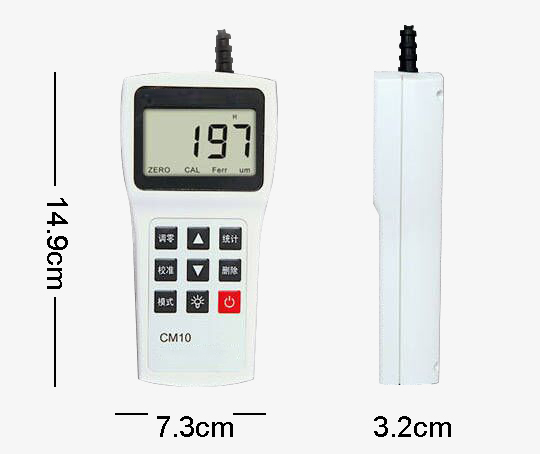

    Dimension Unit (mm)

    0-2000 um digital coating thickness gauge dimension

    Application

    The thickness measurement of the cladding is the most important process of quality inspection implemented in the metal processing industry. The coating thickness gauge perfectly handles these situations and fully enhances manufacturing efficiency, so it is widely used in metal processing, chemical industry, commercial inspection, electroplating, spraying, aluminum profiles, steel structure, etc. It is also suitable for shipbuilding, aerospace, electric power, pot special inspection, technical supervision and other industries.

    Application of digital coating thickness gauge

    Specs



    Model SISCO-CM10FN SISCO-CM10N SISCO-CM10F SISCO-CM10FH
    Measuring Range 0-1500μm 0-2000μm 0-3000μm 0-10000μm
    Accuracy (μm) ± (2%H+2) μm ± (2%H+2) μm ± (2%H+2) μm ± (2%H+10) μm
    Working principle Magnetic induction/ Eddy current Eddy current Magnetic induction Magnetic induction
    Minimum curvature radius 5mm 5mm 5mm 10mm
    Minimum diameter of substrate 20mm 20mm 20mm 40mm
    Minimum thickness of substrate 0.5mm 0.5mm 0.5mm 2mm
    Display LED Display
    Working temperature -10-50℃
    Statistics Number Of Measurements, Maximum, Minimum, Average, Standard Deviation
    Calibration Zero Point, One Point, Two Point Calibration
    Power Supply 2*1.5V AAA Batteries
    Dimension 149*73*32mm
    Net Weight 0.2kg
    Auto Power-off
    FAQs

    Q1: Is laser distance meter accurate?
    A1: The laser measure is accurate to within 1/8" and measures to 50 feet. It makes this measuring tool more accurate, easier and faster than a tape measure.

    Q2: How do I choose a laser distance meter?
    A2: Most lasers measurers are easy to fit into the palm of your hand, but some are bigger than others. If you have small hands and want a small unit that is easily controlled, or if you have big hands and need a larger laser for ease of use, check on the exact size of any model you are considering.

    Q3: Do laser distance meter work outside?
    A3: If you work outside, an optical scope or digital point finder is a must. Without a scope or a point finder, you can see a laser point at a maximum distance of about 30 feet on a bright day. Chances are, if you are measuring outside, 30 feet isn't going to cut it.

    Tips: How to maintain a digital coating thickness gauge?

    Coating thickness gauges are widely used control tools among applicators and inspectors. With a little care and maintenance, these mechanical and electronic instruments can provide quality service for many years.

    • Don't wait for calibration
      Before first use, and occasionally afterward, it is always a good idea to read the owner's manual again to familiarize yourself with the features and capabilities of the instrument. Note the model, serial number, date of purchase inside the owner's manual, and highlight maintenance and calibration tips.
    • Use it but don't overdo it
      Now that you have finished the writing work, take measurements on the test panels or shims that came with your measurer. You can also use parts of your office furniture or other metallic painted object to make sure the measurer is working properly and that you are using it properly. Measurers come in different shapes and sizes. Make sure you know the correct way to hold and use your model. Most handheld scanners take one measurement at a time. Lift the probe from the surface at least 5 cm between measurements. Moving the probe across the surface shortens its life.
    • Before putting it away
      It is a good idea to check the probe head before putting it away. Fresh paint or other material can be removed and the problem can be directly solved, avoiding an unpleasant surprise the next time you use it. It is usually no problem for the user to leave the batteries and the probe attached for a short period of non-use. Put the meter back in its original bag or packaging. Cover the probe. Store the meter in a dry place, away from magnetic fluxes and extreme temperatures. When you go to find it for a new use, a quick check on a known thickness is. This excludes the need for scheduled and periodic maintenance. Do not forget to place the user manual and spare batteries next to the meter. Whether it is the magnetism or eddy current method of measurement, a coating thickness gage requires only a little regular attention to ensure years of accurate and reliable service.



    Warranty

    Thank you for buying industrial test and measurement equipment on SISCO.com, all products sold by SISCO and the partner cover a 12 months warranty, effective from the date of receiving the products.


    What is covered?

    SISCO is responsible for providing free spare parts, and free technical support to assist the customer to repair the defective products until the problem is solved.


    What is not covered?

    • Product purchased from anyone other than a SISCO store or a SISCO authorized reseller.
    • Expendable parts.
    • Routine cleaning or normal cosmetic and mechanical wear.
    • Damage from misuse, abuse or neglect.
    • Damage from use of parts other than SISCO approved.
    • Damage from use outside the product’s usage or storage parameters.
    • Damage from use of parts not sold by SISCO.
    • Damage from modification or incorporation into other products.
    • Damage from repair or replacement of warranted parts by a service provider other than a SISCO authorized service provider.
    • Damage caused by the application environment not meeting the product usage requirements and the failure to perform preventive maintenance.
