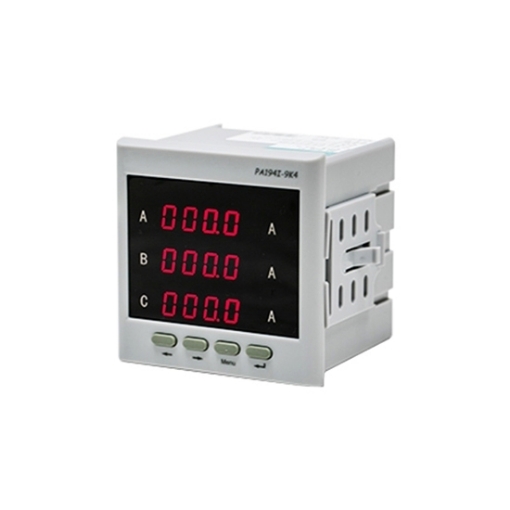

sisco 3 phase digital AC ammeter is suitable for the measurement of the three phase current parameters of the power distribution system. This display panel meter has programmable ratios, supports analog output and communication functions, which can measure AC current precisely.
With large digital screen
Digital ampere meter has a high-definition LED large digital tube screen, and the data is clear at a glance.
With terminal block
Digital ampere meter has a terminal block for easy wiring and less power loss.
Applications
sisco digital ampere meter can measure 3 phase AC current, which is widely used for control system, distribution network automation, new energy substation, industrial automation and intelligent building, energy management system, etc.
| Model | SISCO-PA194I-â–¡X4/â–¡k4 | ||
| Level of Accuracy | 0.5 Level, 0.2 Level | ||
| Display | LED Display | ||
| Display Data Refresh Frequency | 1s | ||
| Input Characteristics | Current | Rated Value | AC 5A (Default) or 1A |
| Overload | Duration: 1.2In, Instantaneous: 20In/1s | ||
| Frequency | 45 ~ 65Hz | ||
| Auxiliary Power | Working Scope | AC 80 ~ 270V (50/60Hz), DC 80 ~ 270V, DC 24V/48V | |
| Power Consumption | ≤5AC | ||
| Switch Input | Dry Contact Mode | ||
| Relay Output | Contact Capacity (Resistive): AC 5A/250V, DC 5A/30V | ||
| Analog Output | DC 4 ~ 20mA, DC 0 ~ 20mA, etc., Load ≤350Ω | ||
| Communication | RS485 Interface, Modbus-RTU Protocol | ||
| Protection Grade | Front Panel IP64, Rear Panel IP20 | ||
| Working Temperature | -40℃ ~ 70℃ (LED) | ||
| Relative Humidity | -40℃ ~ 85℃ (LED) | ||
| Absolute Ability | Power Supply, Input, Output≥AC2KV | ||
| Altitude | ≤2500m | ||

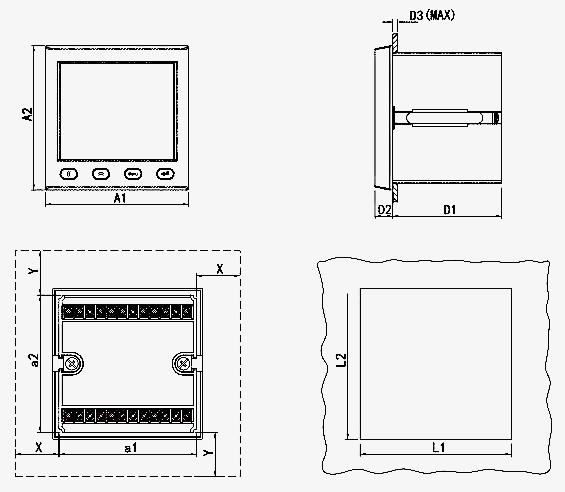

Dimensions (Unit: mm)
| Type | Panel Size (A1 x A2) |
Installation Size (a1 x a2) |
Cut-out Size (L1 x L2) |
Installation Depth (D1) |
Panel Thickness (D2) |
Installation Screen Thickness (D3 max) |
Reserved Size | |
| Horizontal (X) |
Vertical (Y) |
|||||||
| Type 2 | 120 x 120 | 110 x 110 | 111 x 111 | 55.5/76 | 15 | 5 | 10 | 20 |
| Type 3 | 83 x 83 | 75 x 75 | 76 x 76 | 75 | 12.5 | 5 | 10 | 20 |
| Type 5 | 96 x 48 | 90 x 43 | 91 x 44 | 68.5/82 | 10.5 | 10 | 40 | 20 |
| Type 9 | 96 x 96 | 90 x 90 | 91 x 91 | 75/98 | 13.5 | 10 | 40 | 20 |
| Type A | 74 x 74 | 66 x 66 | 67 x 67 | 75/90 | 12.5 | 5 | 10 | 20 |
| Type D | 48 x 48 | 44.5 x 44.5 | 45 x 45 | 89 | 9.5 | 5 | 40 | 20 |
Q1: What is a digital panel meter?
A1: The digital panel meter displays the voltage, current value or other standard signal transmission display value in the electrical circuit by digital direct reading; the product has the advantages of good stability, strong anti-interference, high cost performance, and the product is small in size and can be directly replaced original pointer meter.
Q2: What are the functions of digital panel meters?
A2: Digital panel meters can be categorized by type, size, style or other criteria. Understanding the functions of the digital panel meter is an important factor in choosing it. Commonly used functions are ammeters, voltmeters, frequency meters, power meters, energy meters, counters, timers, thermometers, process meters and controllers.
Q3: What are the advantages of digital panel meters?
A3: The digital panel meter directly displays the measured value or deviation value by digital quantity, which is clear and intuitive, easy to read, and will not produce parallax. Digital panel meters generally use large and medium-scale integrated circuits, with simple circuits, good reliability and good shock resistance. Because of the common modular design method for instruments, that is, digital panel meters are mostly composed of a small number of modular circuits with separated functions, so they are conducive to manufacturing, debugging and maintenance.
