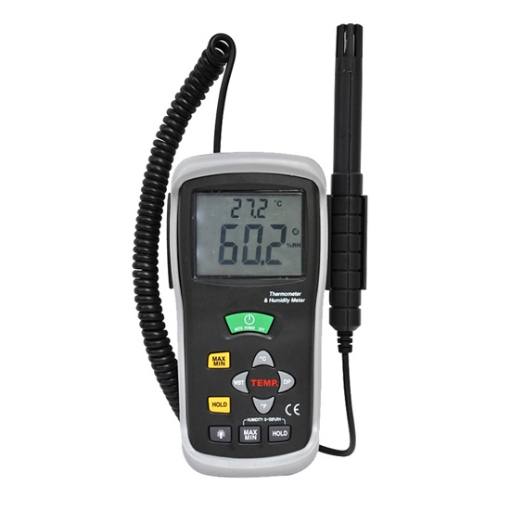

Dew Point Temperature Meter with Wet Bulb

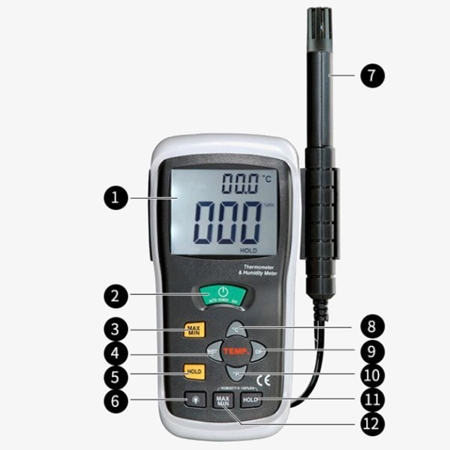

Structure Diagram

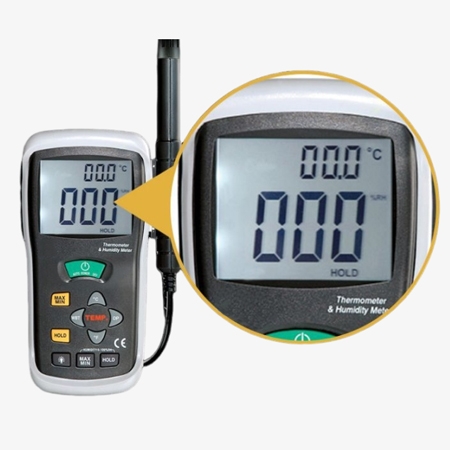

1. LCD Display
2. ON/OFF Switch
3. MAX/MIN Temperature
4. Wet Bulb Temperature Key
5. Temperature Hold Key
6. Backlight Key
7. Temperature and Humidity Sensor
8. Celsius Temperature Unit Key
9. Dew Point Temperature Key
10. Fahrenheit Temperature Unit Key
11. Humidity Hold Key
12. MAX/MIN Humidity Key

SISCO Dew Point Meter DT625 User Manual

Q1: What factors affect the measurement accuracy of the dew point meter?
A1: The accuracy and stability of the dew point meter not only depend on the performance of the instrument itself, but are also affected by environmental conditions, its own factors, and the operator. Understanding these influencing factors is very important for the correct use and maintenance of dew point meters, and for improving measurement accuracy.

• Environmental conditions have a significant impact on the measurement accuracy of a dew point meter. These include factors such as temperature, humidity, and air pressure. The influence of temperature on the dew point meter is mainly reflected in the different saturated water vapor pressures of air at different temperatures, so measurements need to be carried out under constant temperature conditions. Humidity is an important indicator of the moisture content in the air. When the moisture in the air reaches saturation, the humidity reaches 100%. Changes in air pressure also affect moisture status, so constant air pressure conditions need to be maintained during measurements.
• The performance of the instrument itself also has a great impact on measurement accuracy. For example, sensor sensitivity, response time, and stability are all key factors that affect measurement accuracy. In addition, the calibration status of the instrument will also affect the measurement results. Regular calibration is the key to ensuring measurement accuracy.
• The operator's operation method will also affect the measurement results of the dew point meter. For example, during use, severe vibrations and collisions should be avoided to avoid damaging the precision components inside the equipment. During measurement, appropriate gas flow should be controlled to avoid measurement errors caused by excessive flow.

Q2: How often should a dew point meter be calibrated?
A2: As an important humidity measurement device, the calibration cycle of a dew point meter is crucial to ensure the accuracy and reliability of the measurement data. According to the search results, the calibration cycle of a dew point meter varies according to different usage and environmental conditions. Generally, it is recommended that users check the dew point meter every two years, while in some cases (such as when the gas path is severely contaminated), it is recommended to check it every six months. Dew point transmitters should be calibrated once a year. Proper calibration and maintenance can greatly improve the measurement accuracy and stability of the dew point meter, thereby ensuring the quality and safety of related industrial processes.

Q3: How to clean the probe of a dew point meter?
A3: How often the probe of a dew point meter needs to be cleaned depends on a variety of factors, including the environment in which it is used, the frequency of use, the cleanliness of the sample gas, and the specific requirements of the instrument. Here are the steps to clean the probe.
Before you begin cleaning, make sure the device is turned off and disconnected from the power supply. If possible, disassemble easily removable parts.
Use a soft cloth and a mild cleaner (such as diluted detergent) to clean the device housing. Avoid using any corrosive substances that may damage the surface or penetrate into the interior of the device.
The probe is the most critical part of the dew point meter. According to the manufacturer's instructions, some probes may allow for gentle wiping with a soft cloth. If the probe has special cleaning requirements (such as specific cleaning solvents), follow these guidelines.
If the dew point meter is equipped with an air filter, check whether the filter needs to be cleaned or replaced.
After cleaning and drying all parts, reassemble the device and perform a simple functional test to ensure that everything is working properly.

Tips: Data collection method of dew point meter

The data collection method of the dew point meter involves the following steps:

1. Before starting data collection, make sure that the dew point meter has completed the initialization and calibration process, and then connect the dew point meter to the power adapter or power it through the battery to ensure that it is fully charged.
2. According to the measurement requirements, set the measurement unit, temperature mode, target dew point, and other parameters.
3. Place the dew point meter in the environment to be tested, wait for a period of time, and read the measurement results of dew point temperature or relative humidity.
4. Display the measurement results on the LCD screen of the dew point meter. If the dew point meter has a data recording function, data can be recorded and stored.
5. Use data analysis tools such as Excel, SPSS, etc. to process and analyze the collected data
