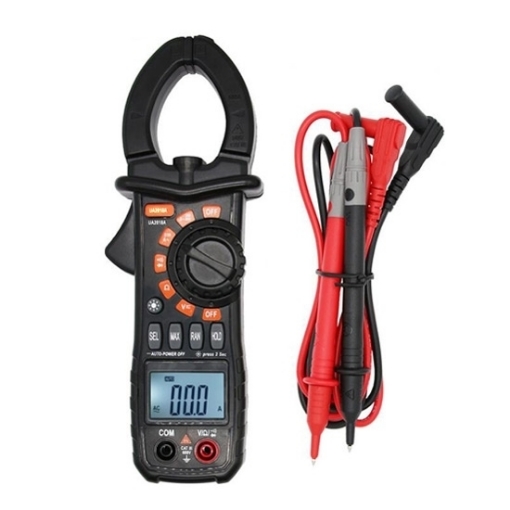

Digital clamp meter with AC current range 0-600A, TRMS function, maximum jaw size 36mm, 4-digit display, maximum value 1999, low light environment can be opened in flashlight mode to improve work efficiency.
Backlight function
- Press the HOLD button to turn on the backlight function after two seconds for clearer reading.
- For a low-light working environment or at night, turn on mA/A and press HOLD for two seconds to turn on the LED flashlight.
Switch buzzer test
- Turn on the switch or press the FUNC button, the instrument emits a bee sound (< 0.25s).
- Full range, overload protection.
Application
The clamp meter is one of the necessary test tools in daily maintenance work, mainly used to test voltage, current, frequency and other related parameters, requiring its high test resolution, test accuracy, and more test functions. Applications mainly include industrial control, industrial equipment, commercial, industrial, and residential electrical systems, and HVAC.
| Basics | Model | SISCO-UA2018A | |
| Weight | 530g | ||
| Size (L*W*H) | 210*78*35mm | ||
| Display | 4 digit LCD display | ||
| Maximum display value | 1999 | ||
| Power supply | DC 4.5V, 3 AAA batteries | ||
| Maximum jaw opening size | 36mm | ||
| Woring environment | Temperature: 5℃~35℃ (41℉~95℉), relative humidity:＜75% | ||
| Storage temperature | -10℃~+50℃ (14℉~122℉) | ||
| Accessories | A pair of test probes, a user manual, 3 AAA batteries | ||
| Functions | Item | Range | Accuracy |
| AC current | 600A | ±(3.0%+10 digits) | |
| DC voltage | 600V | ±(0.8%+2 digits) | |
| AC voltage | 600V | ±(1.0%+10 digits) | |
| Resistance | 20MΩ | ±(1.2%+2 digits) | |
| Special functions | TRMS | True RMS measurement for sine wave signal | |
| Diode test | Display forward voltage value of diode | ||
| On-off buzzer | Continuity test buzzer | ||
| Data hold | Hold the reading when taking a measurement | ||
| Automatic power off | Automatic power off when 15 minutes no operation | ||
| Overload protection | Overload protection for 100% range | ||
| Range selection | Manual range selection | ||
| Backlight | Backlight for LCD display | ||
| Inspection light | Inspection light for clamp operation | ||
| LED torch | A LED torch for night lighting | ||
Q1: What is a clamp meter?
A1: A clamp meter is a device used to measure current conveniently and safely. It is very efficient to measure current without using test leads. To measure
current, all you have to do is place a wire in the jaws of the clamp meter. When current flows through a conductor, a magnetic field is created. The device helps to detect magnetic fields so that it can provide corresponding current readings, the sisco clamp meter can also be used as a multimeter.
Q2: How a clamp meter works?
A2: Clamp meters work on the principle of magnetic induction and measure alternating current without contact. Like every conductor, the current flowing
through the wire creates a magnetic field. Hall effect sensors detect the magnetic field produced by the current, which in turn creates a small voltage
across the sensor.
Q3: How often does a clamp meter need to be calibrated?
A3: A clamp meter typically needs to be calibrated annually to ensure it continues to measure within sisco's specifications.
Tips: How to use a clamp meter to measure AC/DC voltages?
It is important to note that there is a risk of electric shock. When measuring high voltages, extreme care should be taken to avoid electric shock. Do not attempt to use this clamp meter on voltages higher than DC/AC 600V rms.
- Press the measurement function selection key to DC or AC voltage measurement.
- Connect the black lead to the COM probe socket and the red lead to the INPUT probe socket.
- Read the measured value from the LCD. The polarity display will show the polarity of the terminal to which the red test is connected.
